9.12.4Touch panel ASSY

(1) Disconnect the touch panel flat cable from the key PCB ASSY.

(2) Remove the touch panel ASSY from the panel unit.

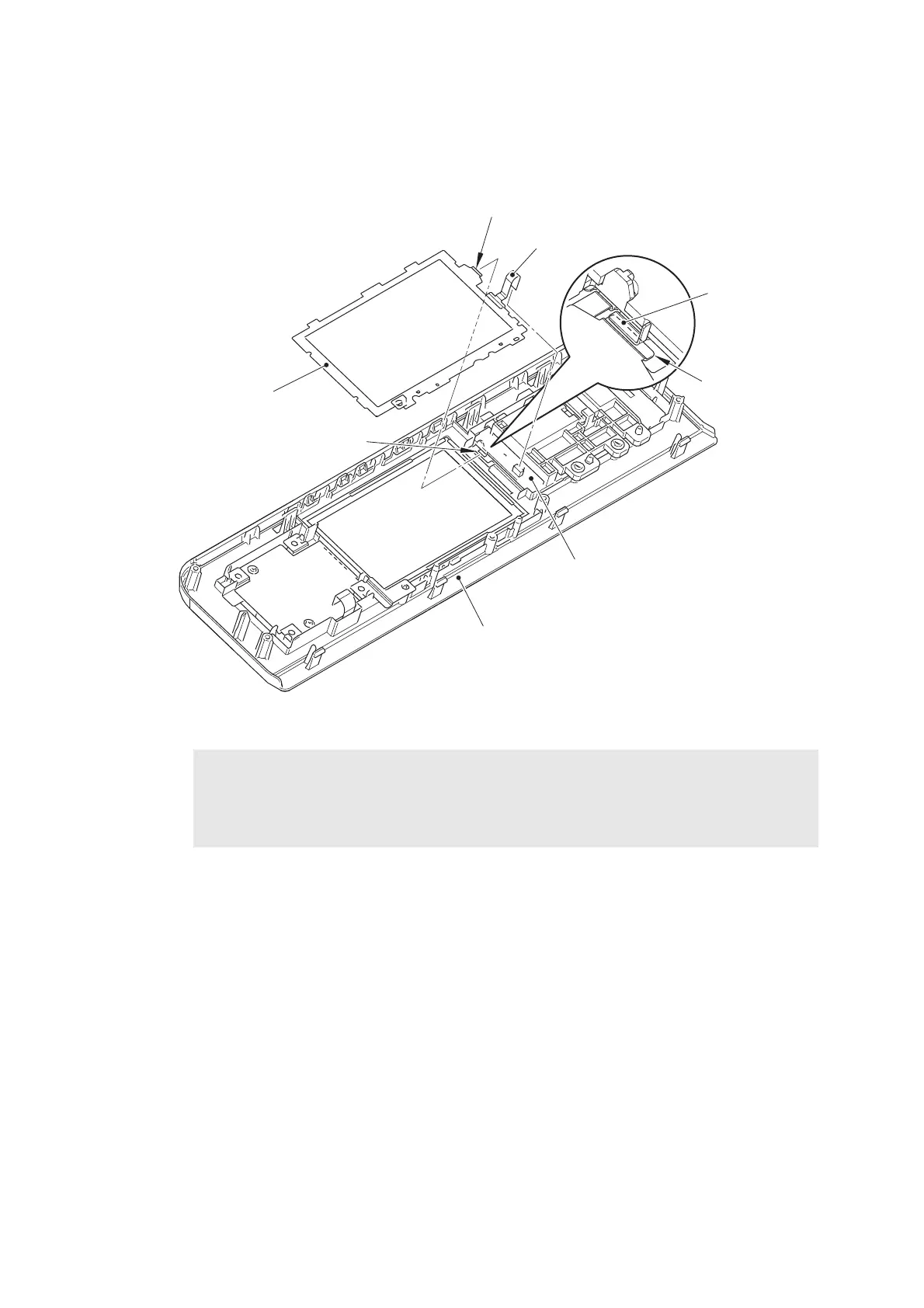

Fig. 3-56

Assembling Note:

• When assembling the touch panel ASSY, put the section A under the plate.

• If you replaced the touch panel ASSY, refer to “4. IF YOU REPLACE THE LCD PANEL

ASSY OR PANEL PCB” in chapter 4 and configure the setting.

Touch panel flat cable

Key PCB ASSY

Panel unit

Touch panel ASSY

Plate
