9.43 MP paper empty sensor PCB ASSY / MP paper empty

actuator 1 / MP paper empty actuator 2

(1) Remove the five taptite bind B M4x12 screws. Remove the main frame R from the paper

feed frame ASSY, and pull out the low-voltage power supply harness from the hole of the

main frame R.

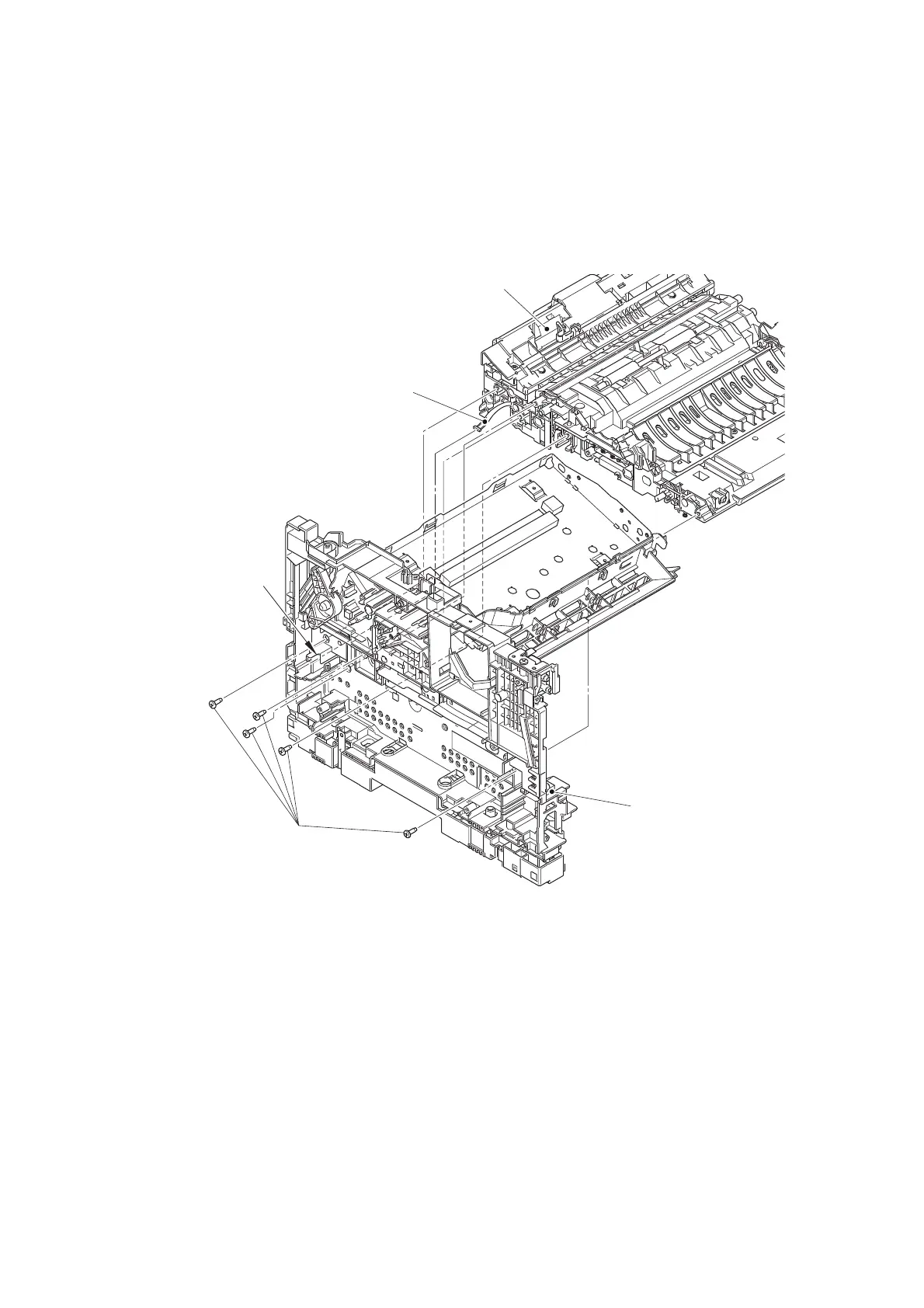

Fig. 3-116

Taptite bind B M4x12

Main frame R

Low-voltage power supply harness

Hole

Paper feed frame ASSY
