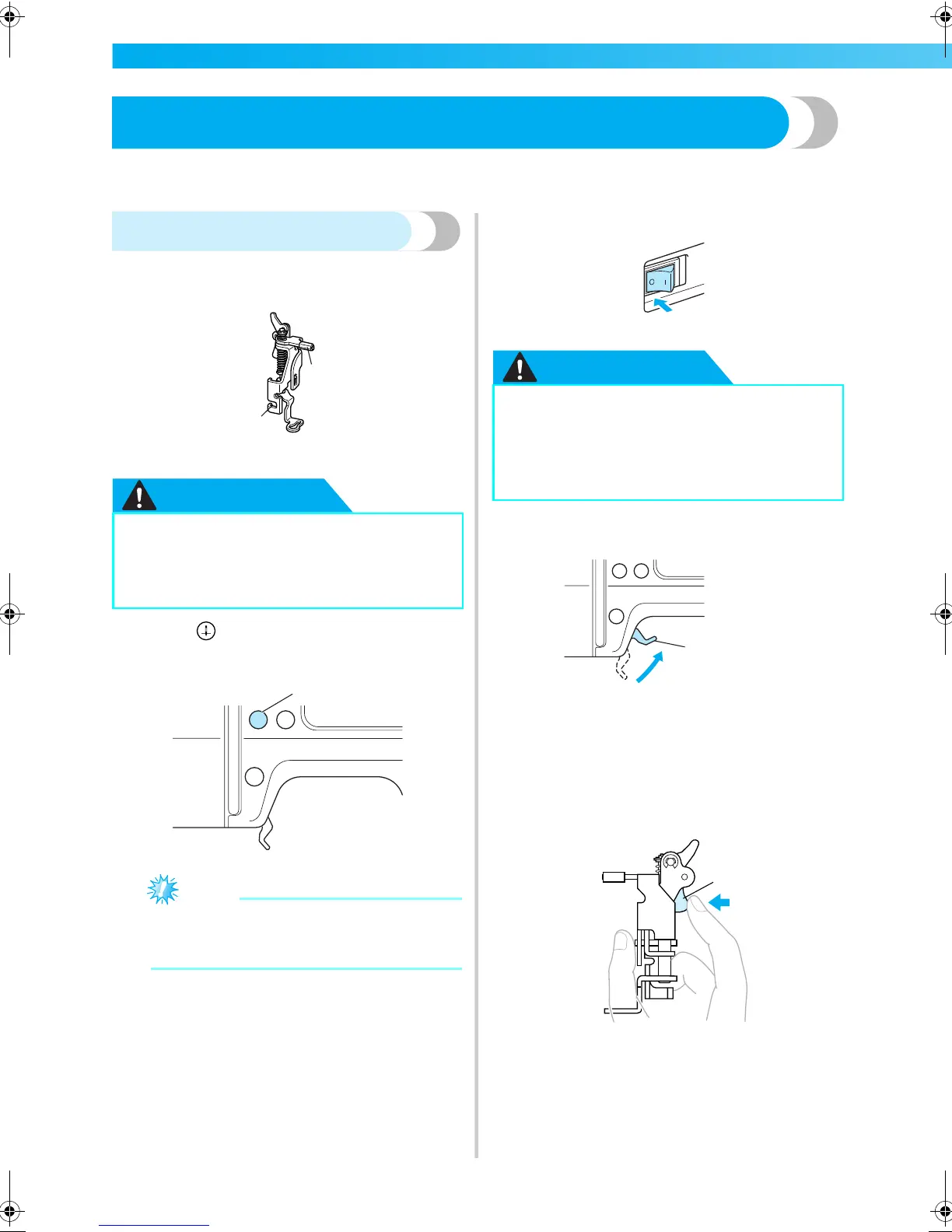

Attaching the Embroidery Foot
This section describes how to attach the embroidery foot "Q".
Attaching the embroidery foot
If you need to replace the embroidery foot, attach the
embroidery foot "Q" as follows.
a Embroidery foot bar
b Caught by the presser foot holder screw
CAUTION
a
Press (Needle position button) once or
twice to raise the needle.
a Needle position button
Note
z The needle is correctly raised when the mark
on the handwheel is at the top. Check the
handwheel mark is at the top position.
b
Turn off the machine.
CAUTION
c
Raise the presser foot lever.
a Presser foot lever
d
Hold the embroidery foot "Q" with your right
hand, as shown.
Hold the embroidery foot with your index
finger wrapped around the lever at the back of
the foot.
a Lever
● Always use the embroidery foot "Q" when
embroidering. If the wrong embroidery
foot is used, the needle may hit the
embroidery foot and bend or break.
a
b
a
z Before attaching the embroidery foot, be
sure to turn off the machine. Otherwise,
injuries may occur if one of the operation
buttons is accidentally pressed and the
machine starts embroidering.
a
a
