Brother PT-D600 Service Manual

II - 14
[ 3 ] Side Sensor Circuit
The sensor circuit consists of a 5-switch side sensor (SW1 through SW5). Loading a
tape cassette turns on some of those five switches on the side sensor while keeping
other switches off depending upon the ID encoding holes provided in the tape
cassette currently loaded. If an encoding ID hole is closed, the corresponding sensor
switch goes on.
With the states of those sensor switches, the CPU identifies the tape width and ink
ribbon type of the tape cassette, as listed below.

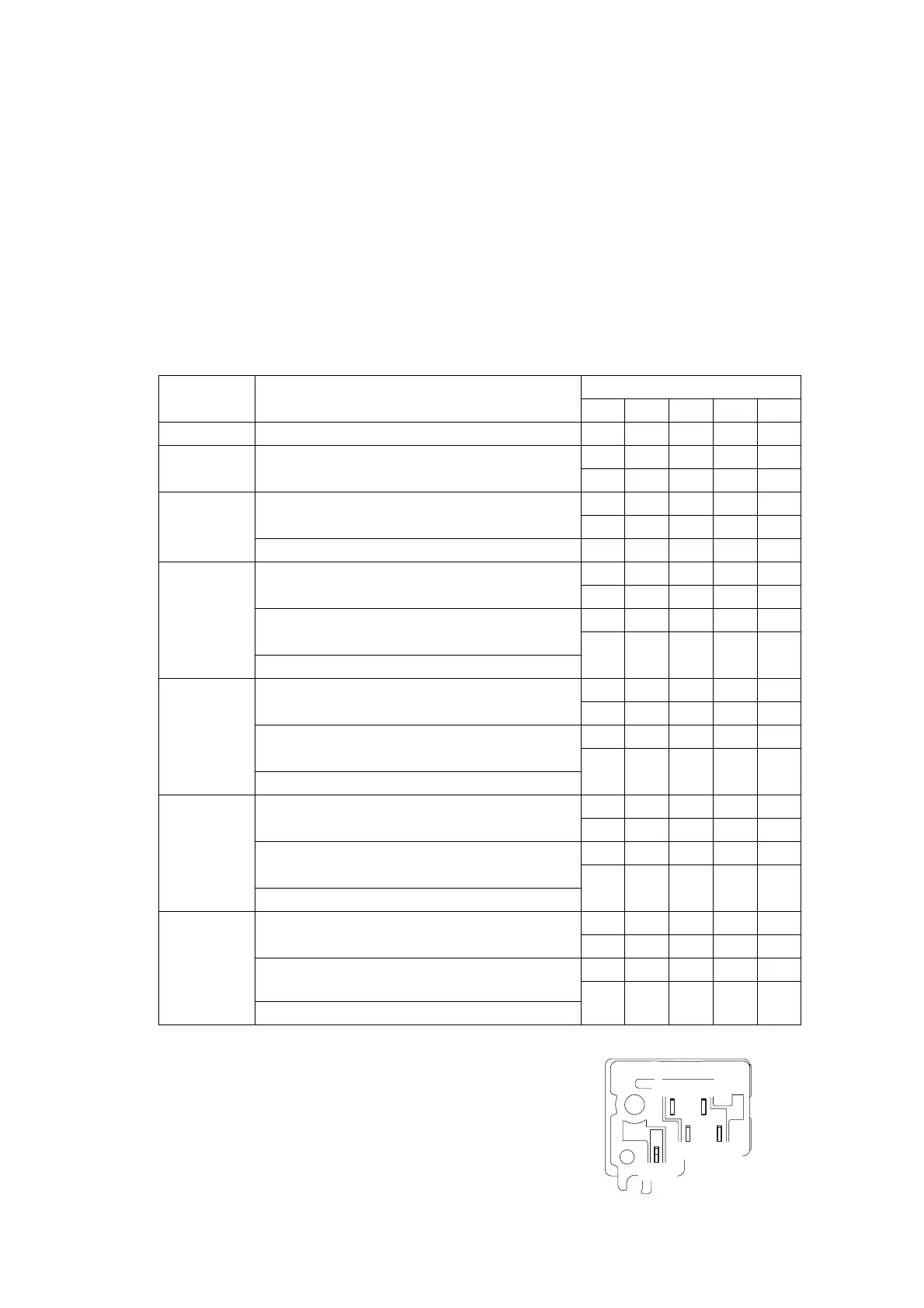

Table 2.2-1 Coded Value for Identifying Tape Cassette Type
Position of the sensor switches
0: Sensor OFF (I.D.hole opened)
1: Sensor ON (I.D.hole closed)
Tape width Cassette type
Sensor No.
SW1 SW2 SW3 SW4 SW5
- No tape cassette loaded 0 0 0 0 0
3.5 mm
Non-laminated tape cassette 1 1 0 1 0
11000
6 mm
Laminated tape cassette 0 0 1 1 0
00100
Heat shrink tube cassette 0 0 0 1 0
9 mm
Laminated tape cassette 0 1 1 1 0
01100
Non-laminated tape cassette 0 1 0 1 0
01000
Heat shrink tube cassette
12 mm
Laminated tape cassette 1 0 1 1 0
10100
Non-laminated tape cassette 1 0 0 1 0
Fabric tape cassette
10000
Heat shrink tube cassette
18 mm
Laminated tape cassette 0 0 1 1 1
00101
Non-laminated tape cassette 0 0 0 1 1
Fabric tape cassette
00001
Heat shrink tube cassette
24 mm
Laminated tape cassette 0 1 1 1 1
01101
Non-laminated tape cassette 0 1 0 1 1
01001
Heat shrink tube cassette
SW5
SW3 SW1
SW4 SW2

Brother PT-D600 Specifications

General

Model	PT-D600
Print Resolution	180 dpi
Max Tape Width	24 mm
Keyboard	QWERTY
Display	Color LCD
Power Source	AC Adapter or 6 AA Batteries
Connectivity	USB
Technology	Thermal Transfer
Tape Width	3.5mm, 6mm, 9mm, 12mm, 18mm, 24mm
Maximum Print Resolution	180 dpi
Maximum Print Speed	30 mm/sec
Cutter	Automatic
Memory	Up to 99 labels
Print Speed	30 mm/sec
Dimensions	201 mm x 192 mm x 86 mm
Weight	960 g (without tape and batteries)
