INSTALLATION INSTRUCTIONS
Read and familiarize yourself with the complete
installation instructions of the remote control
before attempting to install the remote control.
Always test operation of remote control once
installed.
IMPORTANT: Refer to specific outboard instal-
lation instructions for information related to con-
necting remote controls to outboard.

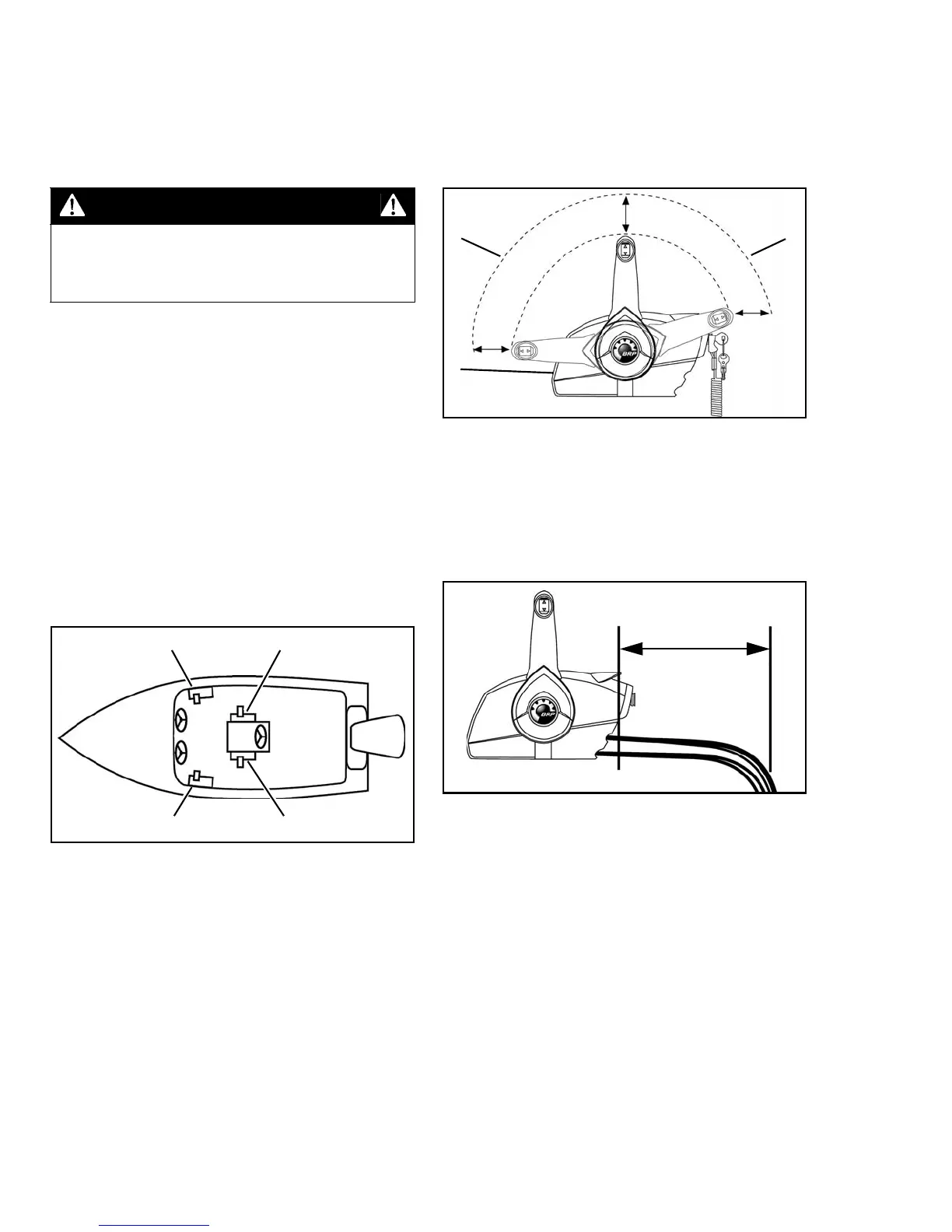

Select Mounting Location
This remote control can be mounted on the
starboard side of the boat, or port side of center
console. In the “starboard side mount” position,
the starboard side of the control is next to the
boat mounting surface.
The control can be mounted on the port side of
the boat, or starboard side of center console if
the control handle is relocated to the opposite
side on control. In the “port side mount”
position, the port side of the control is next to the
boat mounting surface.
Refer to Remote Control Configuration.
IMPORTANT: Remote control MUST be mount-
ed where the key switch is readily accessible. Al-
so, the mounting location must be a flat surface
and must be strong enough to provide a rigid
support. Strengthen mounting surface as neces-
sary.
Place remote control at proposed location and
check clearance around remote control handle at
full throttle in FORWARD and then at full throttle
in REVERSE. There must be at least 4 in. (10
cm) of clearance between the handle and any
part of the boat throughout the control handle
travel.
There must be at least 12 in. (30.5 cm) of clear
space behind the remote control for cable
routing. Control cables must be straight as they
exit the remote control. Allow at least 6 in. (15.2
cm) to the beginning of the first bend of control
cables.
WARNING
Failure to properly install and test remote
control may result in remote control mal-
function and loss of control of boat.
1. Starboard side mount
2. Port side mount
004855
21
12
1. Remote control
2. 4 in. (10 cm) clearance line
004858
1. 12 in. (30.5 cm) clear space
004859
22
1
12 in.
