OUTBOARD RIGGING
EVINRUDE E-TEC 60° V MODELS 115–200 HP
Water Pressure Gauge
To displa y engine water p ressure, in stall a water
pressure hose fitting in the cylin der blo ck as
shown.
Use Pipe Sealant with Teflon on the threads of the
hose fitting. Refer to installation instructions sup-
plied with gauge.
Route the wa ter pressure hose aroun d the st ar-
board side of the powerhead along the same path
as the battery cables.
For an I-Command wate r pressure displa y, se v-
eral water pressure sensor kit s are available.
Refer to the Evinrude/Johnson Genuine Parts
and Accessories catalog.
To send wat er pre ssure da ta to the EMM, alo ng
with an I-Command d isplay, in stall a water pres-
sure transducer kit.
• Use 50 p si W ater Pr essure Transducer Kit,
P/N 5008640 on 20 12 an d newer 60 ° V4/V6
models.
• Use 30 p si W ater Pr essure Transducer Kit,
P/N 5008300 on 201 1 and older 60° V4/V6
models.
Connect the transducer lead to the e ngine wiring
harness connector.

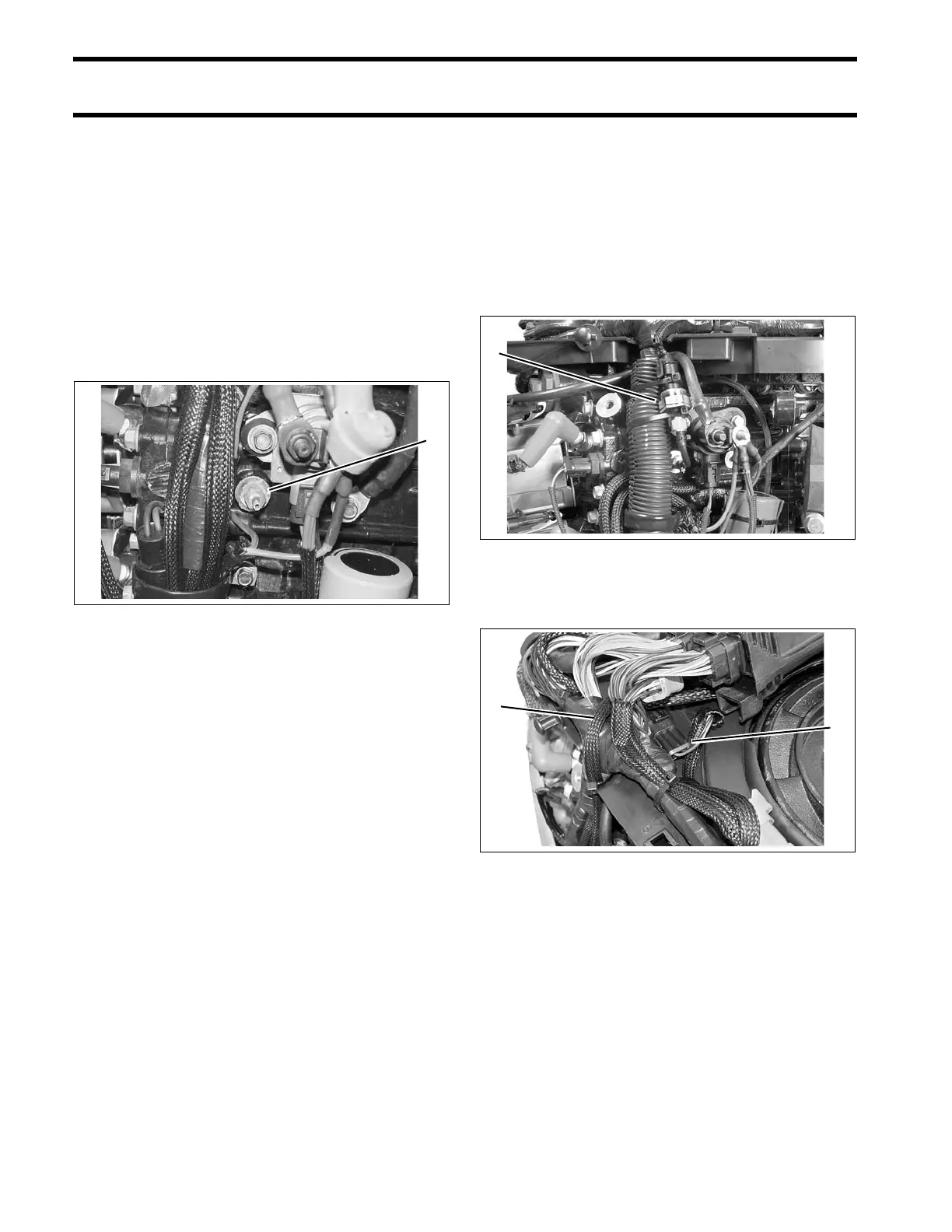

1. Water pressure hose fitting 004959
1. Water pressure transducer 008129
1. Water pressure transducer lead
2. Engine harness connector
004962
