72
OUTBOARD RIGGING
EVINRUDE E-TEC MODELS 15–30 HP
Adjust the shif t ca ble trunnion to align with the
center of the trunnion block.
Install cable retainer and screw. Tighten screw to
a torque of 60 to 84 in. lbs. (7 to 9.5 N·m).
With remote control lever in NEUTRAL, pull firmly
on throttle cable casing to remove slack.
With engine throt tle lever against stop, place the
cable trun nion in to th e u pper anchor p ocket a nd
adjust the trunn ion nut so the ca sing fits onto the
throttle lever pin.
IMPORTANT: Move control h andle t o F OR-
WARD and pull back slowly to NEUTRAL. Make
sure the engine throttle lever is against the stop. If
not, remove slack by adjusting cable trunnion.
Install cable retainer and screw. Tighten screw to
a torque of 60 to 84 in. lbs. (7 to 9.5 N·m).
Install washers and ret ainer clip s o n sh ift lever
and throttle pins. Refer to Cable Retainer Clip
Installation on p. 51.

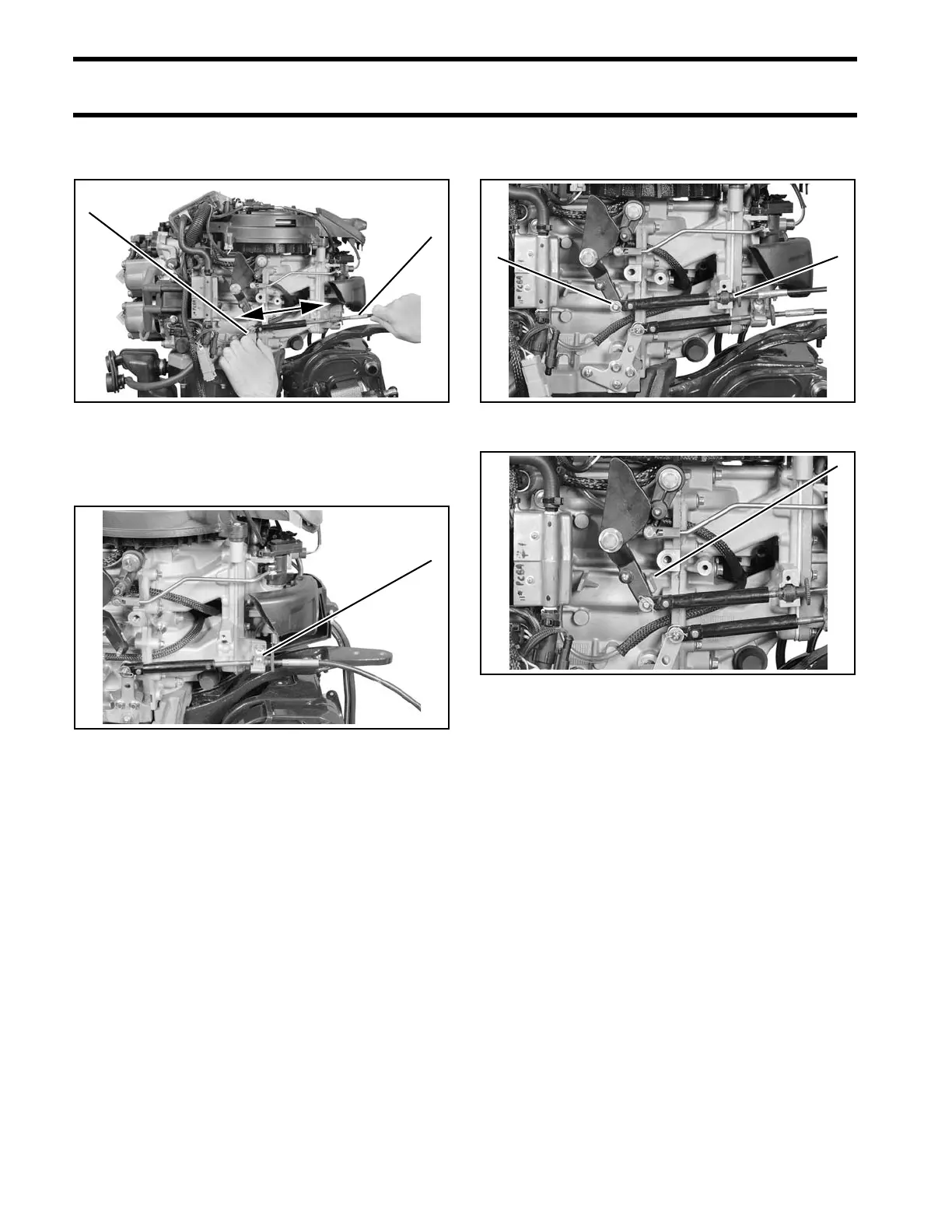

1. Shift linkage
2. Shift cable
007215
1. Cable retainer 007121
1. Throttle lever pin
2. Trunnion nut
007217
1. Throttle lever stop 007216
