309

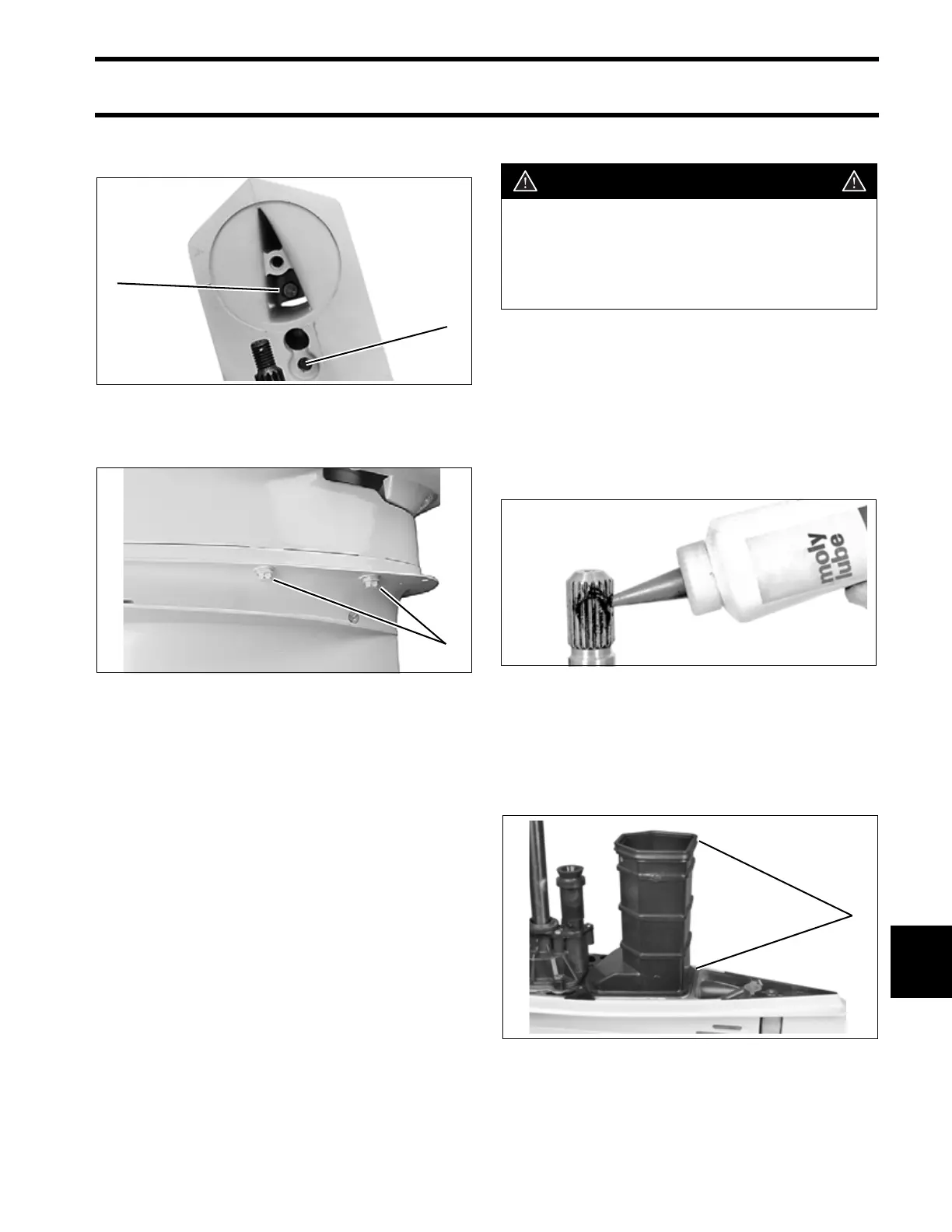

GEARCASE
REMOVAL AND INSTALLATION
12
Remove the forward screw with the washer, and
remove middle screw.
Remove the four gearcase retaining screws.
Remove the gearcase assembly from the exhaust
housing, being careful not to bend the shift rod or
damage the water tube. The lower inner exhaust
housing may come out with the gearcase.
Installation
IMPORTANT: Before installation of gearcase on
motor, shift rod adjustment MUST be checked.
Refer to SHIFT ROD ADJUSTMENT on p. 314.
Coat the driveshaft splines with Moly Lube. DO
NOT coat top surface of the driveshaft because
lubricant may prevent seating of the driveshaft in
the crankshaft.
Apply Adhesive 847 to the lower exhaust housing
seals’ inner surfaces. Position two new seals on
the housing. Apply Triple-Guard grease to the
seals’ outer surfaces and position the housing on
the gearcase.
1. Forward screw
2. Middle screw
COA3139
1. Gearcase retaining screws 001990
1
2
1
WARNING
During service, the outboard may drop
unexpectedly. Avoid personal injury;
always support the outboard’s weight with
a suitable hoist or the tilt support bracket
during service.
30385
TYPICAL
1. Lower exhaust seals
001985
1
