GEARCASE
DISASSEMBLY
12
• Hydrostatic Seal Grooves — Must be in good
condition to help prevent propeller ventilation.
• Gearcase Anodes — If anodes have eroded to
two-thirds their original size, they must be
replaced.
• Drive Shaft — Check splines for visible dam-
age, twisting and wear. Severe spline wear indi-
cates the exhaust housing or gearcase has
been distorted, possibly by impact damage.
• Water Intake Screens — Check for damage
and blockage. If screens cannot be cleaned,
they must be replaced. Different screens are
available and should not be mixed. Refer to cor-
rect model parts manual for listing and descrip-
tion.
Propeller Shaft Bearing
Housing Removal
IMPORTANT: This procedure is for standard
rotation gearcases only. For counter rotation gear-
cases, refer to COUNTER ROTATION on p. 341.
Remove the two screws, washers, and retainers
holding the propeller shaft bearing housing.
Remove wedge, screw, and washer (except “S2”
type).
Remove the propeller shaft bearing housing from
the gearcase using the following:
• Puller body, screw, and handle from Universal
Puller Set, P/N 378103.
• Two 5/16-18 x 11 in. (279 mm) threaded rods,
two large 5/16 in. I.D. flat washers, and two
5/16-18 nuts (obtain locally).

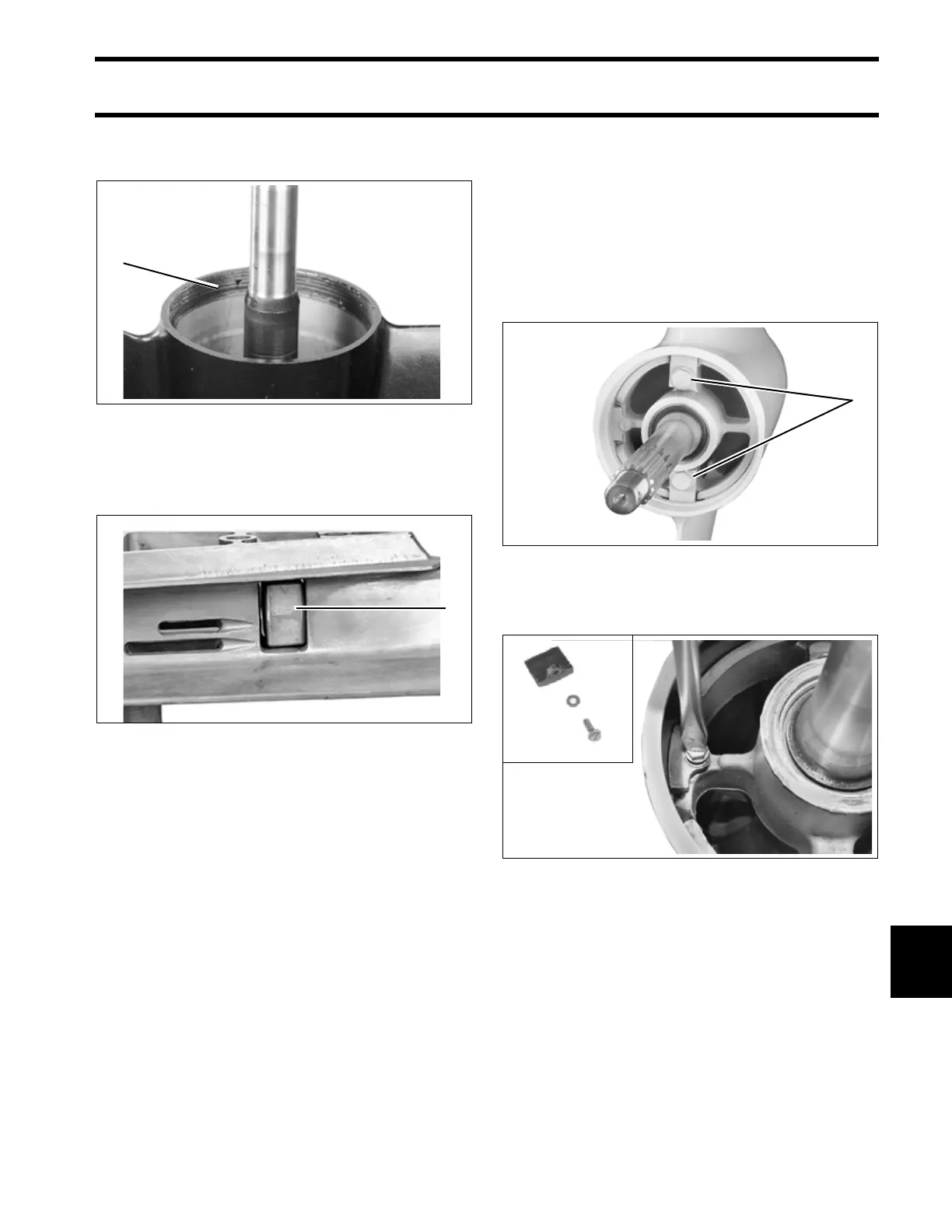

1. Hydrostatic seal grooves 4557
1. Gearcase anode 14161
1
1
1. Retainer tab screws 001989
DSM02291
DSC02361
1
To Next Page
