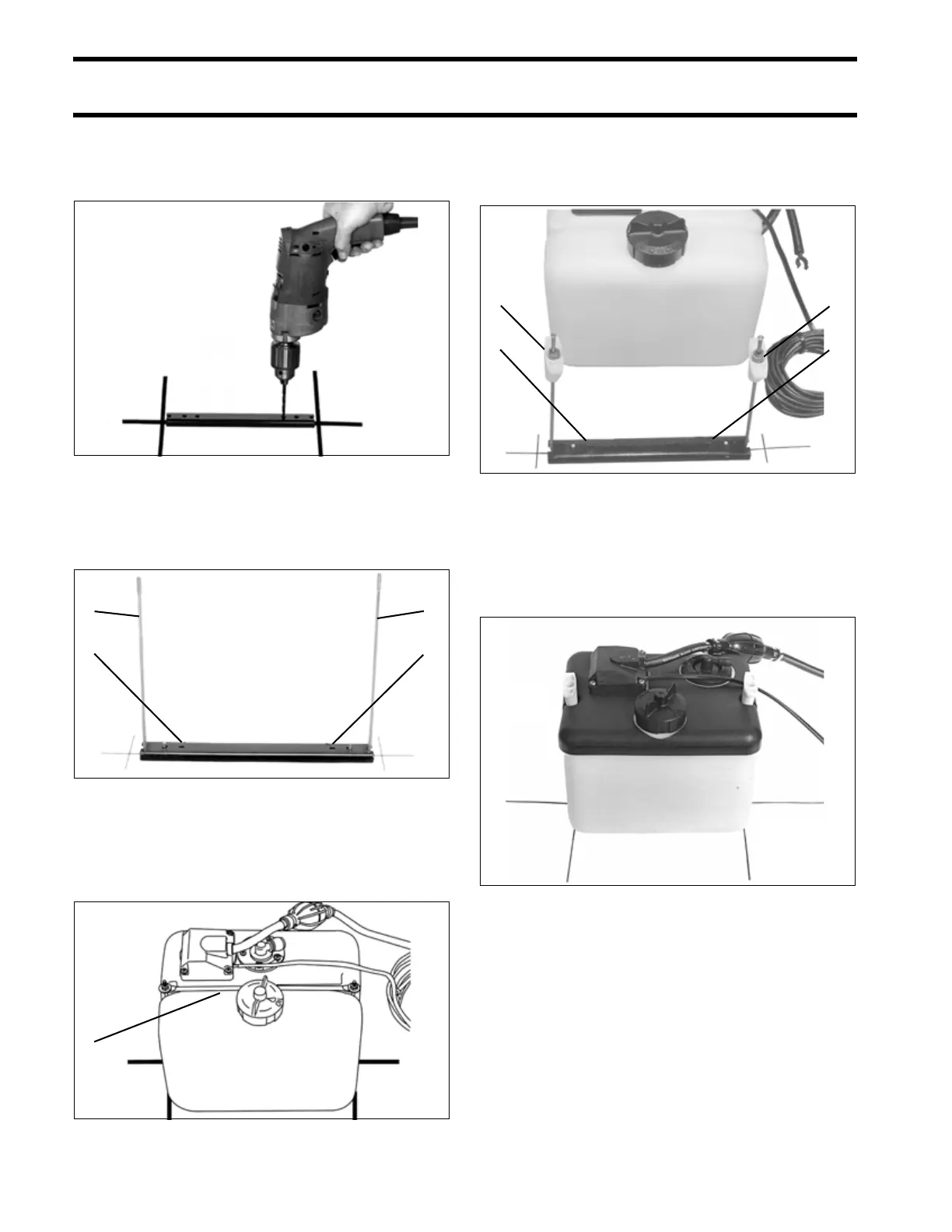

INSTALLATION AND PREDELIVERY
BOAT RIGGING
Place floor bracket on center line between end
lines. Use the inner bracket holes as guides to drill
two 5/32 in. (4 mm) pilot holes.
3 GALLON (11.4 L) TANK
Place rods into floor bracket and secure floor
bracket with lag bolts.
Place oil tank onto floor bracket. Assemble cross-
bar onto hook rods, install flat washers and lock-
nuts. Tighten locknuts to securely hold tank.
1.8 GALLON TANK
Place rods into floor bracket and secure floor
bracket with lag bolts.
Place oil tank onto floor bracket. If cover is not
pre-assembled, route oil supply hose and harness
through the cover and position cover on the oil
tank. Attach spring-loaded rods to cover.
COB5381
1. Rods
2. Lag bolts
22241B
1. Crossbar DRC7418
1
2
1
2
1
1. Rods
2. Lag bolts
22149A
48704
1
2
1
2
