ELECTRICAL AND IGNITION
TILT/TRIM RELAY TEST
TILT/TRIM RELAY TEST
The tilt and trim (TNT) module contains the cir-
cuitry and relays required for power trim and tilt
operation.
The tilt and trim switch provides B+ input to
green/white or blue/white wire of the TNT module.
Operation
The relay activates when B+ input from the switch
is supplied to terminal 86 of the internal relays.
Terminal 87a connects to ground (B–).
Terminal 87 connects to B+.
Terminal 30 connects TNT motor.
Terminals 87a and 30 are connected when relay is
not activated. This supplies ground (B–) connec-
tion to TNT motor.
Terminals 87 and 30 are normally open. B+ is
applied to terminal 30 when relay is activated.
This supplies ground B+ connection to TNT motor.
Refer to Tilt and Trim Module Diagram.
Test Procedure
Make sure red and black wires are connected to
12 V battery power supply.
Set voltmeter to 12 VDC scale. Connect test leads
to terminals “A” and “B” of TNT motor connector.
Use a wire jumper to alternately connect B+ to ter-
minals “1” and “2” of tilt and trim switch connector.
The meter must indicate battery voltage (12 V)
with B+ connected to either terminal.
EXHAUST WATER VALVE
TEST
Disconnect electrical connector from water valve
solenoid. Use an ohmmeter to measure solenoid
resistance.

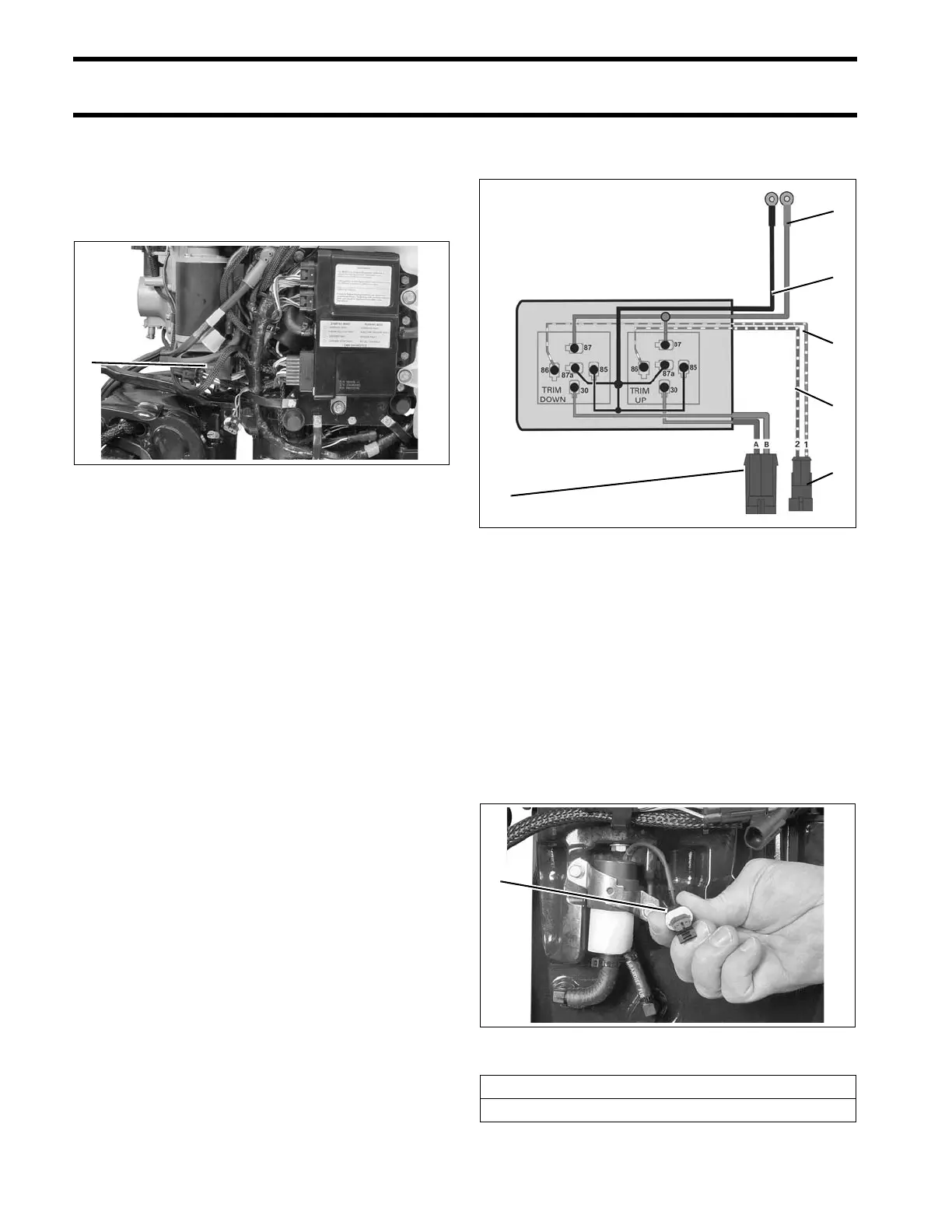

1. Tilt and trim module 006754
Tilt and Trim Module Diagram
1. Green/white wire
2. Blue/white wire
3. B+, red wire
4. B–, black wire
5. TNT motor connector
6. TNT switch connector
002063
1. Water valve electrical connector 004297
Water Valve Solenoid Resistance
295 Ω ± 20 @ 77°F (25°C)
