FUEL SYSTEM
FUEL COMPONENT SERVICING
7
Align the angled edges of both sides of the tool
base with the edge of the fuel injector housing as
shown.
Thread the puller screw into the fuel injector 1/4-
20 threaded hole until it seats.
Turn puller nut clockwise until it contacts the puller
base.
Use a 1/2 inch (13 mm) wrench to continue turn-
ing the puller nut clockwise.
Turn the puller nut until the fuel injector is
removed from the fuel injector housing.
Remove fuel injector puller from injector. Remove
crush ring and O-rings from injector. Inspect and
clean injector filter. Install new crush ring and O-
rings. Lubricate O-rings with STP
†
Oil Treatment.

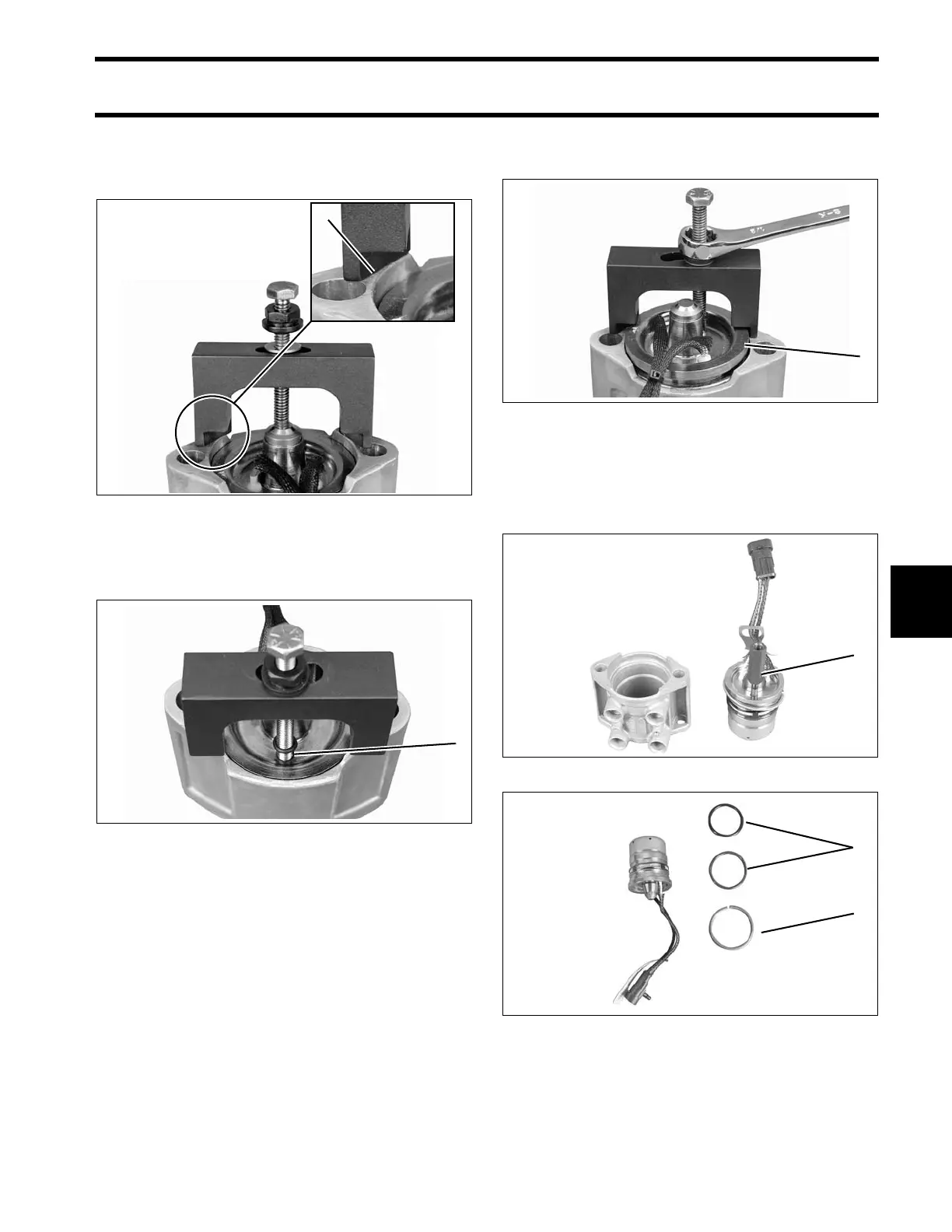

1. Angled edge of the tool base 008796
008797
1. 1/4-20 threaded hole 008798
1
1
1. Fuel injector removed from fuel injector housing 008799
1. Adaptor 002196
1. Crush ring
2. O-rings
002317
1
1
2
1
