281
MIDSECTION

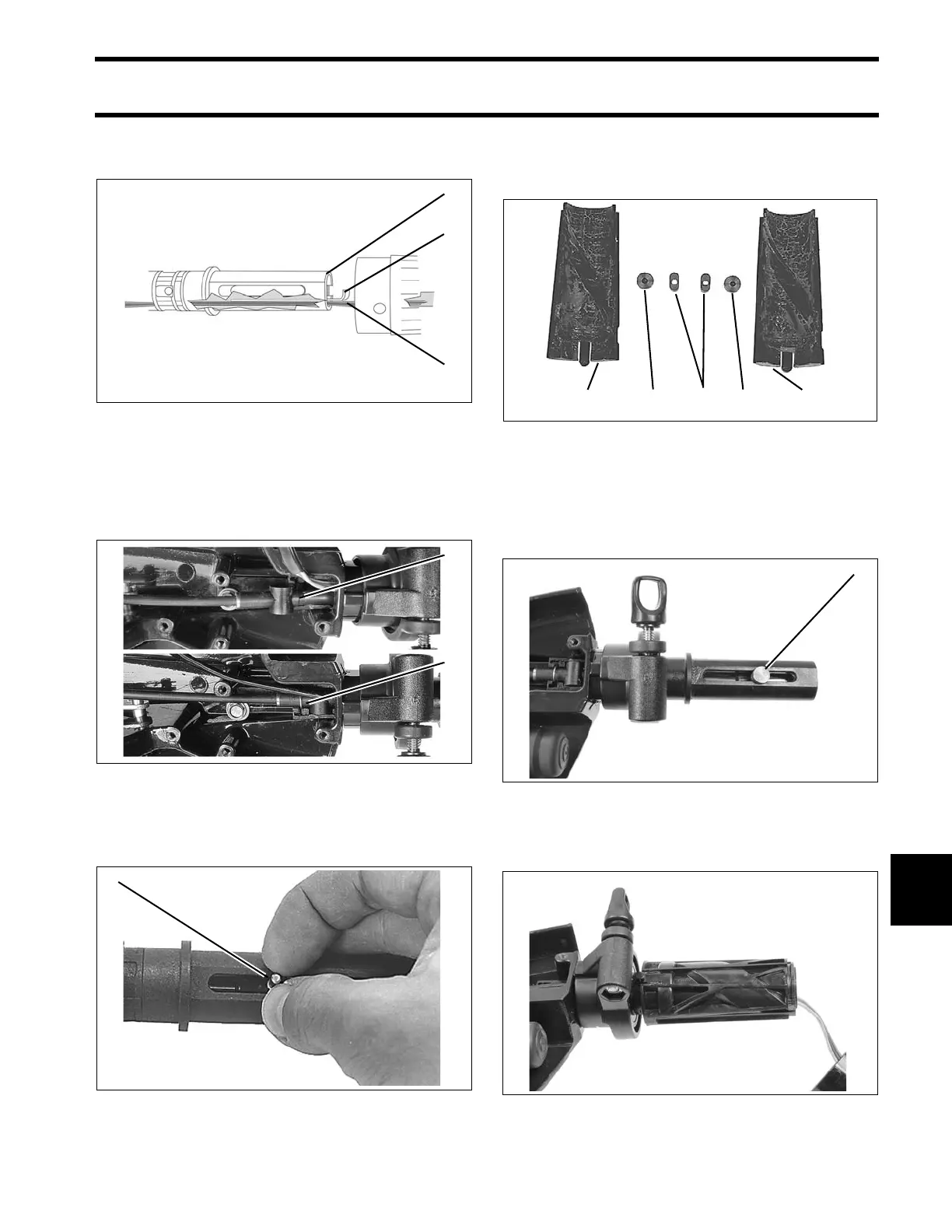

TILLER HANDLE SERVICE – LONG HANDLE
11
Make sure trim switch wiring is NOT twisted
before proceeding.
Install the handle end of the throttle cable. Snap
the throttle cable trunnion into the recess in the
handle. Install the retainer clip.
Push the throttle cable pin through the end of the
throttle cable.
Lubricate end of the pin, guides, rollers, helix
halves, and inner handle guide slot with Moly
Lube.
Place the guides over the roller pin and into the
slots of the inner handle. Place the rollers on the
ends of the roller pin.
Assemble the helix halves on the handle and slide
the grip over the helix.
1. Inner tiller handle
2. Wire guide
3. Trim switch wires
006675
1. Throttle cable trunnion
2. Retainer
006683
1. Pin 006712
1. Helix halves
2. Rollers
3. Guides
COA2674
1. Roller 006670
006718
