Step
Procedure
1
Push the drive gear onto the crankshaft.
NOTE
Due to limited tolerances, it may be difficult to push the drive gear onto the end of
the crankshaft. If necessary, push it on in another position.
Step
Procedure
2
Secure the Hex. nut M30x1,5 with LOCTITE 648 and screw it onto the
crankshaft along with the friction washer VS-30. Tightening torque 300
Nm (221 ft.lb.).

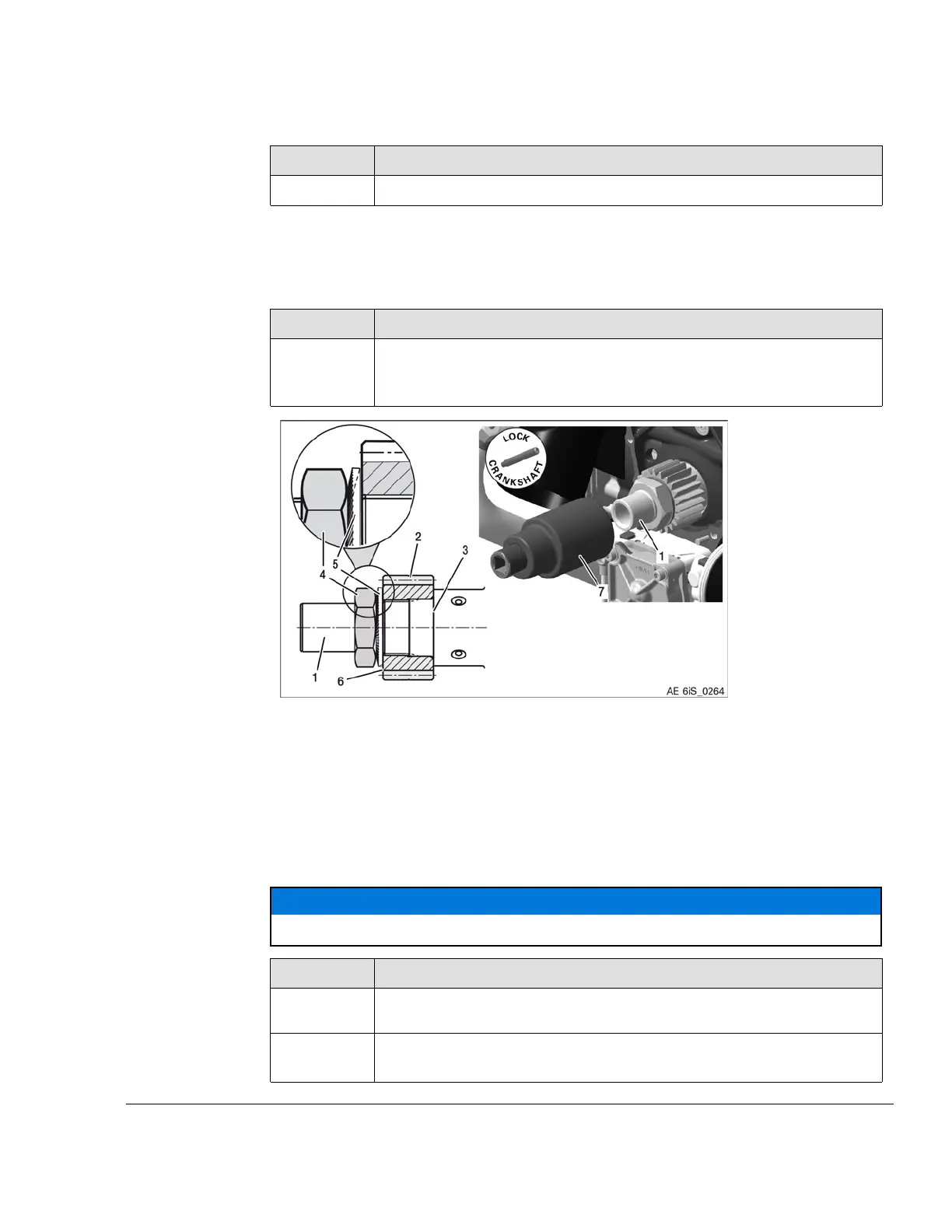

Figure 5.10
1
Crankshaft (power take off side)
2
Drive gear
3 Crankshaft 4 Hex. nut M30x1.5
5 Friction washer VS-30 6 Serial number
7
Socket wrench SW 41 part no. 877445
NOTICE
The sealing surface must be free from dirt and oil.
Step
Procedure
3
Unlock the crankshaft. See Chapter 12-20-00 section Locking/Loosen of
the crankshaft
4
Inspect the run-out. See also Chapter 72-10-00 section Wear limits.
(CS24)
Effectivity: 916 i A / C24
Edition 0/Rev. 1
05–50–00
Page 13
December 01 2023
