BRUEL & KJAER 2203 Instructions And Applications

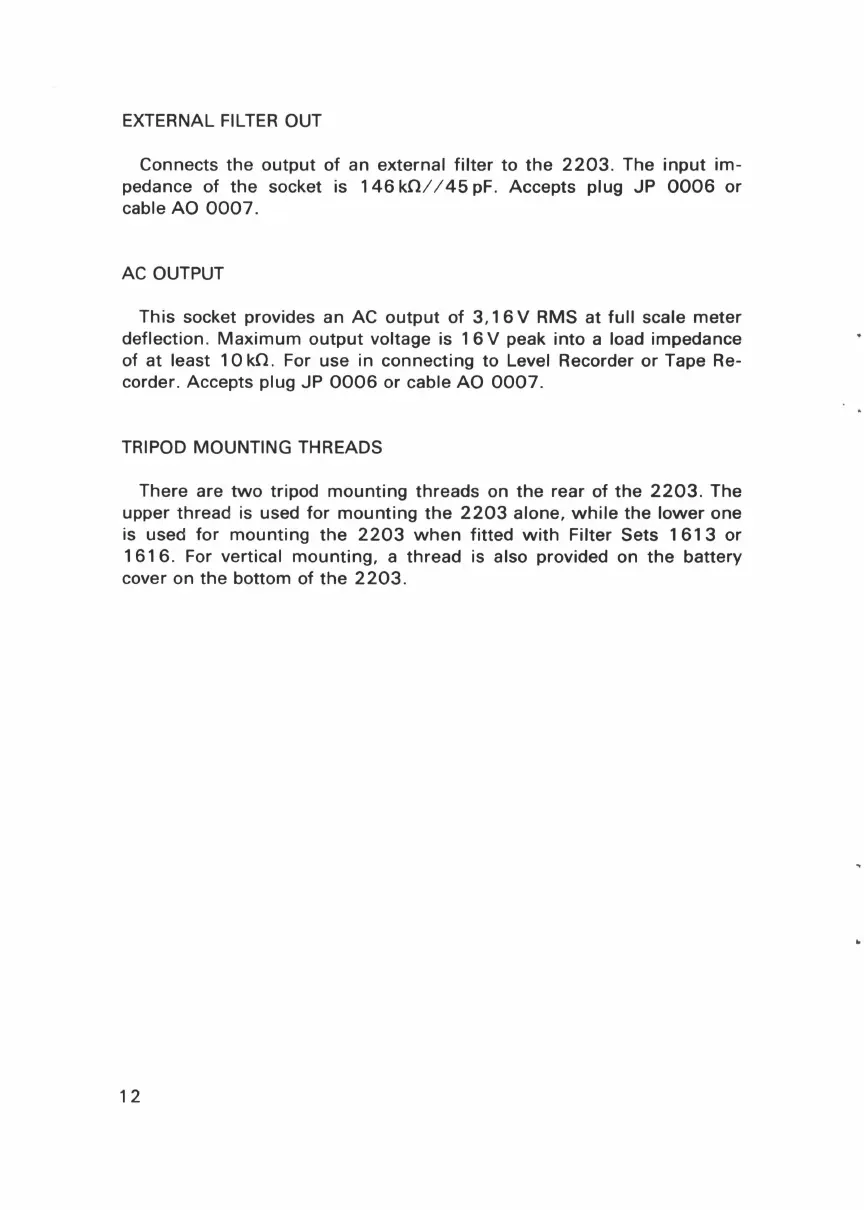

EXTERNAL FILTER OUT
Connects the output of an external filter to the 2203. The input im-
pedance of the socket is 1 46 kO/ I 45 pF. Accepts pi ug JP 0006 or
cable AO 0007.
AC OUTPUT
This socket provides an AC output of 3,16 V RMS at full scale meter
deflection. Maximum output voltage is 1 6 V peak into a load impedance
of
at least 10 kO. For use in connecting to Level Recorder or Tape Re-
corder. Accepts
plug JP 0006 or cable AO 0007 .
TRIPOD MOUNTING
THREADS
There are
two tripod mounting threads on the rear of the 2203. The
upper
thread is used for mounting the 2203 alone, while the lower one
is used
for mounting the 2203 when fitted with Filter Sets 1 61 3 or
1 61 6. For vertical mounting, a thread is also provided on the battery
cover on the bottom of the 2203.
12
