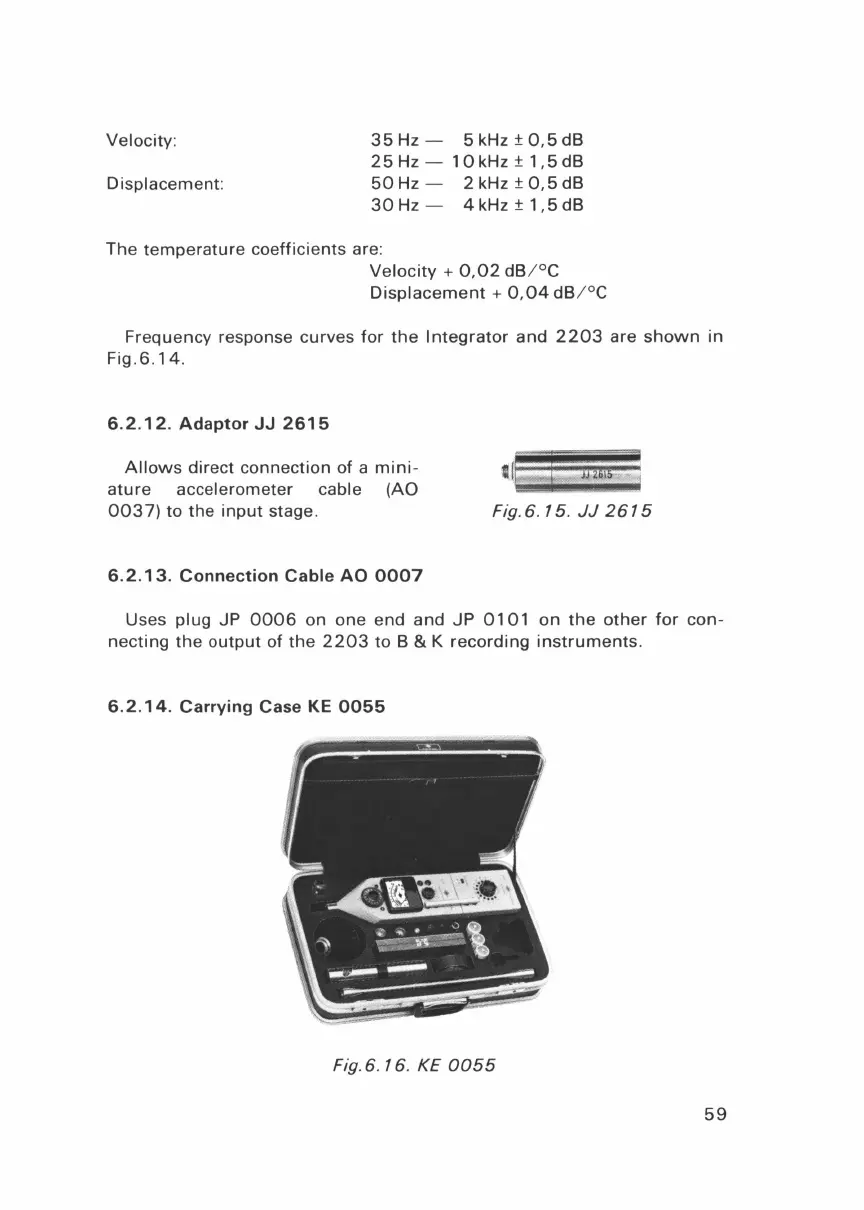

BRUEL & KJAER 2203 Instructions And Applications

Velocity :
Displacement:
35Hz- 5kHz±0,5dB
25Hz- 10kHz± 1,5 dB
50Hz- 2kHz±0,5dB
30 Hz - 4kHz ± 1 , 5 dB
The temperature coefficients are:
Velocity+ 0,02 dB/ °C
Displacement+ 0,04 dB /° C
Frequency response curves
for the Integrator and 2203 are shown in
Fig.6.14.
6.2.12. Adaptor JJ 2615
Allows direct connection of a mini-
ature accelerometer cable (AO
0037) to the input stage.
6.2.13. Connection Cable AO 0007
Fig. 6. 15. JJ 2615
Uses plug JP 0006 on one end and JP 0101 on the other for con-
necting the output of the 2203 to B & K recording instruments.
6. 2. 14. Carrying Case KE 0055
Fig. 6. 16 . KE 0055
59
