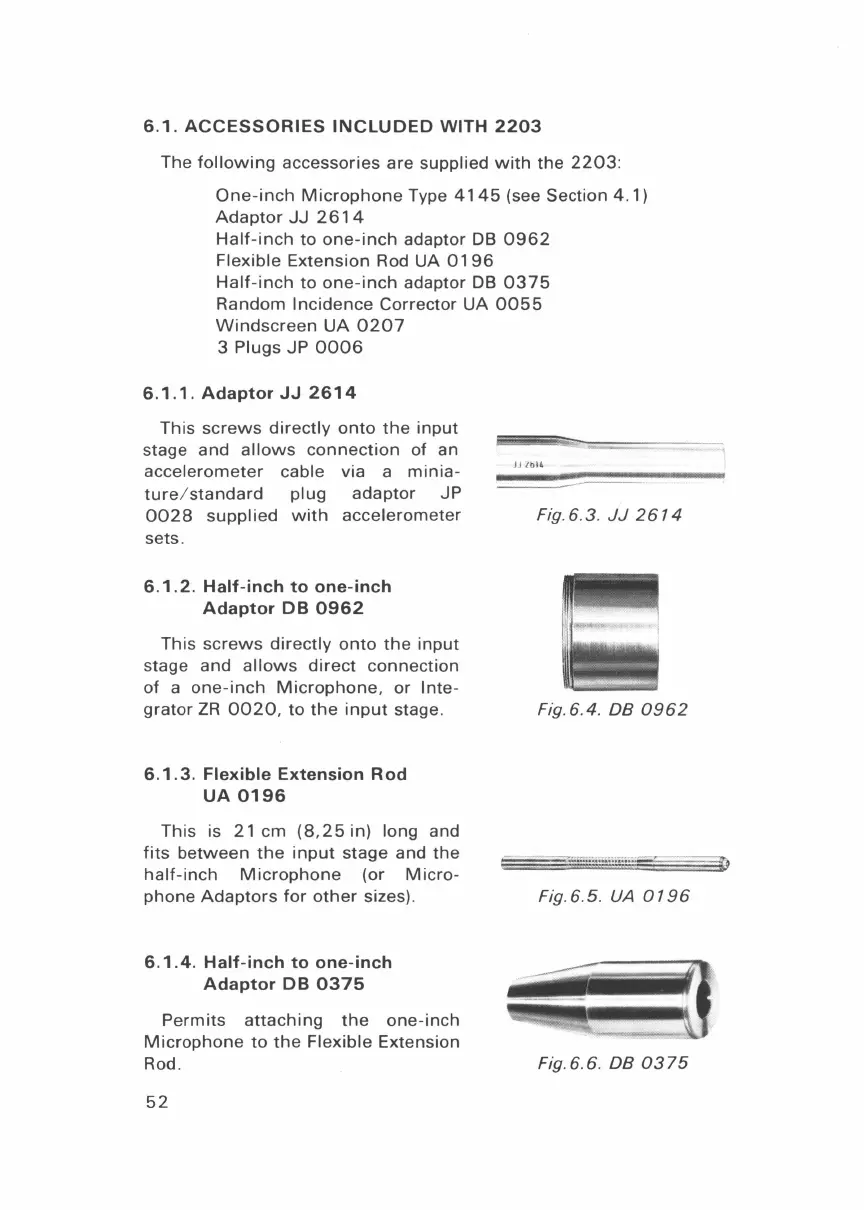

6.1.
ACCESSORIES
INCLUDED
WITH
2203
The
following
accessories
are
supplied
with
the
2203
:
One-inch
Microphone
Type
4145
(see Section
4.1)
Adaptor
JJ
2614
Half-inch
to
one-inch
adaptor DB
0962
Flexible
Extension
Rod
UA
0196
Half-inch
to
one-inch
adaptor DB
0375
Random
Incidence
Corrector
UA
0055
Windscreen
UA
0207
3
Plugs
JP
0006
6.1.1.
Adaptor
JJ
2614
This
screws
directly
onto
the
input
stage
and
allows
connection
of
an
accelerometer
cable
via a
minia
-
ture
/
standard
plug
adaptor
JP
0028
supplied
with
accelerometer
sets.
6.1.
2.
Half-inch
to
one-inch
Adaptor
DB
0962
This
screws
directly
onto
the
input
stage
and
allows
direct
connection
of
a
one-inch
Microphone,
or
Inte-
grator
ZR
0020,
to
the
input
stage.
6.1.3.
Flexible Extension Rod
UA
0196
This
is 21 em
(8,25
in) long and
fits
between
the
input
stage
and
the
half-inch
Microphone
(or
Micro-
phone
Adaptors
for
other
sizes).
6.
1.4.
Half-inch
to
one-inch
Adaptor
DB
0375
Permits
attaching
the
one-inch
Microphone
to
the
Flexible
Extension
Rod.
52
JJ :tbl4
Fig.6.3 .
JJ
2614
Fig.6.4.
DB
0962
G
Fig.6
.5.
UA
0196
Fig.6.6. DB
0375
