Bruker CTX - Page 13

S1 TI
TAN, T
RACER
5, and CTX
User Manual
030.0112.04.0
13 of 67

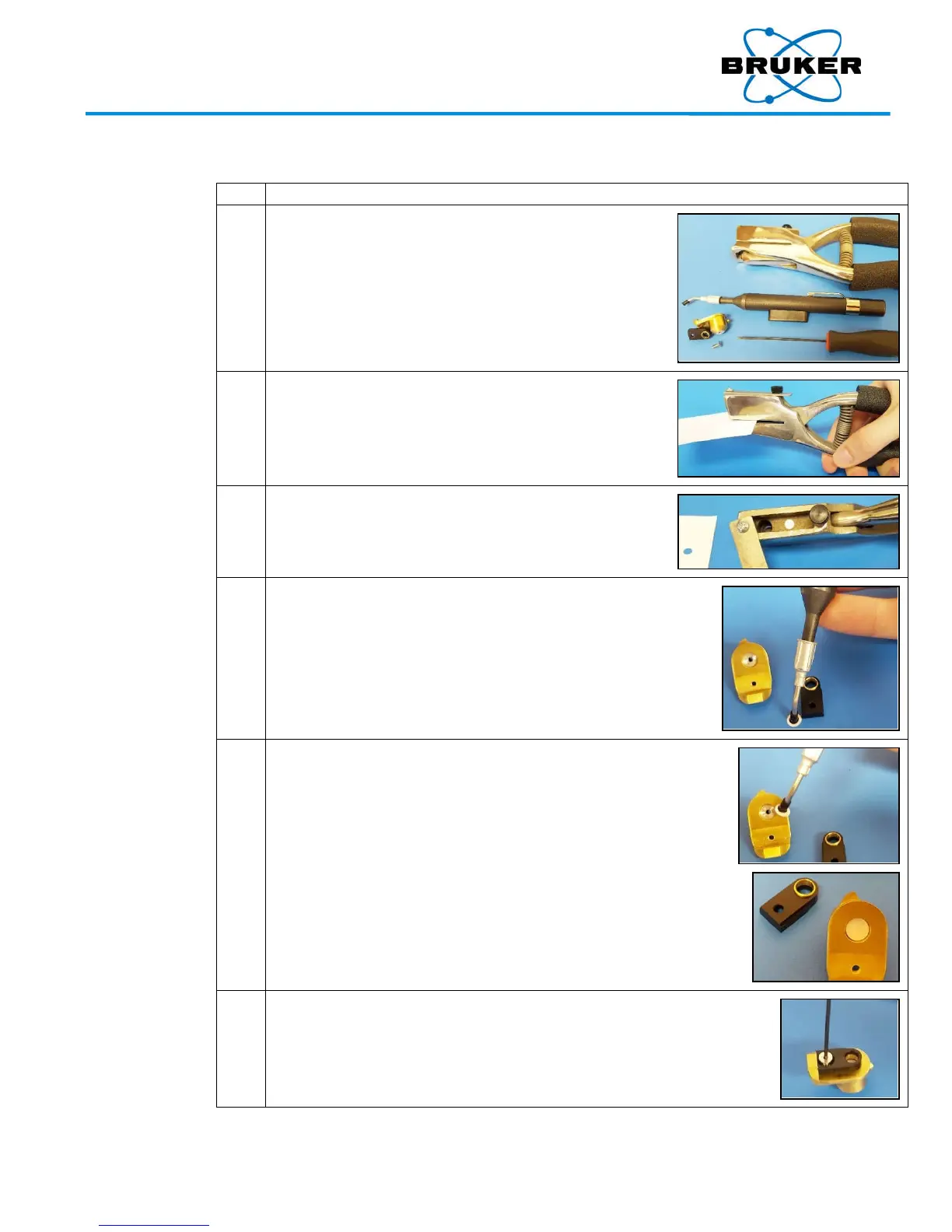

Making a
filter
To make a
custom filter
–
Step
Act
ion
1
Collect nec
essary tools
:
 Hole punch
 Vacuum stick
 0.050 inch hex screwdriver
 Collimator assembly
2
Use the hol
e punch to cut the filter material.
3
Retrieve
the filter piece from the hole punch.
4
Use the v
acuum stick to pick up the filter piece
without touching it.
To operate the vacuum stick –
1. Press and hold the button.
2. Touch the tip to the filter piece.
3. Release the button.
5
Place the filter piece in the collimator. Release the
filter piec
e by pressing the vacuum stick button.
For a multilayer filter, the filter piece with the highest
atomic number must be placed in the collimator last
so it is closest to the X-ray source.
6
Screw
the filter holder onto the collimator.
