Brush Bandit 2000XP - Page 74

Bandit
Copyright 5/09 PAGE 68
MODELS 2000XP / 2100SP
SPECIFIC SCHEMATIC FUNCTION MAY VARY DEPENDING
ON OPTIONS OR COMPONENT MANUFACTURER.

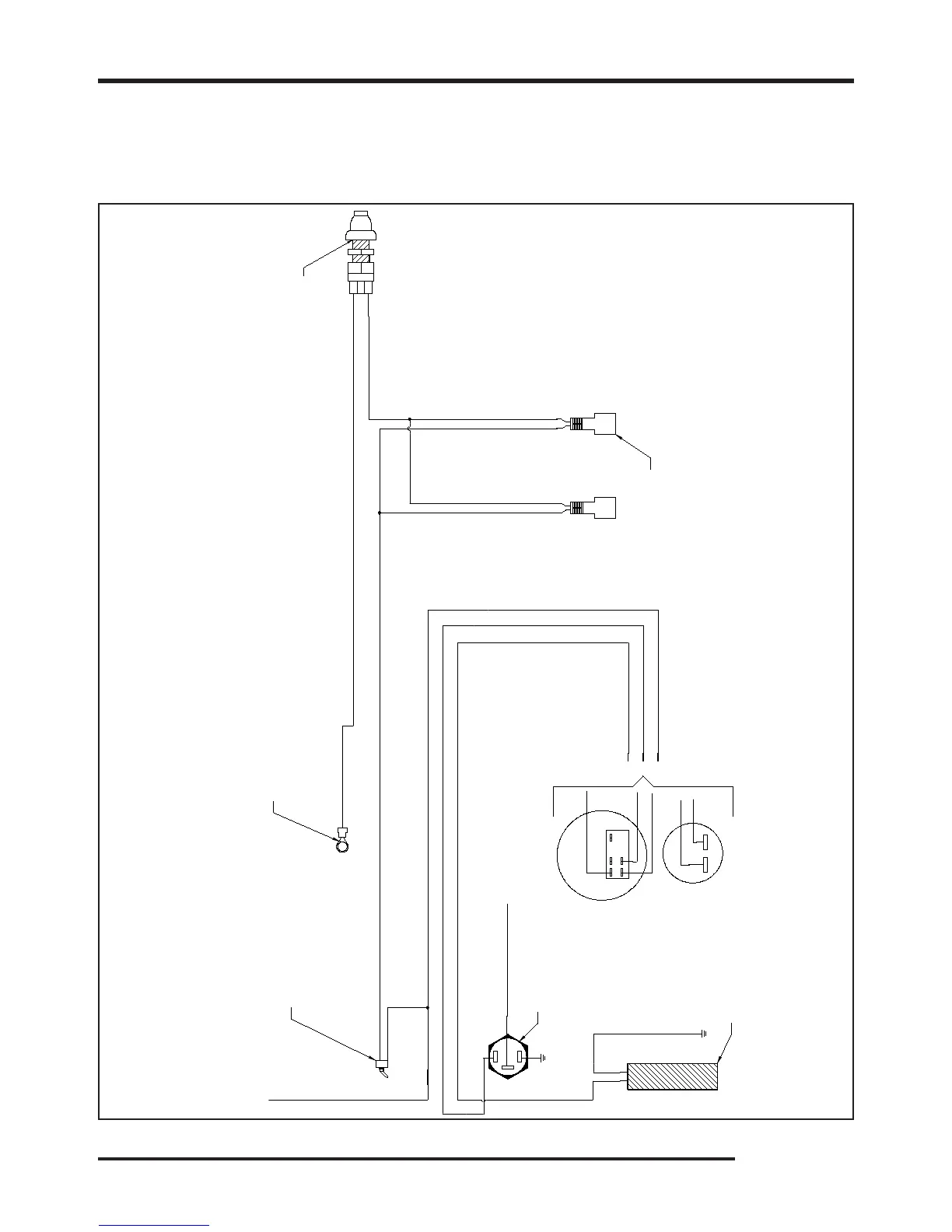

ELECTRICAL SCHEMATIC (993-800003)
MANUAL CONTROL MACHINES
ELECTRICAL SECTION
BRN 16 GXL POWER TO VALVES
RED 16 GXL POWER
BLK 16 GXL GROUND WHT 16 GXL TACH SIGNAL
BLK 16 GXL GROUND 48" LONG
BLK/BLU 16 GA. GXL GROUND
PIN 2 BLU
PIN 1 BRN
PIN 2 BLU
PIN 1 BRN
OPTIONAL TACH AND HOUR METER
OEM SHUTDOWN
OIL PRESSURE SWITCH
WHT
BLK RED
RED
BLK
TACHOMETER
HOUR METER
RED
BLK
WHT
MAG PICK UP
RED SWITCHED VOLTAGE FROM KEY
SAFETY SWITCH
1/4" RING TERMINAL 900-2907-63
COLE HERSEE SWITCH 900-2909-80
HIRSCHMAN DIN CONNECTORS 2 PLACES
