Bryant 126B Series User Manual

9

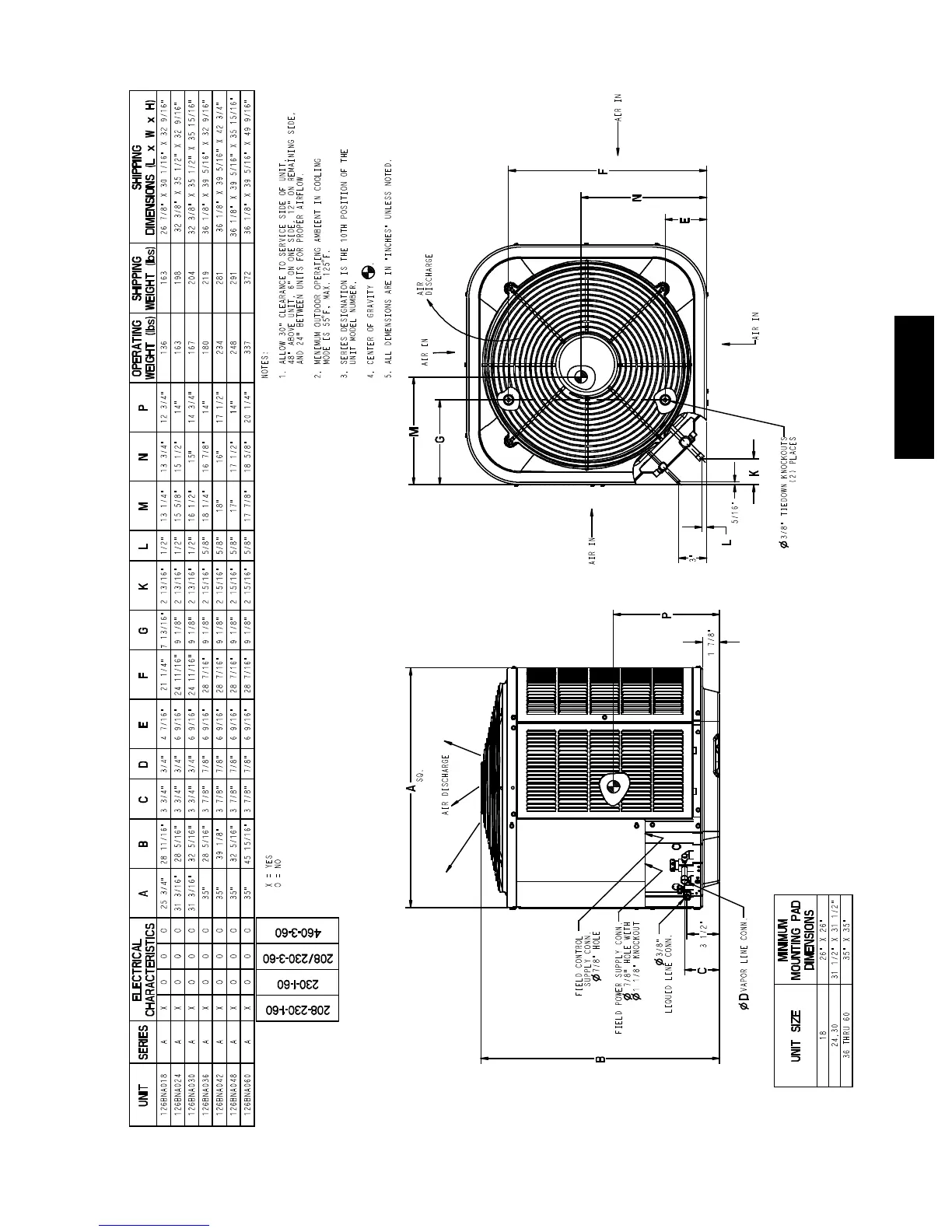

DIMENSIONS -- ENGLISH
3"
K
5/16"
L
N
M
E
F
G
C
31/2"
17/8"
P
A
B
208-230-1-60
230-1-60
208/230-3-60
460-3-60
UNIT SERIES
ELECTRICAL
CHARACTERISTICS
ABCDEFGKLMNP
OPERATING
WEIGHT (lbs)
SHIPPING
WEIGHT (lbs)
SHIPPING
A X O O O 25 3/4" 28 11/16" 3 3/4" 3/4" 4 7/16" 21 1/4" 7 13/16" 2 13/16" 1/2" 13 1/4" 13 3/4" 12 3/4" 136 163 A X O O O 31 3/16" 28 5/16" 3 3/4" 3/4" 6 9/16" 24 11/16" 9 1/8" 2 13/16" 1/2" 15 5/8" 15 1/2" 14" 163 198 A X O O O 31 3/16" 32 5/16" 3 3/4" 3/4" 6 9/16" 24 11/16" 9 1/8" 2 13/16" 1/2" 16 1/2" 15" 14 3/4" 167 204 A X O O O 35" 28 5/16" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 18 1/4" 16 7/8" 14" 180 219 A X O O O 35" 39 1/8" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 18" 16" 17 1/2" 234 281 A X O O O 35" 32 5/16" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 17" 17 1/2" 14" 248 291 A X O O O 35" 45 15/16" 3 7/8" 7/8" 6 9/16" 28 7/16" 9 1/8" 2 15/16" 5/8" 17 7/8" 18 5/8" 20 1/4" 337 372
18 26" X 26"
24,30
X = YES O=NO
NOTES: 1. ALLOW 30" CLEARANCE TO SERVICE SIDE OF UNIT,
48" ABOVE UNIT, 6" ON ONE SIDE, 12" ON REMAINING SIDE, AND 24" BETWEEN UNITS FOR PROPER AIRFLOW.
2. MINIMUM OUTDOOR OPERATING AMBIENT IN COOLING
MODE IS 55
F, MAX. 125
AIR DISCHARGE
AIR IN
AIR IN
AIR IN
AIR IN
(2) PLACES
AIR DISCHARGE
SQ.
FIELD CONTROL
SUPPLY CONN.
7/8" HOLE
7/8" HOLE WITH
1 1/8" KNOCKOUT
D
126B
