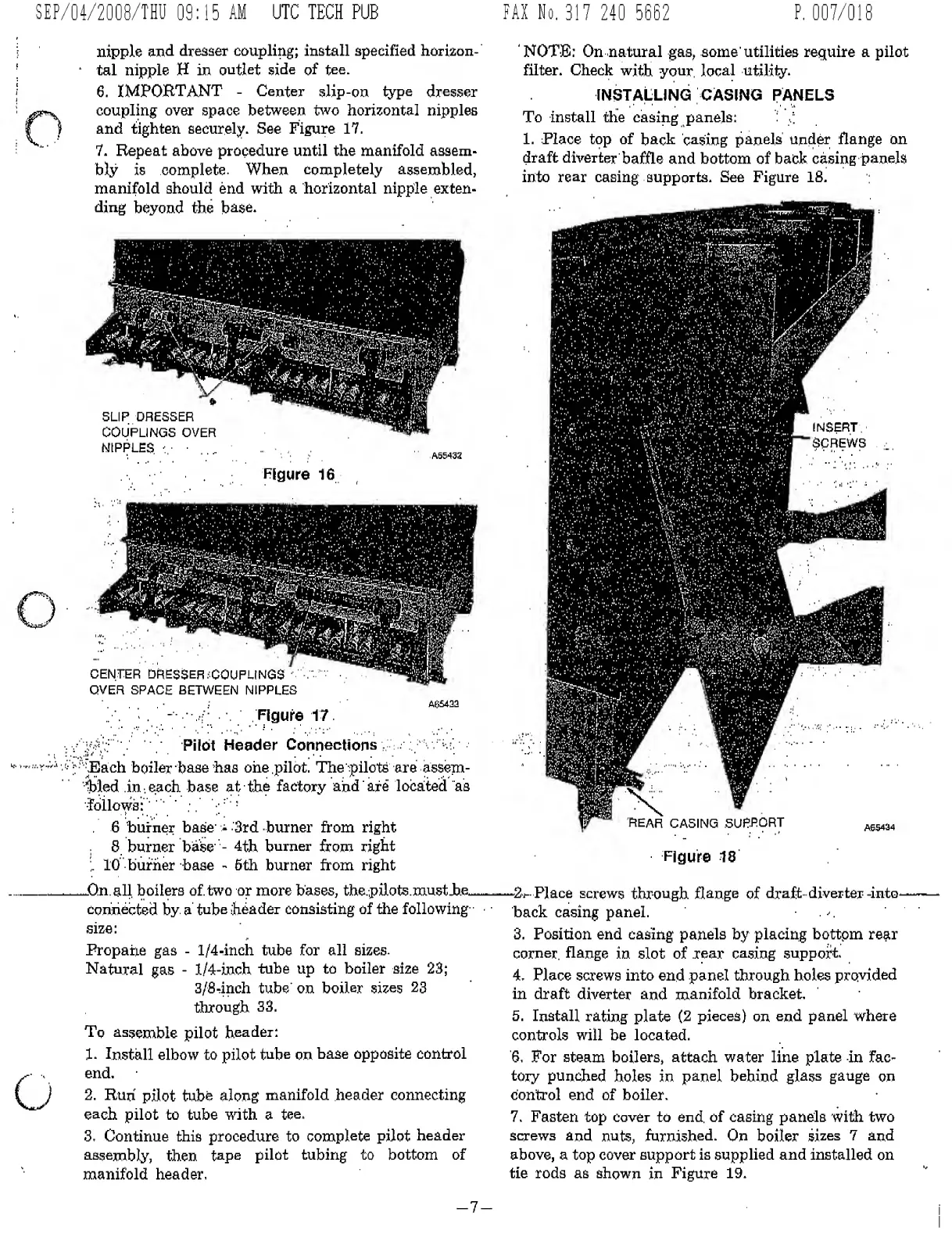

nipple and dresser coupling; install specified horizon¬
tal nipple H in outlet side of tee.
6. IMPORTANT 1 - Center slip-on type dresser
coupling over space between two horizontal nipples
and tighten securely. See Figure 17.
7. Repeat above procedure until the manifold assem¬
bly is complete. When completely assembled,
manifold should end with a horizontal nipple exten¬
ding beyond the base.
Figure 16
A6S433
- : Figure 17
Pilot Header Connections , : / ; : . kc
.A':-'/Each boiler base has one pilot. The pilots are assem¬
bled in each base at the factory and are located as
follows: : ;
6 burner base - 3rd burner from right.
8 burner base - 4th burner from right
10 burner base - 6th burner from right
_Onall boilers of two or more bases, the.,pilots.must.b.e„
connected by a tube header consisting of the following
size:
Propane gas - 1/4-inch tube for all sizes.
Natural gas - 1/4-inch tube up to boiler size 23;
3/8-inch tube on boiler sizes 23
through 33.
To assemble pilot header:
1. Install elbow to pilot tube on base opposite control
end.
2. Run pilot tube along manifold header connecting
each pilot to tube with a tee.
3. Continue this procedure to complete pilot header
assembly, then tape pilot tubing to bottom of
manifold header.
NOTE: On natural gas, some'utilities require a pilot
filter. Check with, your local utility.
INSTALLING CASING PANELS
To install tire casing panels: : ::
1. Place top of back casing panels under flange on
draft diverter baffle and bottom of back casing panels
into rear casing supports. See Figure 18.
Figure 18
-2.-Place screws through flange of draft diverter--into
back casing panel.
3. Position end casing panels by placing bottpm rear
corner flange in slot of rear casing support.
4. Place screws into end panel through holes provided
in draft diverter and manifold bracket.
5. Install rating plate (2 pieces) on end panel where
controls will be located.
6. For steam boilers, attach water line plate in fac¬
tory punched holes in panel behind glass gauge on
control end of boiler.
7. Fasten top cover to end of casing panels with two
screws and nuts, furnished. On boiler sizes 7 and
above, a top cover support is supplied and installed on
tie rods as shown in Figure 19.
