Bryant 246 - ASSEMBLING THE BASE

SEP/04/2008/THU 09:13 AM UTC TECH PUB
FAX No. 317 240 5662
F. 003/018

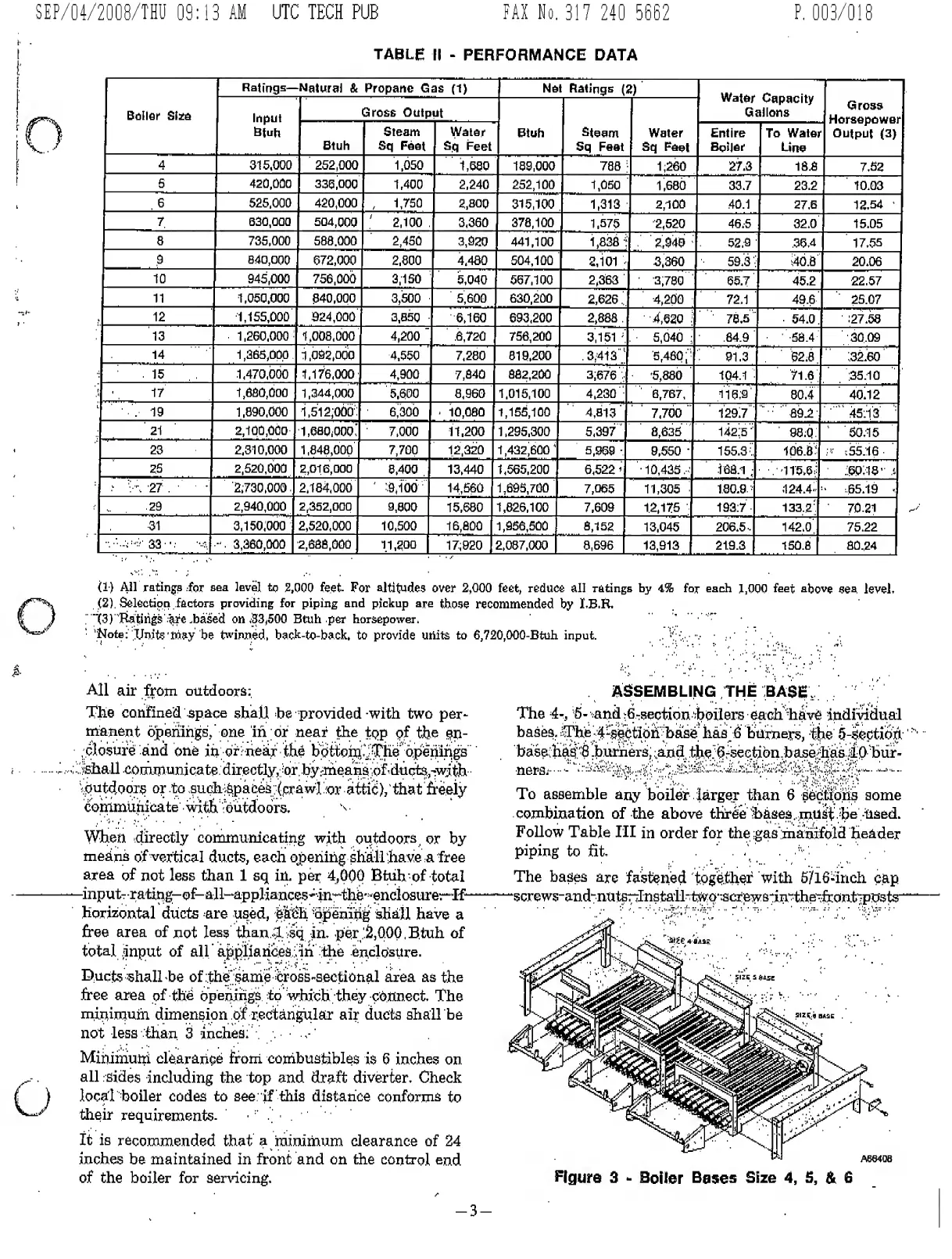

TABLE || - PERFORMANCE DATA
Boiler Size
Ratings—
Natural & Propane Gas (1)
I Net Ratings (2)
Capacity
allons
Gross
HorRopnwnr Input
Btuh
Gross Output
Steam
Sq Feet
Water
Sq Feet
water
G
Btuh
Steam
Sq Feet
Water
Sq Feet
Btuh Entire
Bailer
To Water
Une
Output (3)
4 315,000 252,000 1,050
1,680
189,000 78B
1,260 27.3 18.8
7,52
5 420,000
336,000 1,400 2,240 252,100 1,050
1,680 33.7 23.2 10.03
. 6 525,000 420,000
, 1,750
2,800 315,100 1,313 2,100 40.1 27.6 12,54 >
r. 630,000
504,000
2,100 3,360 378,100
1,575 2,520 46.5 32.0 15.05
8 735,000 588,000 2,450 3,920
441,100 1,838 i
2,940
52.9
36.4 17,55
.9 B40,000
672,000 2,800 4,480 504,100
2,101 3,360 59.3 40.8 20,06
10
945,000 756,000 3,150
5,040 567,100 2,363
3,780
65.7
45,2^
22.57
11 1,050,000 840,000 3,500 5,600 630,200
2,626 4,200 72.1 49.6 25.07
12 1,155,000 924,000 3,850
6,160 693,200 2,888 .
4,620 !
78.5
54.0. :27.58
13 1,260,000 : 1,008,000 4,200 ' 6,720 756,200
3,151
• 5,040 ;
84.9 58.4 30.09
14 1,365,000
1,092,000 4,550 7,280 819.200 3,413 1 5,460
91.3 62.8 32.60
.15 1,470,000 1,176,000 4,900 7,840 862,200
3,676'
’5,880 1Q4.1
71.6 35.10
17 1,630,000
1,344,000
5,600 8,960 1,015,100 4,230 8,767,
116.9 80.4 40.12
' ■ 19
1,890,000 1,512,000 6,300 - 10,090 1,155,100
4,813 7,700 129.7 89.2 45.13
21
2,100,000 1,680,000'
7,000
11,200
1,295,300 5,397 '
8,635 142!5 ;
98,Q, 50,15
23 2,310,000 1,848,000 7,700 12,320 1,432,600 :
5,369 • 9,550 ■ 155.3 106.8 ;>< : 5 5.16
25 2,520,000 2,016,000
8,400 . 13,440 1,565,200 6,522 i ■ 1 0 ,435 168.1 ;
■ 115.6' .60.18 ,i
:• 27 ; 2,730,000.
2,184,000
* 9,100 14,560 1,695,700
7,065 11,305 180.9 124.4" • 65.19 >.
29 2,940,000 2,352,000
9,800 15,680 1,826,100 7,609 12,175 193.7
133.2 •
70-21
31 3,150,000 2,520,000 10,500 16,600 1,956,500
8,152
13,045 206.5. 142.0 75.22
: 3 3' 1 ■ '
3,360,000 2,636,000 1.1,200
17,920 2,087,000 8,696 13,913 21.9.3 150.8 80.24
( 1 ) All rating for sea level to .2,000 feet- For altitudes over 2,000 feet, reduce all ratings by 4% for each 1,000 feet above sea level,
(2) Selection factors providing for piping and pickup are those recommended by I.B.R
"(3) Ratings hre abased on ,33,500 Btuh per horsepower. ’
Note: Units’may be twinned, back-to-back, to provide units to 6,720,000-Btuh input. .. F;
i
All air from outdoors:
The confined space shall be provided with two per¬
manent openings, one in or near the tqp of the en-
. closure and one in or near the bottom.. The openings
/ . shall communicate, directly, or by means of ducts,--with
/.outdoors or to such Spaces (crawl, or attic), that freely
communicate with, outdoors. n ■
When directly communicating with outdoors, or by
means of vertical ducts, each opening shall have a free
area of not less than 1 sq ill. per 4,000 Btuh of total
—inputT rating-of-alh-appliances^in-the- enclosurer-If^
Horizontal ducts are used, each opening shall have a
free area of not less than,!, sq in. per .2,000 Btuh of
total input of alb appliances in the enclosure.
Ducts shall be of the' same cross-sectional area as the
free area of the openings to which they connect. The
minimum dimension of rectangular air ducts shall be
not less than 3 inches.
Minimum clearance from combustibles is 6 inches on
all sides including the top and draft diverter. Check
local boiler codes to see if this distance conforms to
their requirements. ■
It is recommended that a minimum clearance of 24
inches be maintained in front and on the control end
of the boiler for servicing.
ASSEMBLING THE BASE,
The 4-, 5- and 6-section boilers each have individual
bases. The 4-section base has 6 burners, the 5-sectioh
base has' 8 .burners, and the 6-section b asqdias/10'bur¬
ners.* **.' r . ——
To assemble any boiler larger than 6 sections some
combination of the above three bases must be used.
Follow Table III in order for the gas manifold header
piping to fit, . > ■ ’ '
The bases are fastened together with 5/16-inch cap
Figure 3 - Boiler Boses Size 4, 5, & 6
- 3 -
