Bryant 355MAV - Page 18

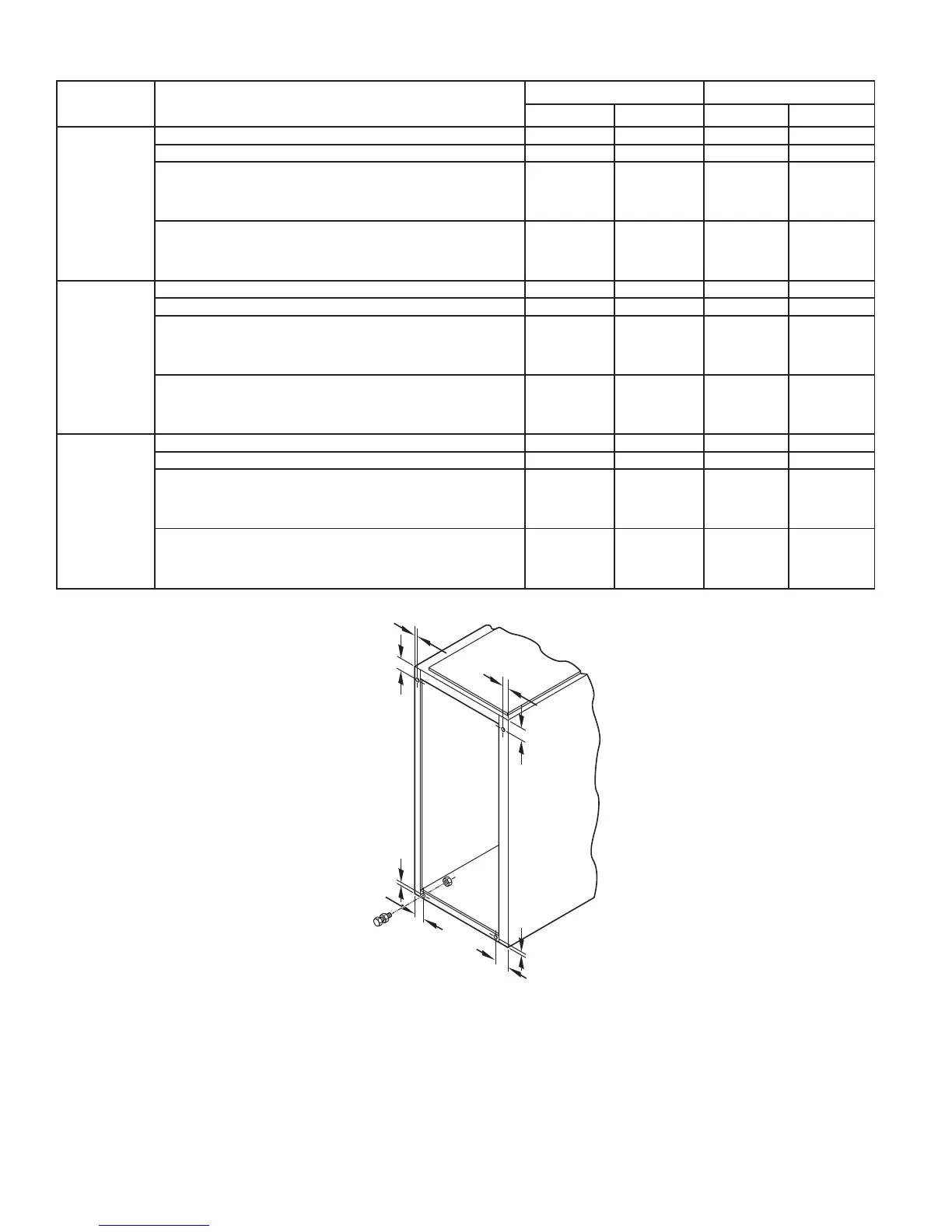

Table 1—Opening Dimensions (in.)
FURNACE
CASING
WIDTH
APPLICATION
PLENUM OPENING FLOOR OPENING
ABCD
17-1/2
Upflow Applications 16 24-1/8 16-5/8 24-3/4
Downflow Applications on Non-Combustible Flooring 15-7/8 19 16-1/2 19-5/8
Downflow Applications on Combustible Flooring Using KGASB
Subbase
Furnace with or without CD5 or CK5 Coil Assembly or KCAKC
Coil Box
15-1/8 19 16-3/4 20-3/8
Downflow Applications on Combustible Flooring NOT Using
KGASB Subbase
Furnace with or without CD5 or CK5 Coil Assembly or KCAKC
Coil Box
15-1/2 19 16-1/2 20
21
Upflow Applications 19-1/2 24-1/8 20-1/8 24-3/4
Downflow Applications on Non-Combustible Flooring 19-3/8 19 20 19-5/8
Downflow Applications on Combustible Flooring Using KGASB
Subbase
Furnace with or without CD5 or CK5 Coil Assembly or KCAKC
Coil Box
18-5/8 19 20-1/4 20-3/8
Downflow Applications on Combustible Flooring NOT Using
KGASB Subbase
Furnace with or without CD5 or CK5 Coil Assembly or KCAKC
Coil Box
19 19 20 20
24-1/2
Upflow Applications 23 24-1/8 23-5/8 24-3/4
Downflow Applications on Non-Combustible Flooring 22-7/8 19 23-1/2 19-5/8
Downflow Applications on Combustible Flooring Using KGASB
Subbase
Furnace with or without CD5 or CK5 Coil Assembly or KCAKC
Coil Box
22-1/8 19 23-3/4 20-3/8
Downflow Applications on Combustible Flooring NOT Using
KGASB Subbase
Furnace with or without CD5 or CK5 Coil Assembly or KCAKC
Coil Box
22-1/2 19 23-1/2 20
Fig. 17—Leveling Legs
A89014
1
3
/ 4″
1
3
/ 4″
1
3/
4″
1
3/
4″
5/
16″
5
/ 16″
5/
16″
5/
16″
(44mm)
(8mm)
(44mm)
(8mm)
(8mm)
(8mm)
(44mm)
(44mm)
—18—
