Table 6—Approved Combustion-Air and Vent Pipe, Fitting and Cement Materials

SPECIFICATION

(MARKED ON MATERIAL)

MATERIAL PIPE FITTINGS SOLVENT CEMENT AND PRIMERS DESCRIPTION

D1527 ABS Pipe — — Schedule-40

D1785 PVC Pipe — — Schedule-40

D2235 For ABS — —

Solvent

Cement

For ABS

D2241 PVC Pipe — — SDR-21 & SDR-26

D2466 PVC — Fittings — Schedule-40

D2468 ABS — Fittings — Schedule-40

D2564 For PVC — —

Solvent

Cement

For PVC

D2661 ABS Pipe Fittings — DWV at Schedule-40 IPS sizes

D2665 PVC Pipe Fittings — DWV

F438 CPVC — Fittings — Schedule-40

F441 CPVC Pipe — — Schedule-40

F442 CPVC Pipe — — SDR

F493 For CPVC — —

Solvent

Cement

For CPVC

F628 ABS Pipe — — Cellular Core DWV at Schedule-40 IPS sizes

F656 For PVC — — Primer For PVC

F891 PVC Pipe — — Cellular Core Schedule-40 & DWV

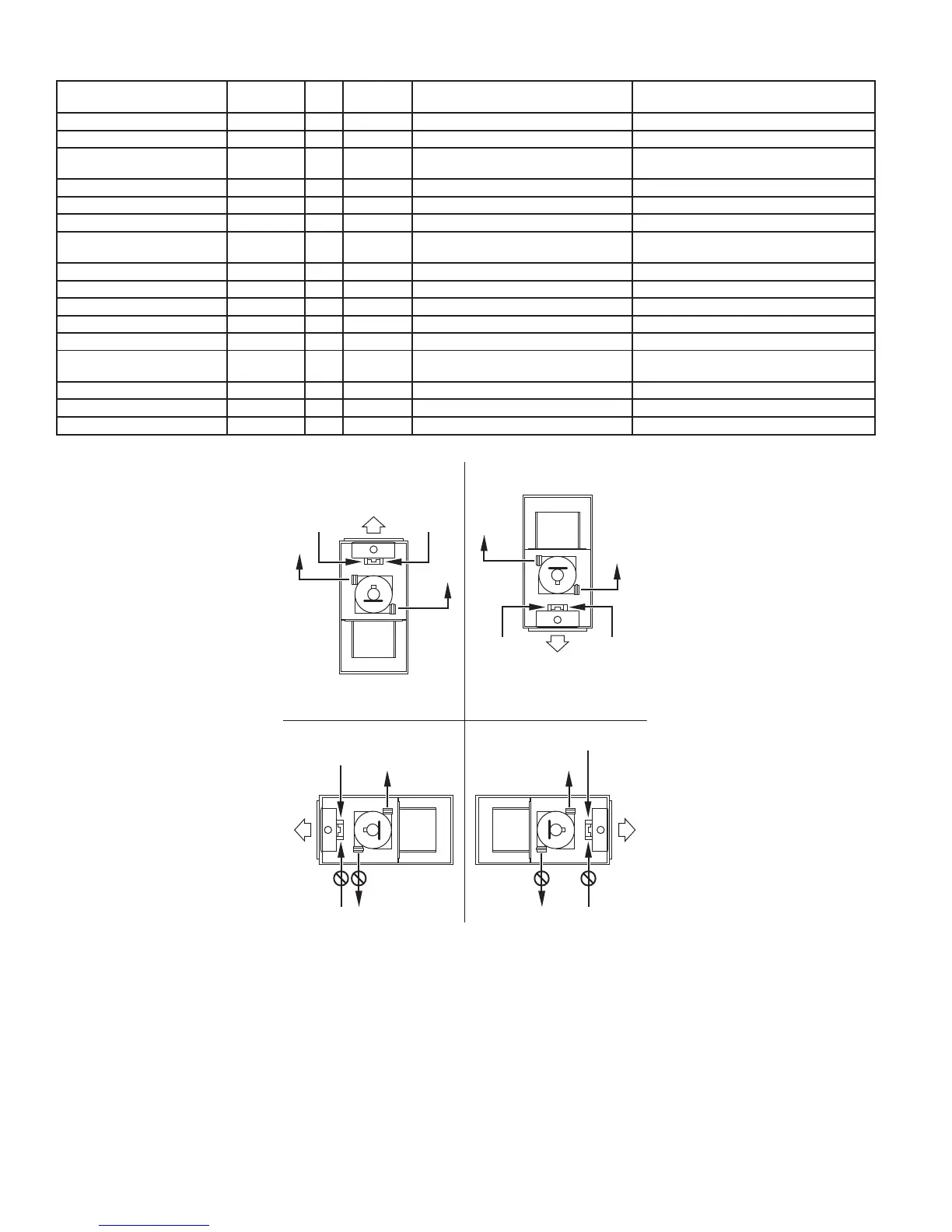

Fig. 36—Combustion-Air and Vent Pipe Connections

A96187

COMBUSTION-

AIR

COMBUSTION-

AIR

FLOW

VENT

AIR

FLOW

AIR

FLOW

AIR

FLOW

UPFLOW DOWNFLOW

HORIZONTAL-LEFT DISCHARGE HORIZONTAL-RIGHT DISCHARGE

Select 1 vent pipe connection and

1 combustion-air pipe connection.

COMBUSTION-

AIR

COMBUSTION-

AIR

COMBUSTION-

AIR

COMBUSTION-

AIR

VENT

NOTE: Select 1 vent pipe connection and

1 combustion-air pipe connection.

NOTE:

—32—
