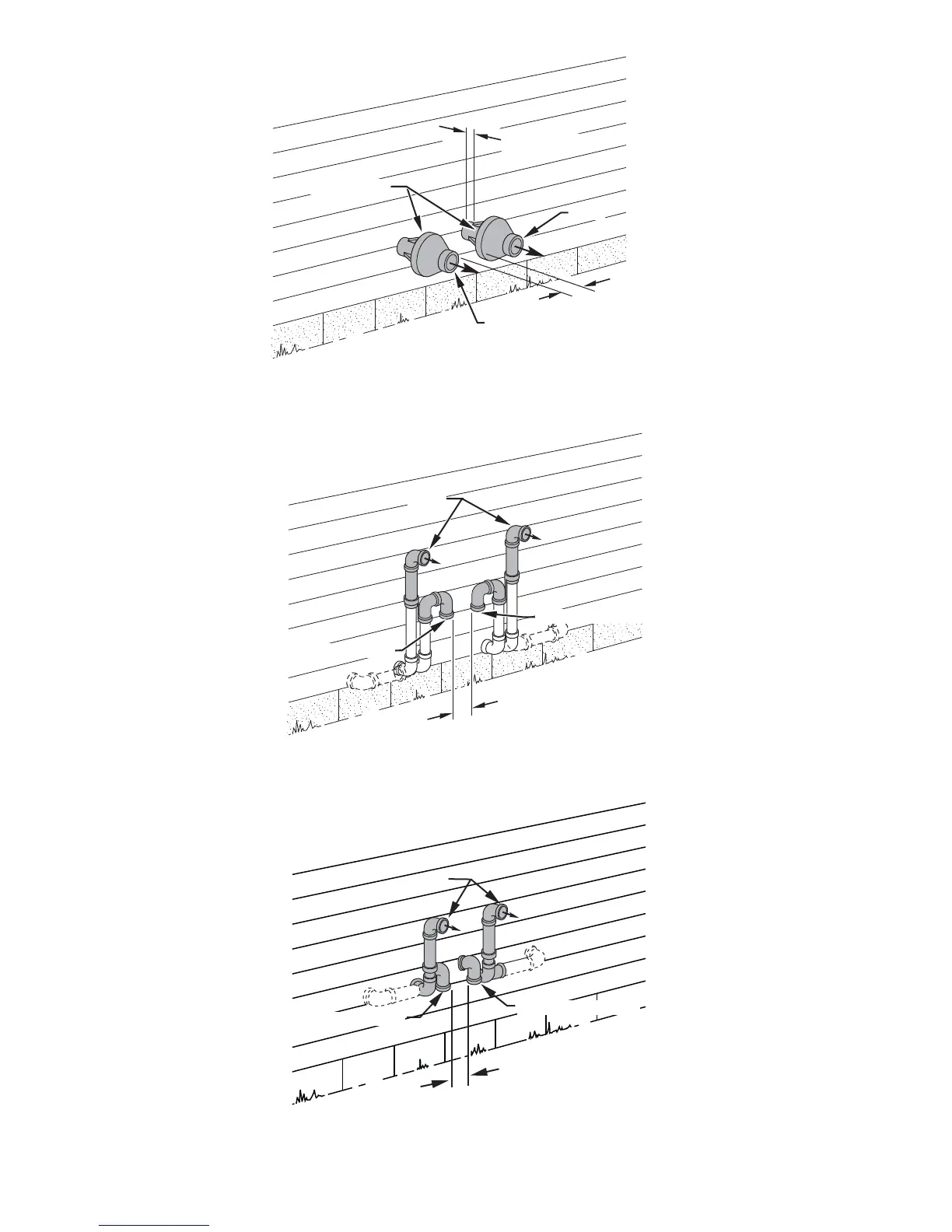

Fig. 46—Concentric Vent and Combustion-Air Side Termination

(Dimension “A” is Touching or 2-in. Maximum Separation)

A93057

COMBUSTION AIR

VENT

1″ (25 mm) MAXIMUM

(TYP)

Fig. 47—Sidewall Termination of 12 in. or Less

(Dimension “A” is Touching or 2-in. Maximum Separation)

A96129

COMBUSTION AIR

VENT

Fig. 48—Sidewall Termination of More than 12 in.

(Dimension “A” is Touching or 2-in Maximum Separation)

A96130

COMBUSTION AIR

VENT

—42—

Bryant 355MAV User Manual
