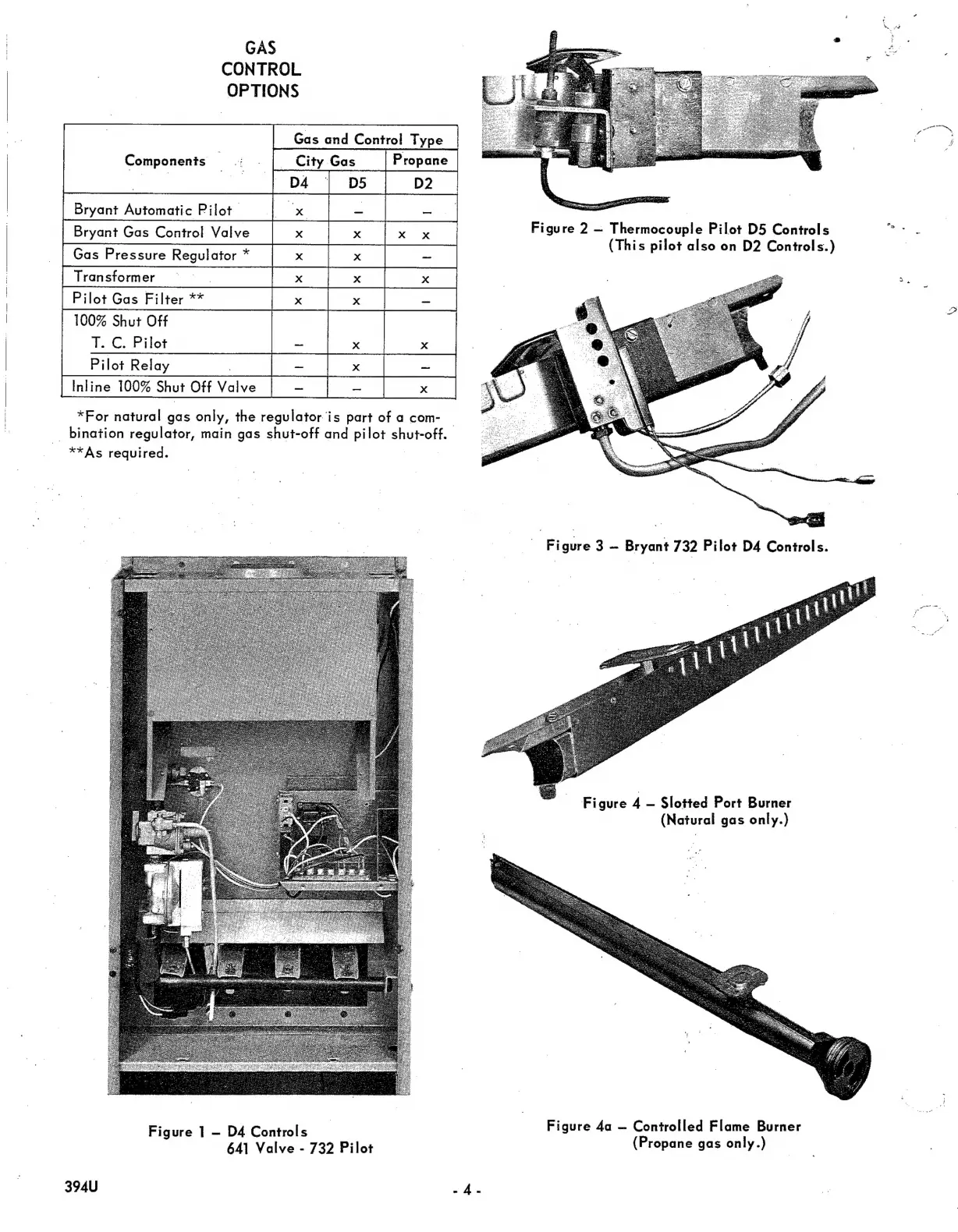

Bryant 394U - Gas Control Options and Components

GAS
CONTROL
OPTIONS
Gas and Control Type
Components
Bryant Automatic Pilot.
Bryant Gas Control Valve
Gas Pressure Regulator *
Transformer
Pilot Gas Filter **
100% Shut Off
T.C Plot
Pilot Relay
Inline 100% Shut Off Valve
*For natural gas only, the regulator 15 part of a com- -
. bination regulator, main gas shut-off and pilot shut-off.
** As required.
Figure 1 — D4 Controls
641 Valve - 732 Pilot
394U
Figure 2 — Thermocouple Pilot D5 Controls
(This pilot also on D2 Controls.)
em
Figure 4 — Slotted Port Burner
(Natural gas only.)
Figure 4a — Controlled Flame Burner
(Propane gas only.)
-
