NOTES:

1. Service clearances are as follows:

Side (compressor) — 3

ft (1067 mm)

Side (opposite compressor) — 3 ft (914 mm)

Ends — 2 ft (610 mm)

Top—5ft(1524mm)

2. Corner weights are approximate.

3. Actual support weights depend on level of unit and evenness of support

posts.

4. Total weights represent approximate unit weights without shipping package.

5. Bottom or top skid is NOT included in the weights.

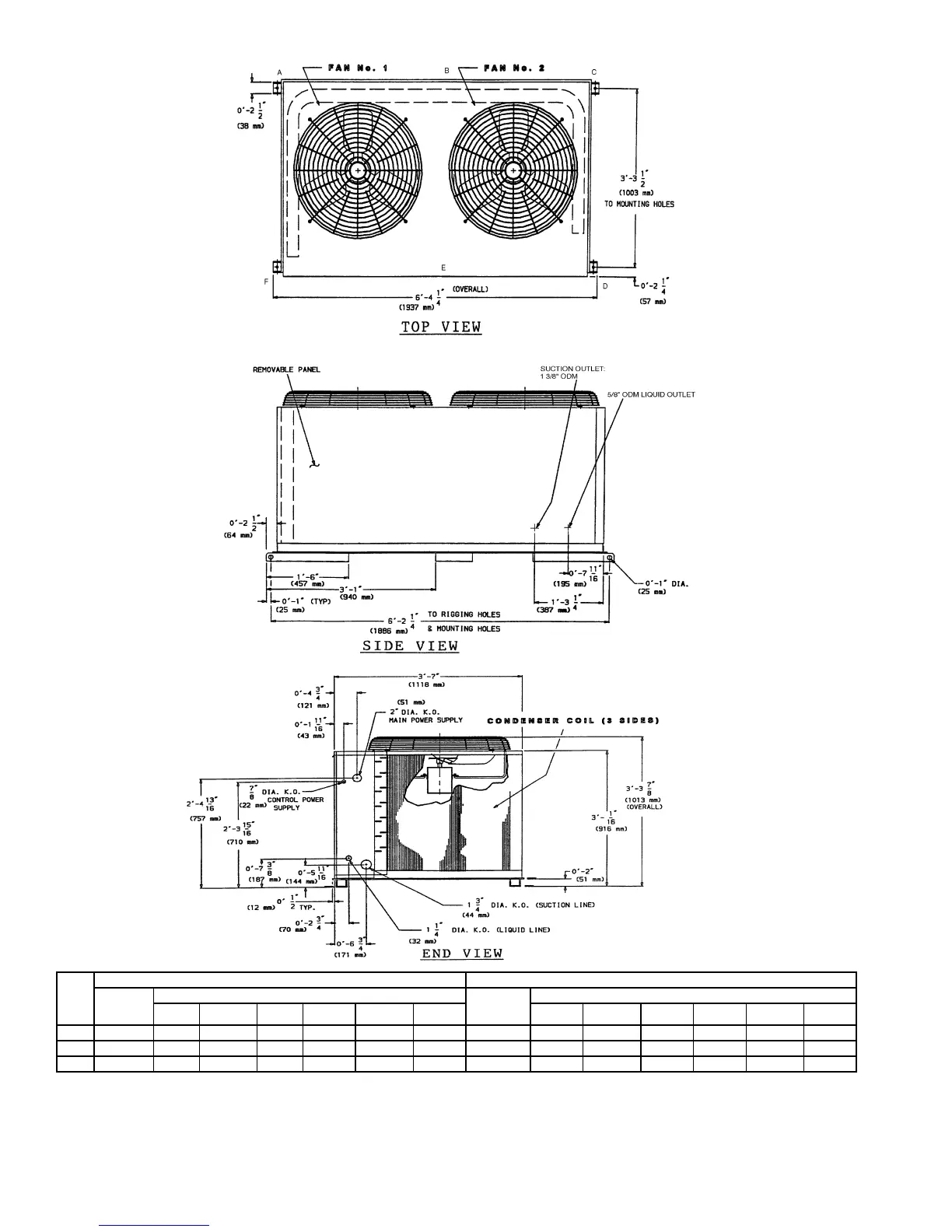

Fig. 3 — 566D150-240 Unit Dimensions

UNIT

566D

ALUMINUM COIL COPPER COIL

Standard

Weight

lb (kg)

Operational Weight Points lb (kg) Standard

Weight

lb (kg)

Operational Weight Points lb (kg)

ABCD E F A B CD E F

150 779 (354) 70 (32) 177 (80) 68 (31) 100 (45) 261 (119) 103 (47) 919 (418) 99 (45) 224 (102) 96 (44) 114 (52) 268 (122) 118 (54)

180 789 (359) 70 (32) 180 (82) 69 (31) 101 (46) 265 (120) 104 (47) 929 (422) 99 (45) 228 (104) 96 (44) 115 (52) 273 (124) 118 (54)

240 900 (422) 84 (38) 234 (106) 82 (37) 108 (49) 310 (141) 111 (50) 1040 (473) 110 (50) 283 (129) 107 (49) 116 (53) 305 (139) 119 (54)
