Bryant 588A Installation, Start-Up And Service Instructions

REQ’D CLEARANCES FOR SERVICING. in. (mm)
Duct panel .............................0
Unit top ...........................36(914)
Side opposite ducts .....................36(914)
Compressor access .....................36(914)
(Except for NEC requirements)
REQ’D CLEARANCES TO COMBUSTIBLE MAT’L. in. (mm)
Maximum extension of overhangs ...............48(1219)
Unit top ...........................14(356)
Duct side of unit ........................2(51)
Side opposite ducts .....................14(356)
Bottom of unit ...........................0
Flue panel .........................36(914)
NEC REQ’D CLEARANCES. in. (mm)
Between units, control box side ................42(1067)
Unit and ungrounded surfaces, control box side .........36(914)
Unit and block or concrete walls and other grounded
surfaces, control box side ..................42(1067)
UNIT
588A
ELECTRICAL
CHARACTERISTICS
UNIT WEIGHT
CORNER WEIGHT
(lb/kg)
UNIT HEIGHT
(in./mm)
lbkgABCD E
018040 208/230-1-60 296 135 87/40 68/31 82/37 59/27 27.4/697
024040 208/230-1-60 327 149 103/47 49/22 129/59 46/21 27.4/697
024060 208/230-1-60 339 155 106/48 52/24 132/60 49/22 27.4/697
030040 208/230-1-60, 208/230-3-60 344 157 106/48 53/24 132/60 53/24 27.4/697
030060/080 208/230-1-60, 208/230-3-60 356 162 102/46 71/32 123/56 60/27 27.4/697
036060/080 208/230-1-60, 208/230-3-60, 460-3-60 360 164 92/42 82/37 117/53 69/31 27.4/697
036100/120 208/230-1-60, 208/230-3-60, 460-3-60 372 169 95/43 85/39 120/55 72/33 27.4/697
042060/080 208/230-1-60, 208/230-3-60, 460-3-60 399 181 101/46 92/42 125/57 81/37 31.4/798
042100/120 208/230-1-60, 208/230-3-60, 460-3-60 411 187 104/47 95/43 128/58 84/38 31.4/798
UNIT
588A
F
in./mm
G
in./mm
CENTER OF GRAVITY in./mm
XYZ
018040
19
7
⁄ 8 /504.8 22
1
⁄ 4 /565.4
25.04/636 22.72/577
13.16/334.3
024040 26.90/683.3 20.17/512.3
024060 26.82/681.2 20.22/513.6
030040 26.57/674.9 20.1 /509.3
030060/080 26.93/684 21.1 /535.4
036060/080 27.31/693.7 21.0 /532.6
036100/120 27.23/691.6 21.0 /533.1
042060/080
23
7
⁄ 8 /606.4 26
1
⁄ 4 /666.8
26.87/682.5 21.0 /533.1
14.96/380
042100/120 26.81/681 21.0 /533.7
LEGEND
CG — Center of Gravity
COND — Condenser
LV — Low Voltage
MAT’L — Material
NEC — National Electrical Code
REQ’D — Required
NOTES:
1. Clearances must be maintained to prevent recirculation of air from outdoor-
fan discharge.
2. Adequate clearance around air openings into combustion chamber must
be provided.

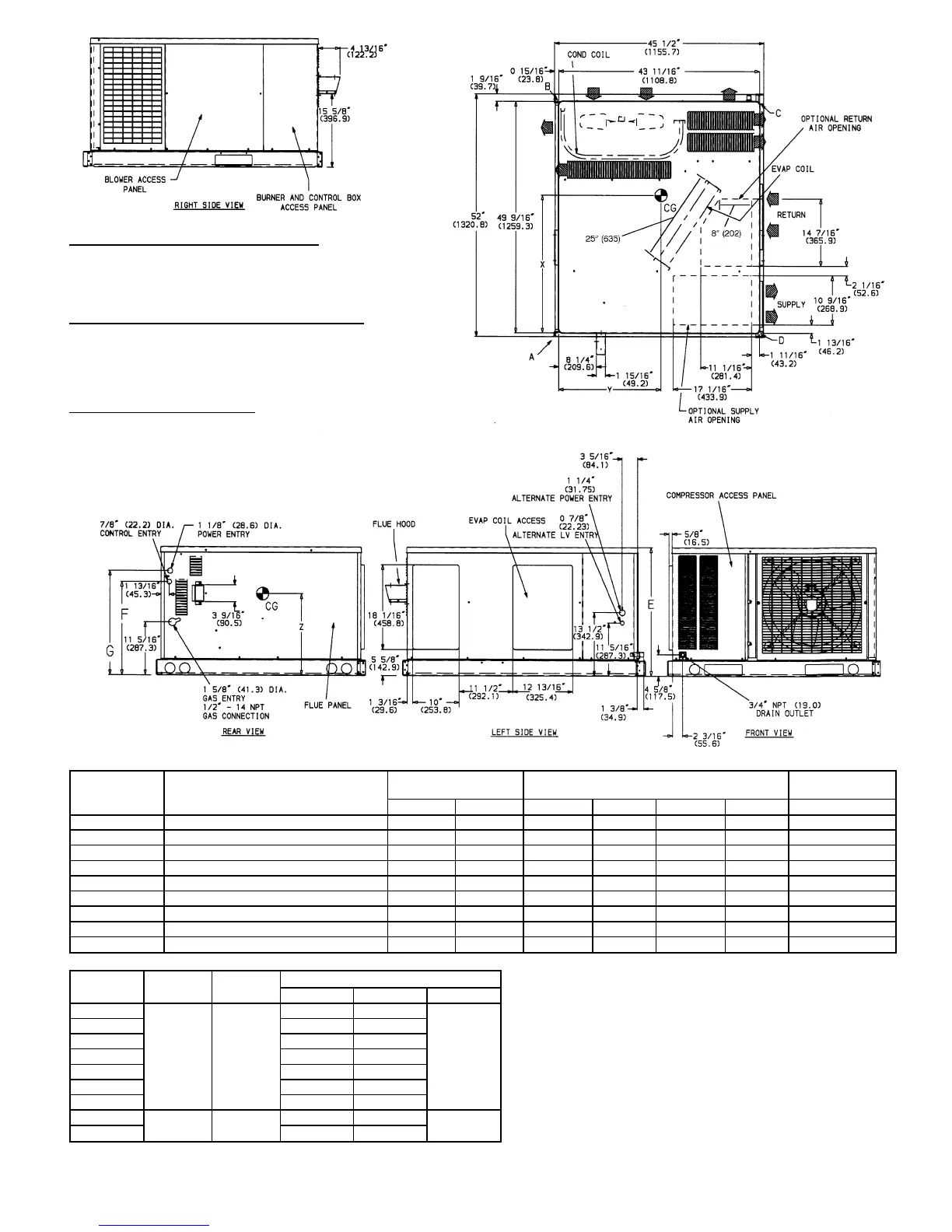

Fig. 3 — 588A018-042 With Optional Base Rail, Unit Dimensions
