INDOOR UNIT DISPLAY
NOTE: Different models have different front panel and display window. Not all the indicators described below are available for the air
conditioner you purchased. Please check the indoor display window of the unit you purchased. Illustrations in this manual are for
explanatory purposes. The actual shape of your indoor unit may differ.

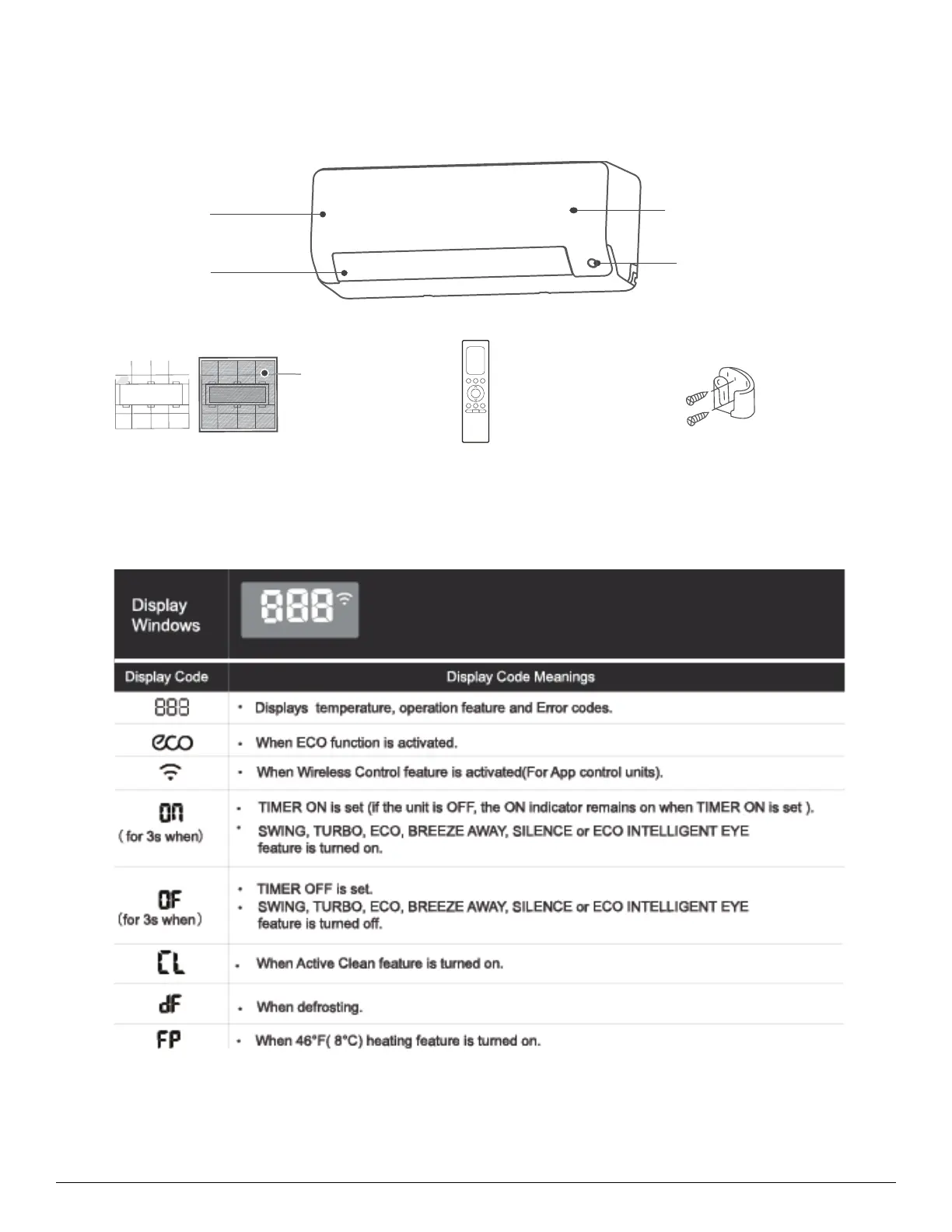

Fig. 10 — High Wall
A220704
Front Panel
Display Window
Air Outlet
Functional Filter
(On Back of Main Filter)
Remote Controller Holder
Remote Controller
ECO Intelligent Eye
Air Filter
