FURNACE SIZE
A B C D
SHIP WT.
LB (KG)
CABINET WIDTH OUTLET WIDTH BOTTOM INLET WIDTH AIR INTAKE
30040E14
14--- 3/16 (361) 12--- 1/2 (319) 12--- 9/16 (322) 7--- 1/8 (181) 112.0 (50.8)
36040E17
17--- 1/2 (445) 15--- 7/8 (403) 16 (406) 8--- 3/4 (222) 122.5 (55.6)
36060E14
14--- 3/16 (361) 12--- 1/2 (319) 12--- 9/16 (322) 7--- 1/8 (181) 122.0 (55.3)
42060E17
17--- 1/2 (445) 15--- 7/8 (403) 16 (406) 8--- 3/4 (222) 132.0 (59.9)
48080E17
17--- 1/2 (445) 15--- 7/8 (403) 16 (406) 8--- 3/4 (222) 142.0 (64.4)
60080E21
21 (533) 19 --- 3/8 (492) 19--- 1/2 (495) 10--- 1/2 (267) 150.0 (68.0)
60100E21
21 (533) 19 --- 3/8 (492) 19--- 1/2 (495) 10--- 1/2 (267) 160.0 (72.6)
60120E24
24--- 1/2 (622) 22--- 7/8 (581) 23 (584) 12---1/4 (311) 183.0 (83.0)

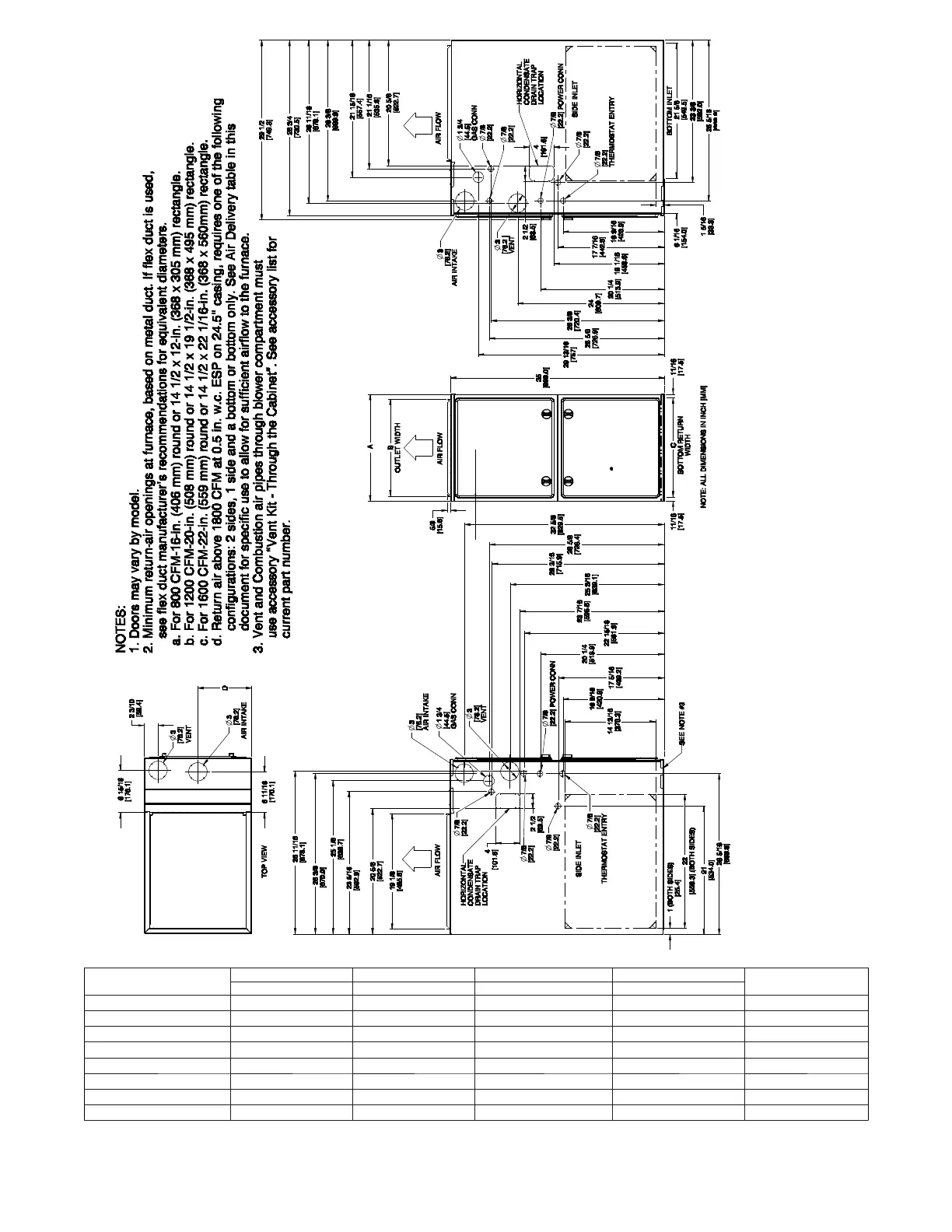

Fig. 1 -- Dimensional Drawing
