42
Modulating and 2-Stage Furnace with Single-Speed Air Conditioner
Modulating and 2-Stage Furnace with Two-Speed Air Conditioner
Modulating and 2-Stage Furnace with Single-Speed Heat Pump
Modulating and 2-Stage Furnace with Two-Speed Heat Pump
See notes 2, 5, 7, 10, 11, 16, and 17 See notes 1, 2, 4, 6, 7, 9, 10, 11, 15, 16, and 17
THERMOSTAT
THERMOSTAT
THERMOSTAT
THERMOSTAT
D
D
D
D
See notes 2, 5, 8, 10, 11, 12, 16, and 17
See notes 1, 2, 3, 4, 6, 8, 9, 10, 12, 13, 15, 16, and 17
A12222

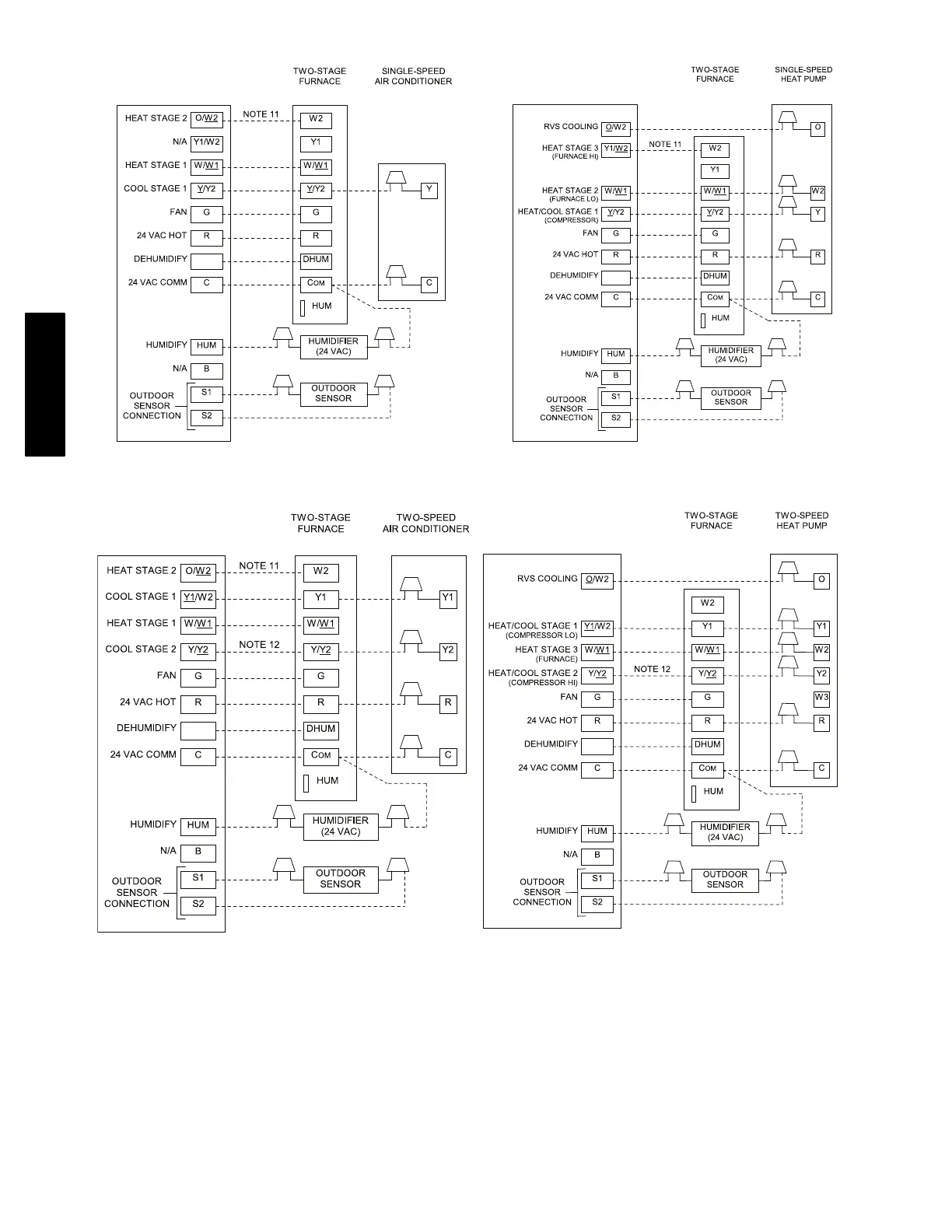

Fig. 39 − Thermostat Wiring Diagrams
