Bryant CNPHP - Page 3

3
A09084

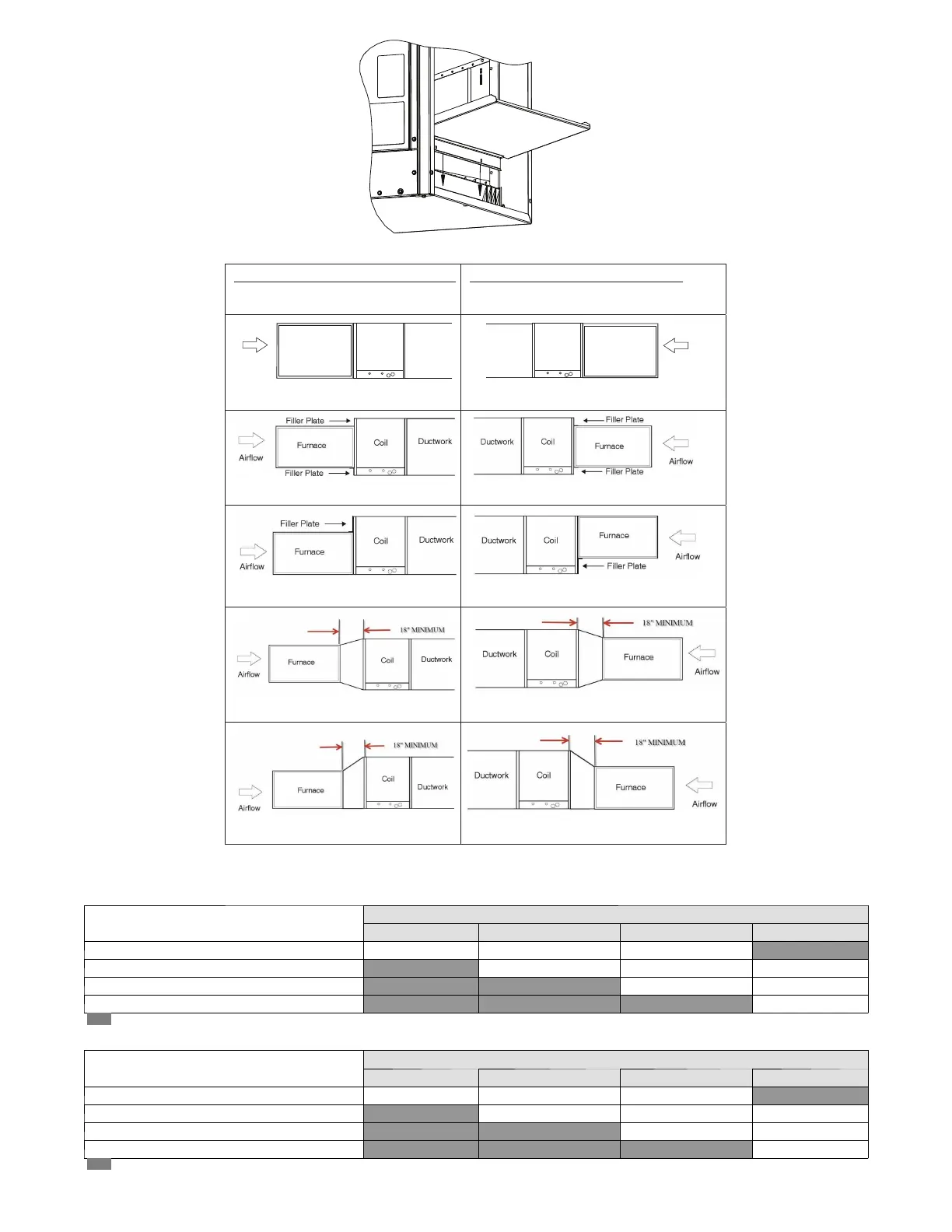

Fig. 3 -- Horizontal--Right Installation of Pan Extension
HORIZONTAL RIGHT INSTALLATIONS
Acceptable for Air Conditioner and
Heat Pump Applications
HORIZONTAL LEFT INSTALLATIONS
Acceptable for Air Conditioner
Only Applications
Application A
Application F
Application B
Application G
Application C
Application H
Application D
Application I
Application E
Application J
Coil
Ductwork
Airflow
Furnace
Coil
Furnace
Ductwork
Airflow
A13416
Fig. 4 -- Horizontal Installation Applications
Table 1 – Heat Pump Applications
Furnace Width- In. (mm)
Coil Width- In. (mm)
14 (356) 17.5 (445) 21 (533) 24.5 (622)
14 (356) A B, C, D, E D, E
17.5 (445) A B, C, D, E D, E
21 (533) A B, C, D, E
24.5 (622) A
--- N o t p e r m i t t e d .
Table 2 – Air Conditioner Applications
Furnace Width- In. (mm)
Coil Width- In. (mm)
14 (356) 17.5 (445) 21 (533) 24.5 (622)
14 (356) A, F B, C, D, E, G, H, I, J D, E, I, J
17.5 (445) A, F B, C, D, E, G, H, I, J D, E, I, J
21 (533) A, F B, C, D, E
24.5 (622) A, F
--- N o t p e r m i t t e d .
