47
Filter
Clips
Aluminum
Filter
A09704

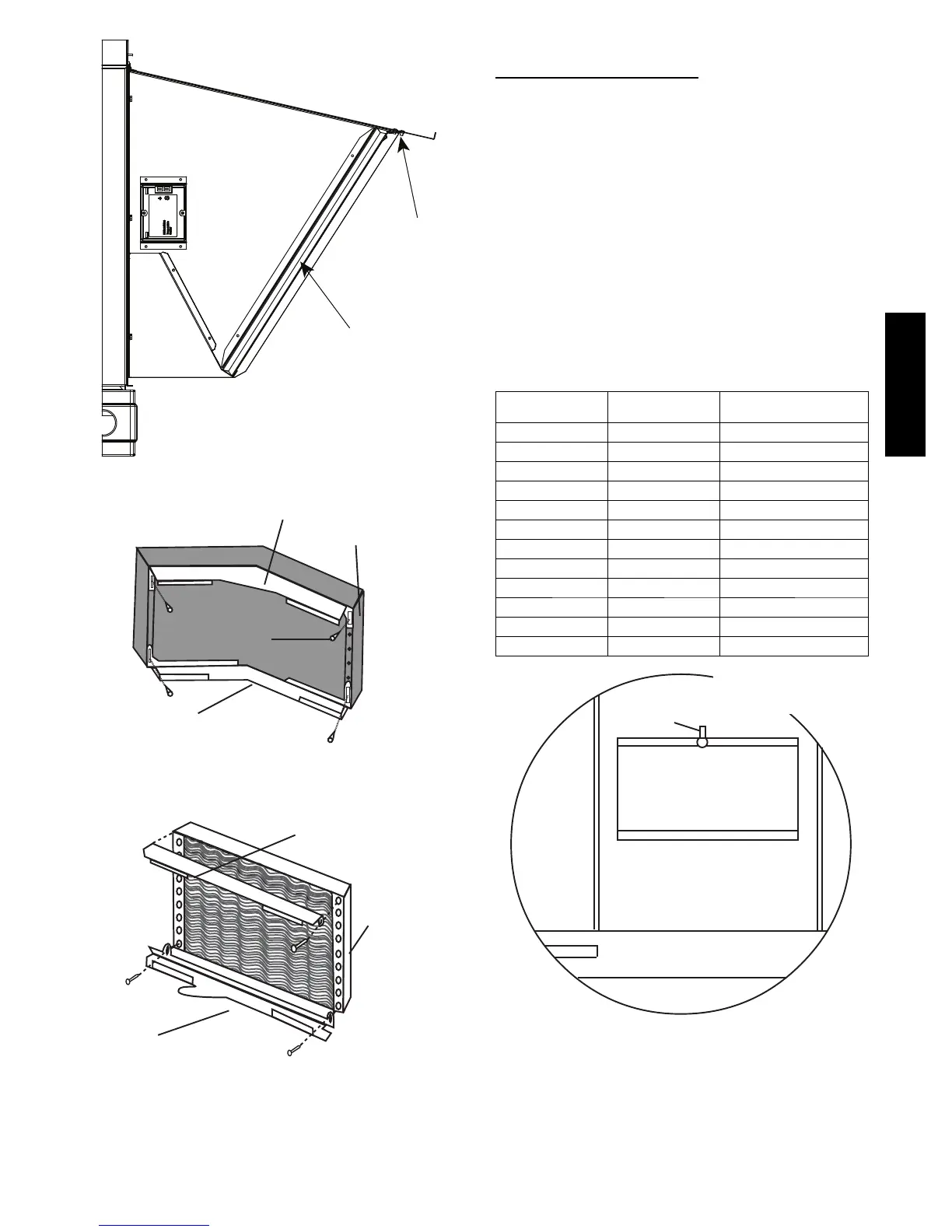

Fig. 36 -- Filter Installation (See thr ough view)
Bottom
filter rack
Screw
(Note 4 and 5)
RIGHT SIDE
Evaporator
Coil
Top filter
rack
BENT COIL
Bottom
filter rack
Top f ilte r
rack
Evaporator
Coil
STRAIGHT COIL
A09714
Fig. 37 -- Indoor Coil with Filter Rack
CONFIGURATION
Economize r Standard Sensors
OUTDOOR AIR TEMPERATURE (OAT) S ENSOR— The
outdoorairtemperature sensor(HH57AC080)isa 10 to 20mA device
used to measure the outdoor--air temperature. The outdoor-- air
temperature is used to determine when the Economizer can be used
for free cooling. The operating range of temperature measurement is
40 to 100_F (4.4 to 37.8_C). The sensor has 8 selectable temperature
changeover setpoints. The temperature changeover is set using 3 dip
switches on the sensor. The ABCD potentiometer on the controller
should be set to the “D” position. See Fig. 40.
SUPPLY AIR TEMPERATURE (SAT) S ENSOR—The supply
air temperature sensor is a 3 KΩ thermistor located at the inlet of the
indoor fan. See Fig. 38. The operating range of temperature
measurement is 0_ to 158_F (--17.8_ to 70_C). See Table 20 for
sensor temperature/resistance values. The temperature sensor looks
like an eyelet terminal with wires running to it. The sensor is located
in the “crimp end” and is sealed from moisture.
Table 20 – Supply Air Sensor Temperature/Resistance Values
TEMPERATURE
(_F)
CELSIUS (_C) RESISTANCE (OHMS)
--- 2 2 --- 3 0 53,010
--- 4 --- 2 0 29,091
14 --- 1 0 16,590
32 0 9,795
50 10 5,970
68 20 3,747
77 25 3,000
86 30 2,416
104 40 1,597
122 50 1,080
140 60 746
158 70 525
Indoor
Blower
Supply Air Temperature
Sensor (SAT)
A09707
Fig. 38 -- SAT Location
LOW TEMPERATURE COMPRESSOR LOCKOUT
SWITCH—The Economizer is equipped with a low ambient
temperature lockout switch located in the outdoor airstream which is
used to lock out the compressors below a 42_F(5.6_C) ambient
temperature.
574D-- -- A
