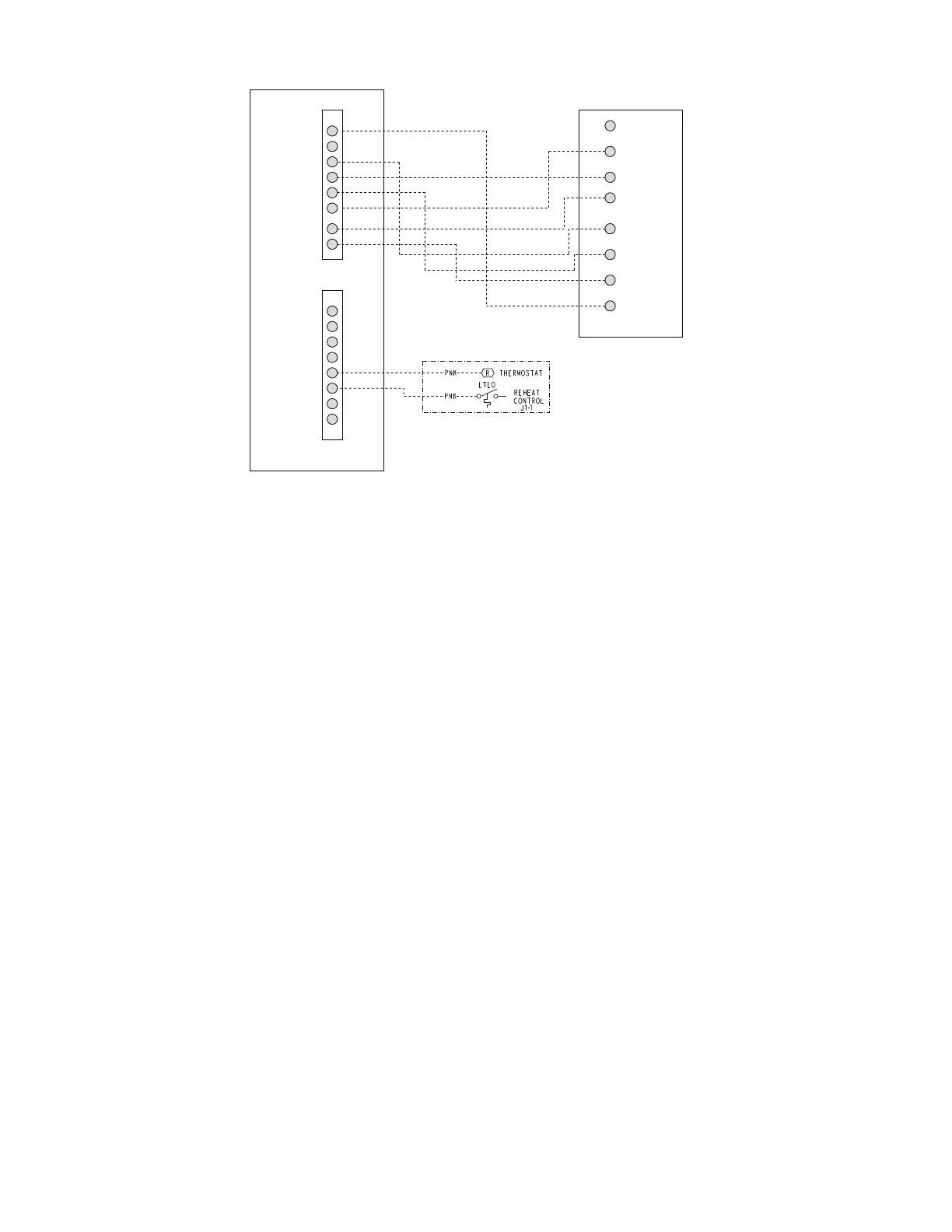

Fig. 39 — Typical Rooftop Unit with Perfect Humidity
™
Adaptive Dehumidification System
and Programmable Thermostat Device
Rc
Rh
W1
G
Y2
C
O/W2/B
Y1
OAT
RRS
SRTN
HUM
D1
D2
V+
Vg
X*
C
G
W2
W1
Y2
Y1
R
EDGE Pro THERMIDISTAT
Unit CTB
THERMOSTAT
*Connection not required.
Humidi-MiZer™ FIOP
