Single Stage AC
A06087

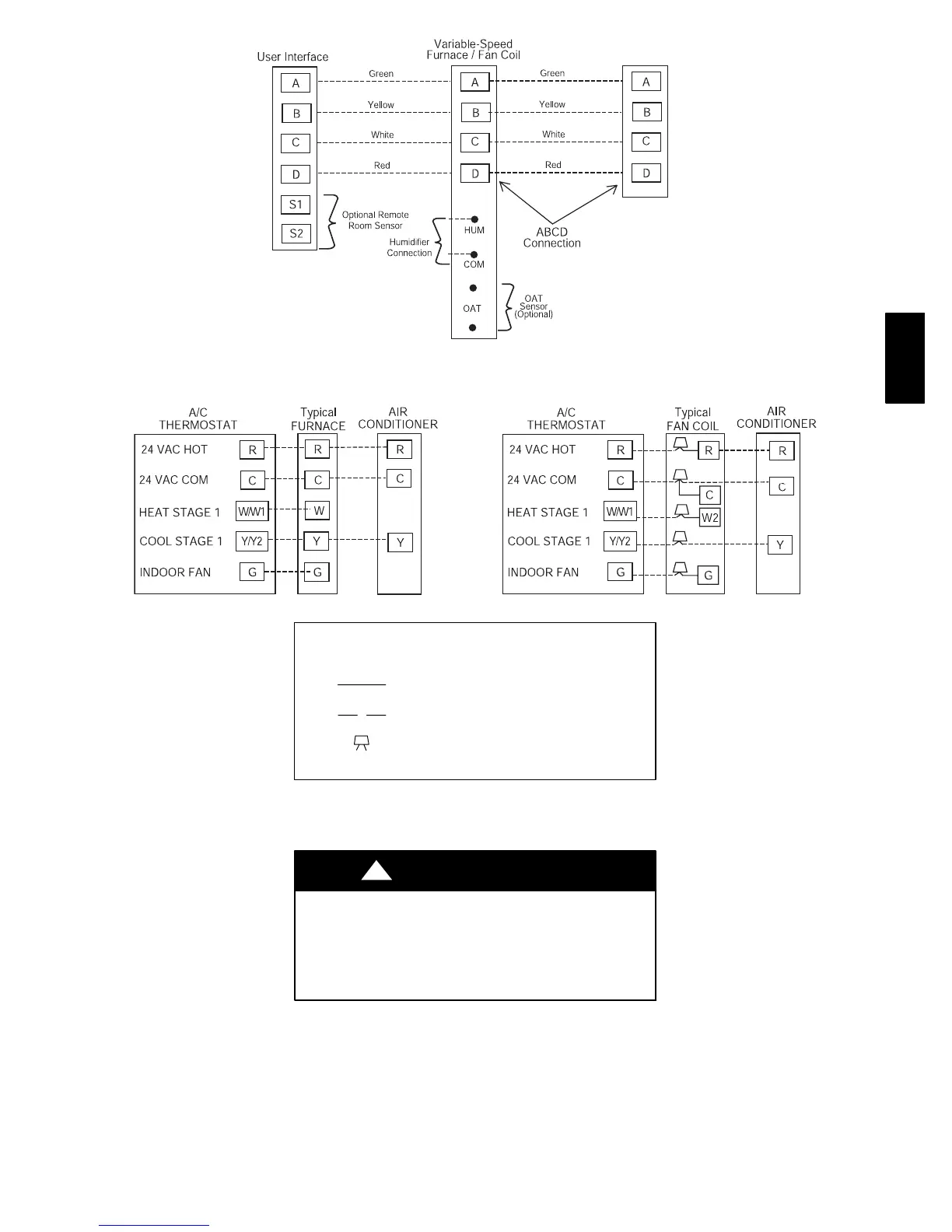

Fig. 14 --- Evolution Control Four--Wire Connection Wiring Diagrams
(See Thermostat Installation Instructions for specific unit combinations)
A06305
LEGEND
24--V FACTORY WIRING
24--V FIELD WIRING
FIELD SPLICE CONNECTION
A97368
Fig. 15 --- Non-- Communicating Standard Thermostat 3--Wire 24V Circuit Connections
(See Thermostat Installation Instructions for Specific Unit combinations)
ELECTRICAL OPERATION HAZARD
Failure to follow this caution may result in equipment
damage or improper operation.
A minimum of three wire thermostat wiring is
required for the system to operate.
CAUTION
!
163A / 165A
