Carton contains the following components. See Fig. 3 for programmable models or
Fig. 4 for non-programmable models:
1. Display Module
2. Stand - off for Equipment Control Module
3. Screws and pig tail
4. Equipment Control Module
A07757

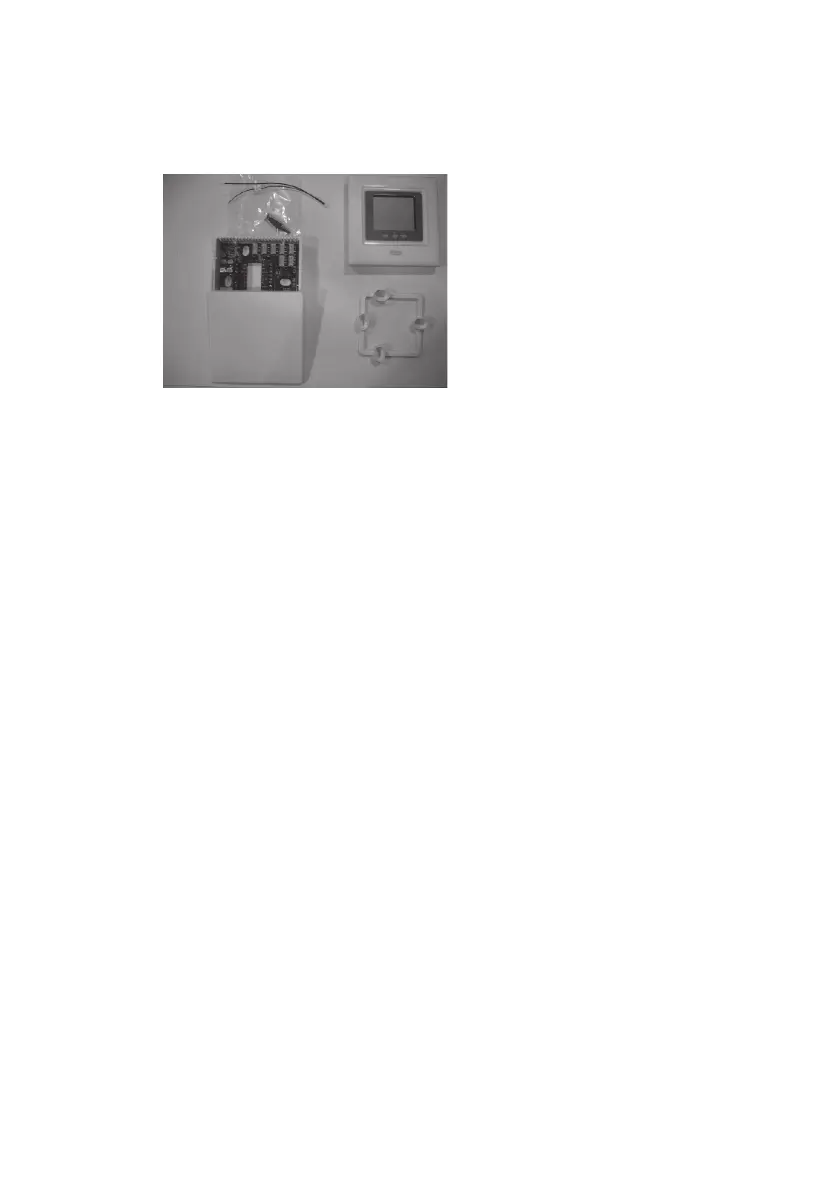

Fig. 4 - T6 - NAC / T6 - NHP01- A Carton Contents
1. Display Module
2. Stand - off for Equipment Control Module
3. Screws and pig tail
4. Equipment Control Module
AC/HP Control Location
AC/HP Control should be mounted:
