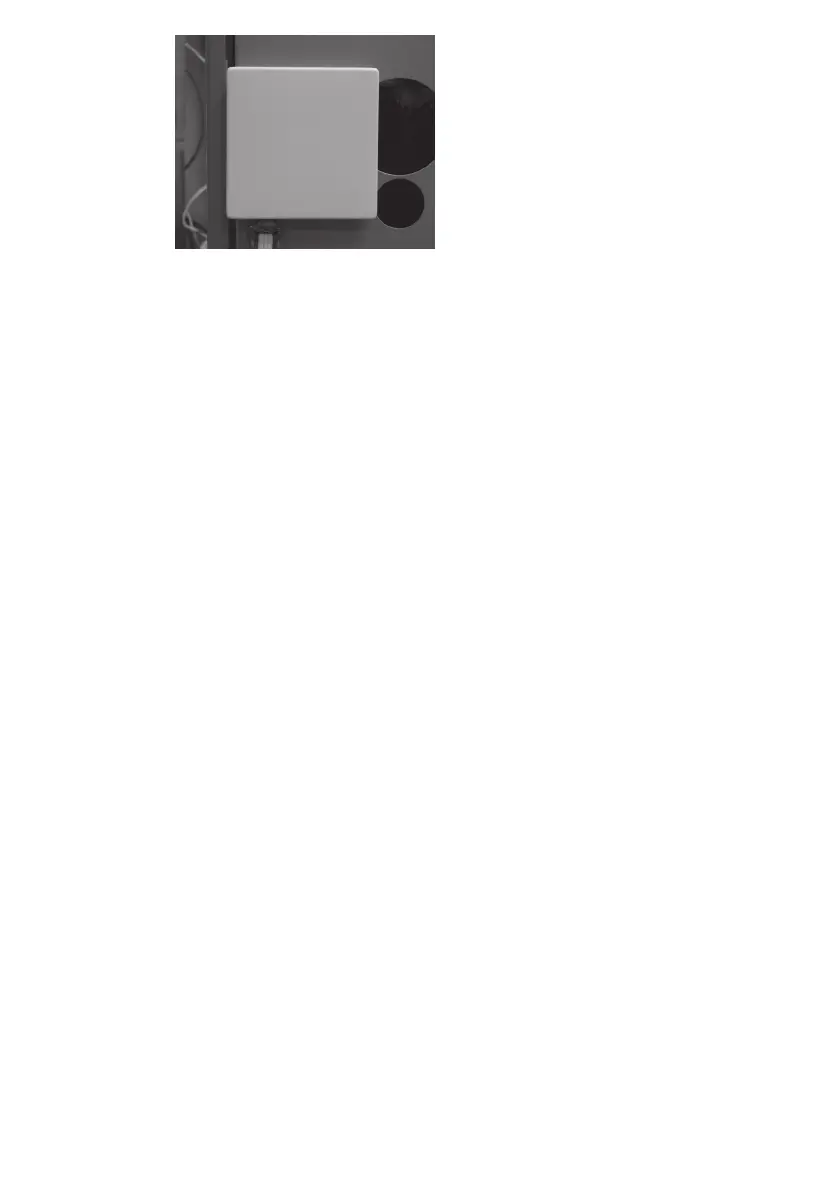

Fig. 14 - Cover on Equipment Control Module
14. Turn on power to equipment. On power up, all display segments will light
for 5 sec. For the next 5 sec a 2-digit code appears o n large display which
identifies AC/HP Control configuration. Refer to Option 33.
a. AC — 1-stage air conditioner, AC, with furnace or fan coil
b. HP — 1-stage heat pump, HP only with fan coil
c. H — heating only system, furnace only or fan coil with electric
heat only
d. C — cooling only system, AC with fan coil
e. H2 — 2-stage heat pump with fan coil
f. A2 — 2- stage air conditioner with fan coil or furnace
