Bryant Preferredt Series User Manual

21
A07219

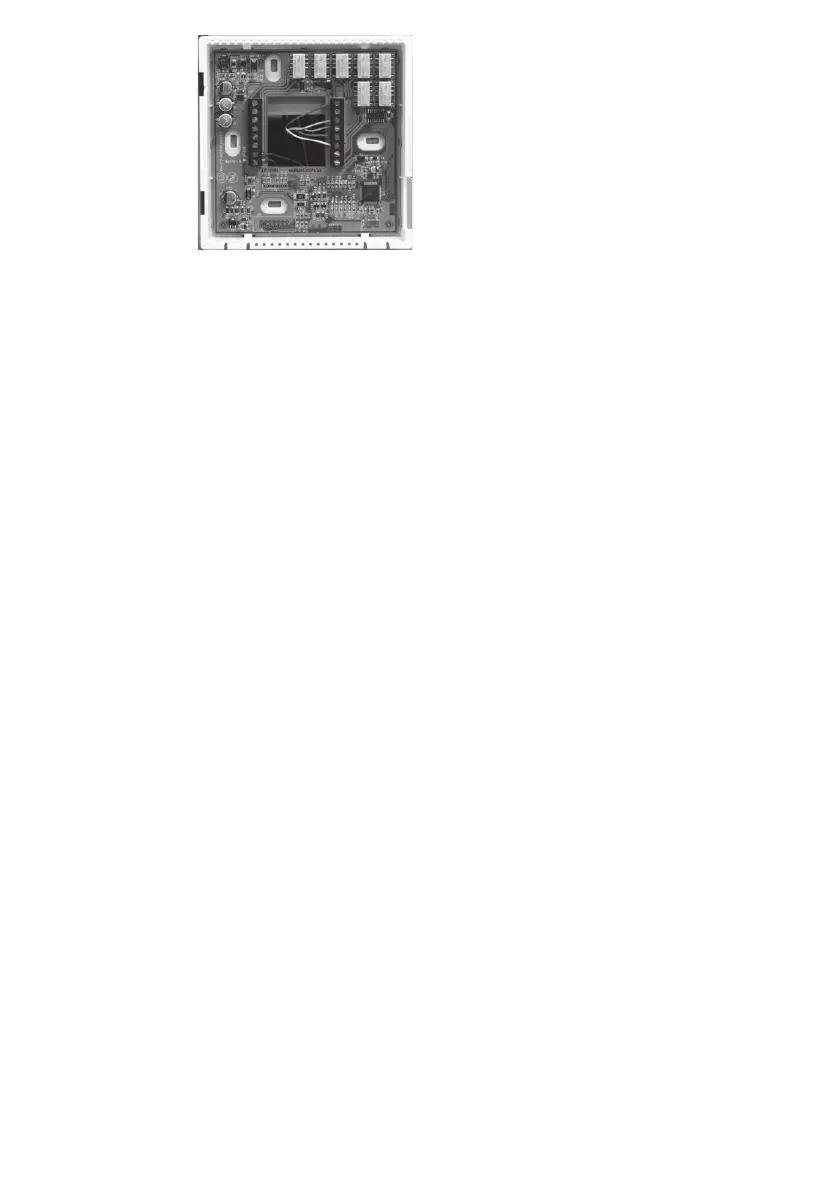

Fig. 15 - Equipment Control Module
5. Match and connect equipment wires to proper terminals of each connector
block.
6. Push any excess wire into wall and against Equipment Control Module. Seal
hole in wall to prevent air leaks. Leaks can affect operation and cause incor-
rect temperature and/or humidity measurement.
7. Remove 2- wire pigtail from thermostat mounting base and attach to Equip-
ment Control Module terminal block (terminals V+ and Vg). Attach 2-wire
pigtail to the back of the Display Module via 2 pin, keyed connector.
8. Reattach Display Module body to Equipment Control Module by first set-
ting on at top and then push bottom corners to snap into place. See Fig. 16.
