5
A07052

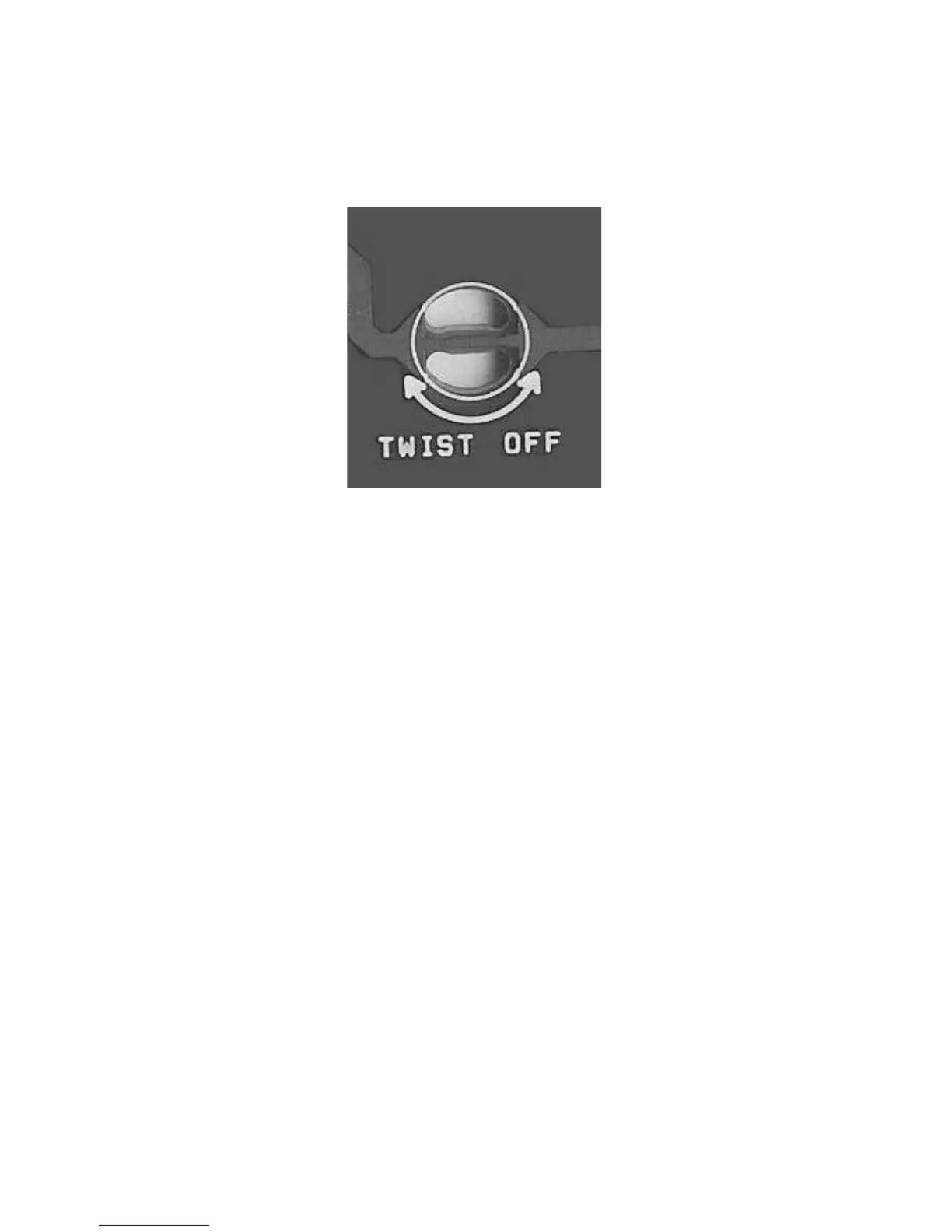

Fig. 1 − PCB Breakout Jumper
Models
There are programmable and non−programmable models for all applications.
They can be configured for AC or HP, 1−or 2−speed compressor, and for Hybrid
Heat installations, allowing it to be used in place of all Bryant thermostats.
Programmable Thermidistat Controls may be configured as non−programmable
if user desires.
Humidify Equipment and Connections
The humidify output connects directly to 24VAC operated humidifiers. No other
connection or interlock is required. Any of several installer−selectable operating
modes are available.
