BSi E Series - Bracket Operation: Height Adjustment; Glass Limitations

10/23
OWNER'S MANUAL & WARRANTY
BSI, LLC 601 East 64th Avenue, Bldg. A, Denver, CO 80229 800.662.9595 sales@bsidesigns.com bsidesigns.com
-
SERIES
AdjustaGuard
8

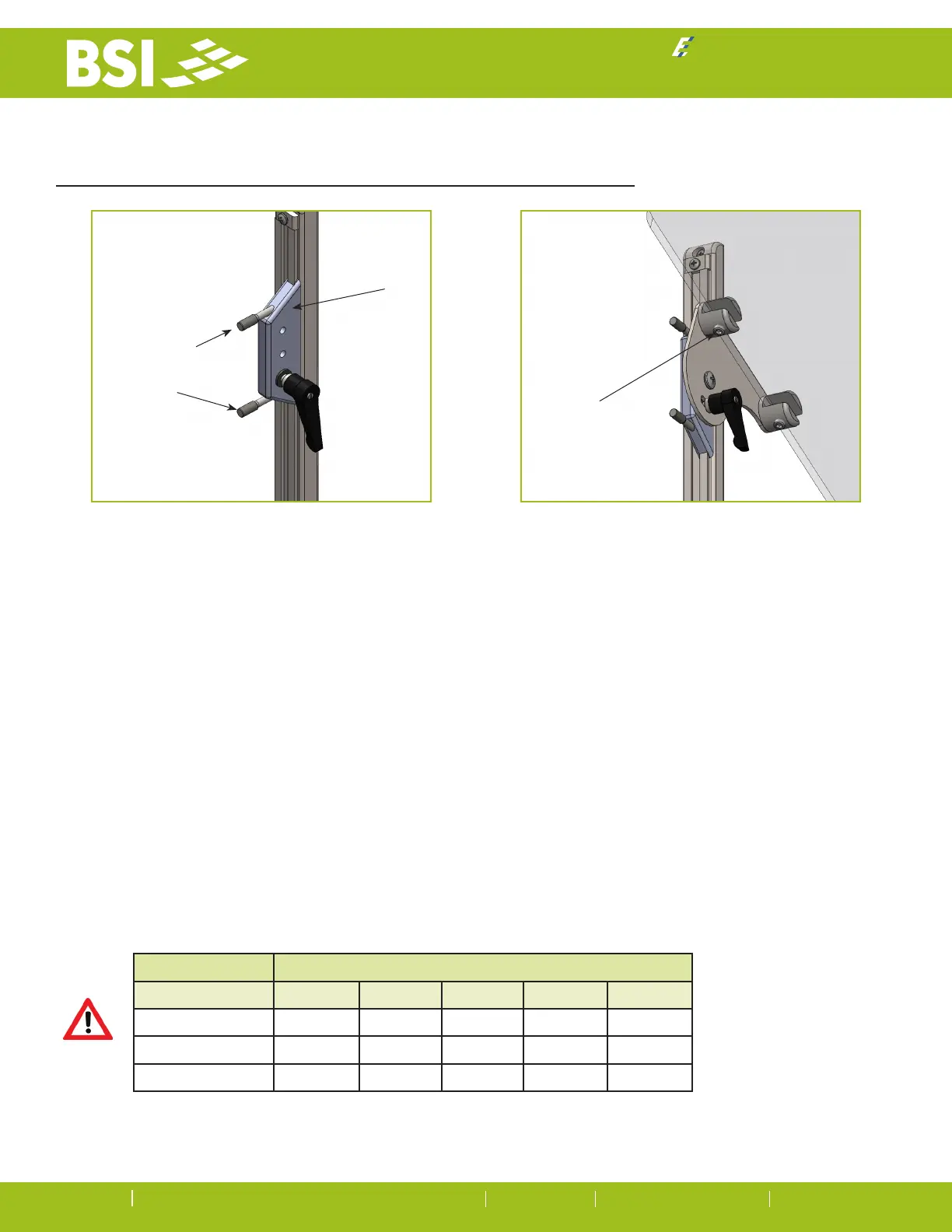

BRACKET OPERATION -
ADJUSTAGUARD HEIGHT ADJUSTMENT
1. While holding glass in place, slightly loosen the
thumb screws (2 per bracket). It is not necessary
to completely unscrew thumb screws to the
point of removal.
2. Move slider block up or down to desired location.
For longer units (50” or longer), BSI recommends
the use of two people when adjusting the glass
height.
3. Once the desired height is determined, tighten
each thumb screw. Do not overtighten the
thumb screws or you may cause damage to the
threads and/or bracket.
Note: Slider block is located at the top of the track
block when shipped. For best results, adjust slider
block to the middle of the track.
Thumb
Screws
Slider
Block
Using an allen wrench (provided by BSI), loosen
glass clip set screws on both brackets while
holding the glass.
Note: It is not necessary to remove set screws
from glass brackets. Removal will make
adjustments more difficult.
While holding glass, adjust glass in brackets to
desired position.
Equally tighten all glass clip set screws on both
sides, being careful not to overtighten. Tighten
periodically throughout life of sneeze guard.
Hex Screw
GLASS LIMITATIONS
Permissible Load (Pounds Per Square Feet)
Glass Thickness 12" Span 24" Span 36" Span 48" Span 60" Span
1/4" 73.5 lbs. 15.9 lbs. 5.3 lbs. 1.5 lbs. N/A
3/8" 196.7 lbs. 45.5 lbs. 17.5 lbs. 7.7 lbs. 3.2 lbs.
1/2" 345.4 lbs. 81.4 lbs. 32.6 lbs. 15.4 lbs. 7.5 lbs.
