13

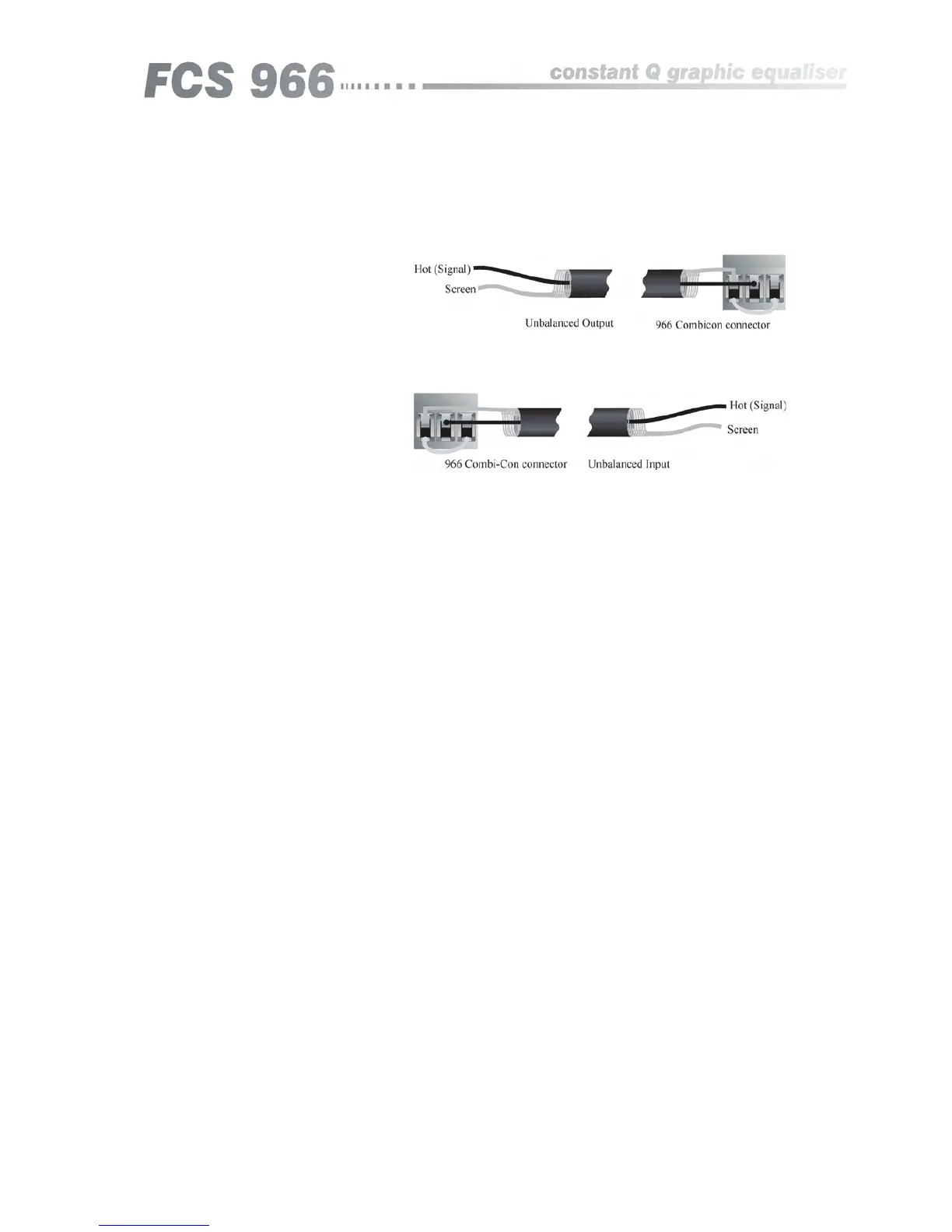

When feeding the FCS 966 from unbalanced sources, connect as follows. Note
the link between the two end pins.
Fig 5.11
When feeding the FCS 966 to unbalanced sources, connect as follows. Note
the link between the two end pins.
Fig 5.12
