BSV N-BSSALT - Electrical Wiring Diagram; 1- N-BSSALT Series Equipment

N-BSSALT V3.0 29 / 57
3.3- Electrical wiring diagram

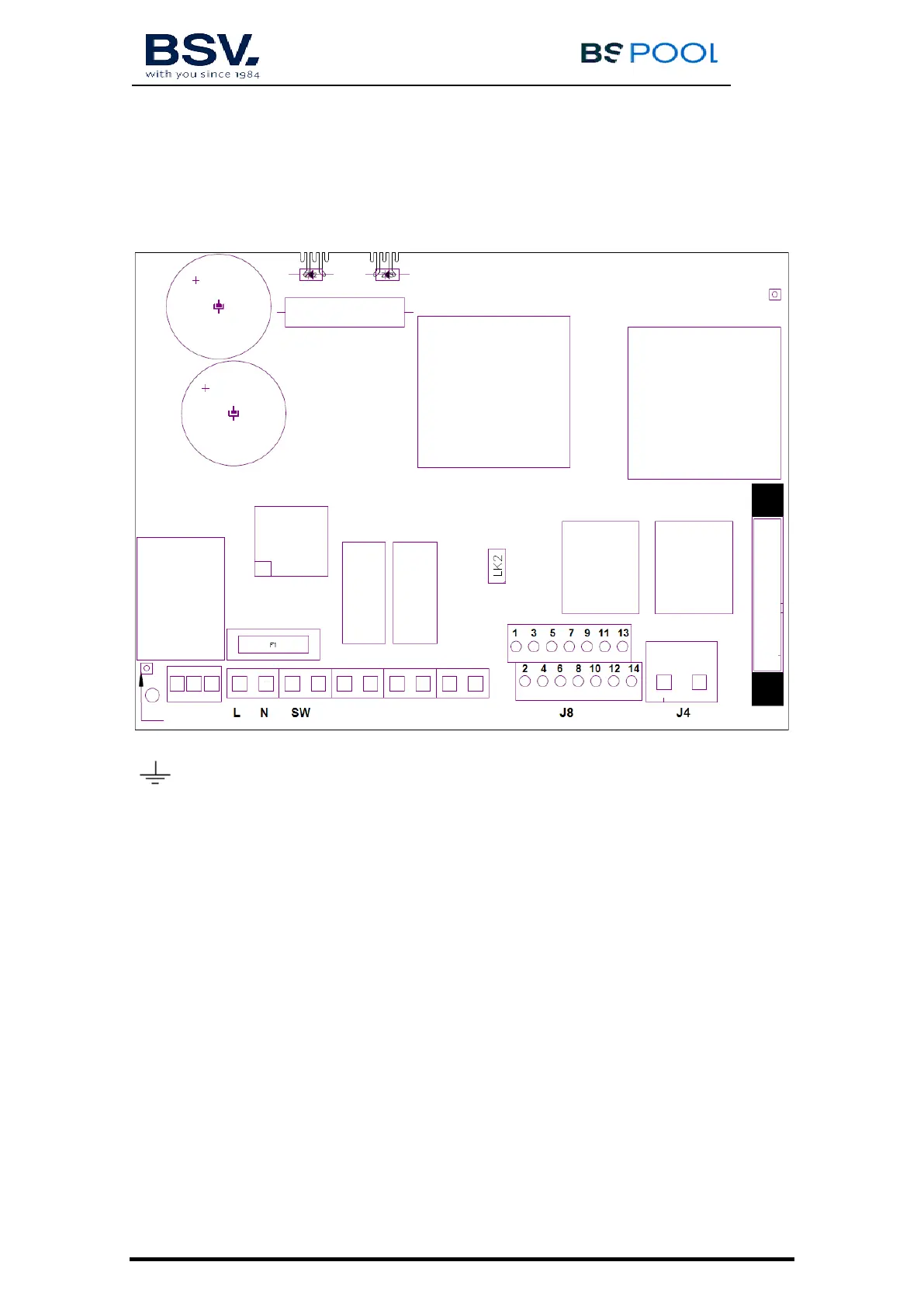

3.3.1- N-BSSALT series equipment
Earth connection
L, N: Supply 220v
SW: On / Off Switch
J4: Terminal block of cell
J8:
1- Unused 8- Unused
2- Unused 9- Unused
3- (purple) Cover 10- Unused
4- (purple) Cover 11- Unused
5- (white) Water sensor (white cable) 12- Unused
6- (white) External flow switch (5-6)* 13- Unused
7- Unused 14- Unused
F1: Fuse
LK2: Stop/Start jumper (see 3.3.2.1)
