BT Versatility Installation And Maintenance Manual

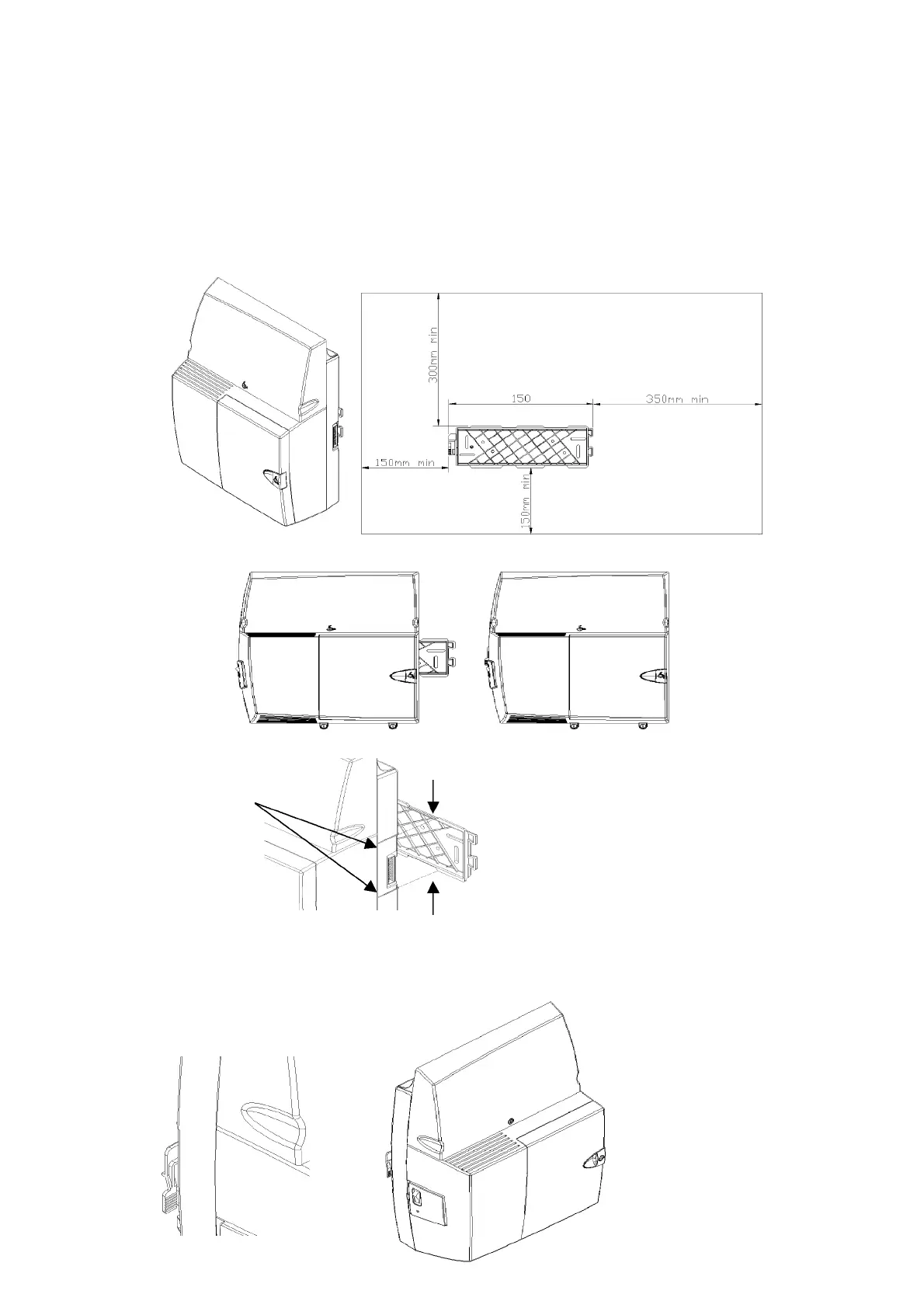

Mounting the CCU
The CCU is mounted on the bracket by sliding it on from the left hand side. The marks on
the side of the CCU must be lined up with the flanges on the wall bracket as shown below
before sliding the CCU into place. When you slide it fully to the right-hand side of the
bracket the CCU is automatically locked in place.
To remove the CCU depress the lock located on the left-hand side of the wall bracket.
Slide the CCU to the left to remove it from the bracket.
BT Versatility
Installation and Maintenance Manual
Installing the Central Control Unit
9
Flanges
Line marks up
with flanges
