Mounting the Backplane

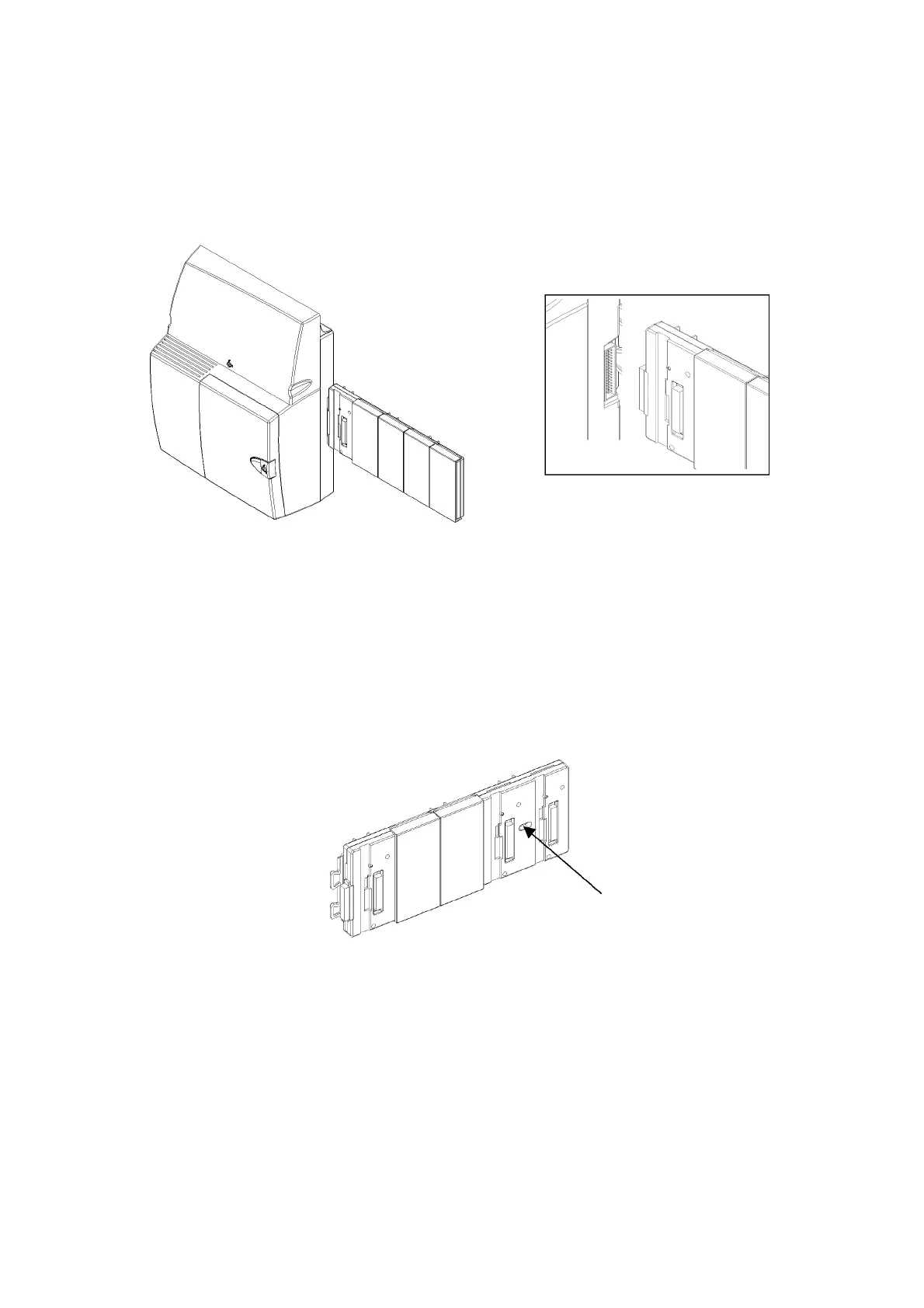

Slide the backplane on from the right hand side. Ensure the connector is fully mated
with the CCU.
Securing the backplane to the wall bracket
A mounting screw is used to securely locate the backplane on the wall bracket. This
provides additional rigidity to ensure the backplane and CCU connectors do not move.
Remove the fourth and fifth cover from the backplane.Locate the backplane on the
bracket and connect it to the CCU. The backplane must be fully connected to the CCU to
correctly locate the mounting screw hole. Insert the screw into the pillar on the bracket,
which can be seen through the backplane mounting screw hole.
BT Versatility
Installation and Maintenance Manual
System Expansion
12
Mounting screw hole
