EASYKIT Connected
11

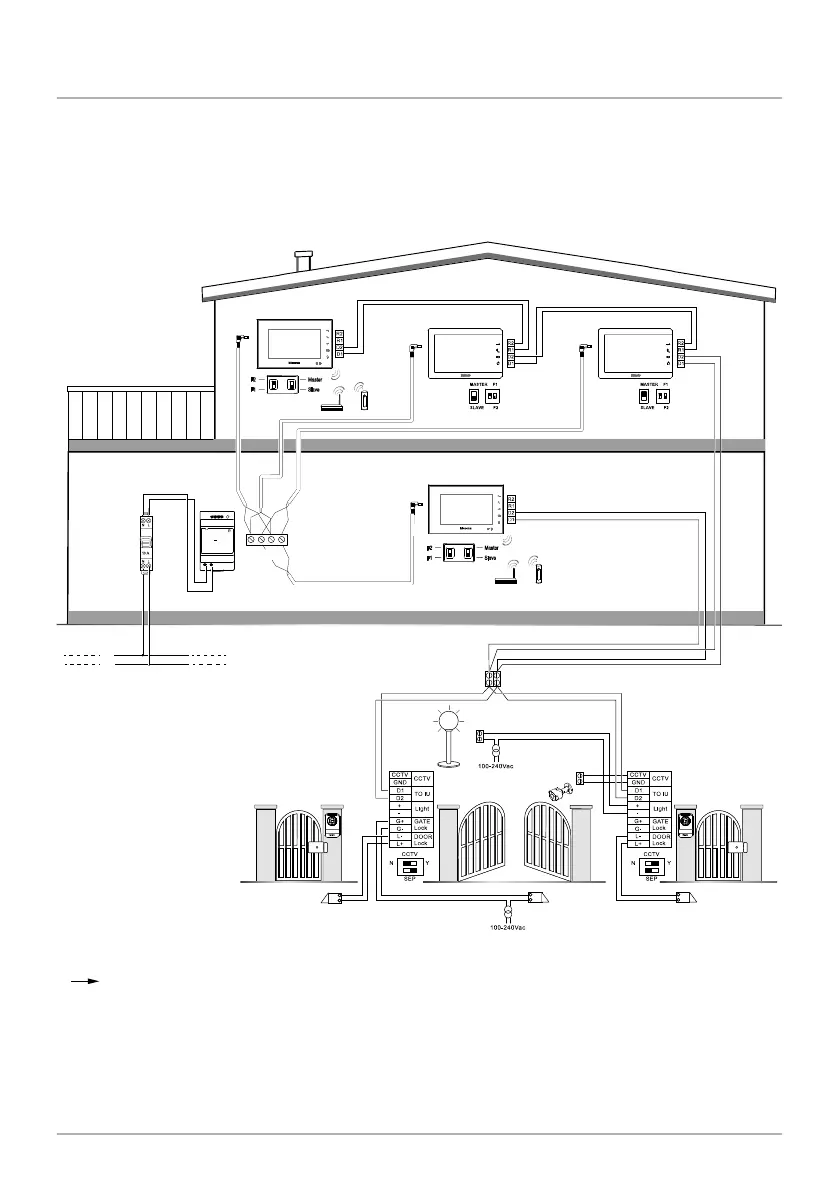

• Schema bifamiliare espanso
• Expanded two-family diagram
• Esquema bifamiliar extendido
• Διάγραμμα καλωδίωσης
διπλοκατοικίας
• Prošireni shematski prikaz za
dvije obitelji
• Shema za dva stana uvećana

• Skemë dy-familjare e zgjeruar
ADMD
ADMD
(
*
) (
*
) (
*
)
(
*
)
(
*
)
(
**
)
(
*
) (
*
)
NL
– V – V +V +V
Vo
ADJ
HDR-60-24
INPUT : 100 – 240VAC 1.8A 50/60Hz
OUTPUT : 24V / 2.5A
N
L
(
*
)
– V – V +V +V
(
*
)
(
*
)
(
*
)
(
*
)
A B
• Proteggere con interruttore
magnetotermico ≤ 10 A
• Protect with ≤ 10 A thermal
magnetic circuit breaker
• Proteger con interruptor
magnetotérmico 10 A
• Προστεύστε με ηλεκτροθερμικό
διακόπτη των 10 A
• Zaštiti magnetsko-termičkim
prekidačem od 10 A
• Zaštititi magnetnotermičkim
prekidačem od 10 A





10
• Mbrojeni me një çelës
magnetotermik prej 10 A.
• (*) Acquistabile separatamente. (* *) Distanza tra telecamera CCTV e SEP (posto esterno secondario): coassiale 100m
• (*) Can be purchased separately. (* *) Distance between CCTV camera and SEP (secondary entrance panel): coaxial 100m
• (*) A la venta por separado. (* *) Distancia entre telecámara CCTV y SEP (placa exterior secundaria): coaxial 100m
• (*) Πωλείται ξεχωριστά. (* *) Απόσταση μεταξύ CCTV κάμερας και SEP (δευτερεύουσα εξωτερική μονάδα): ομοαξονική 100m
• (*) Mogućnost zasebne kupnje. (* *) Udaljenost između CCTV kamere i SEP (sekundarne vanjske jedinice): koaksijalno 100 m
• (*) Može se kupiti zasebno. (* *) Razmak između CCTV telekamere i SEP-a (sekundarno vanjsko mjesto): koaksijalni 100 m
100SEP
• (*) Mund të blihet veçmas. (* *) Distanca midis telekamerës CCTV dhe SEP (vend i jashtëm dytësor): bashkëboshtor 100 m
A
B ≥ 15 m -
15
