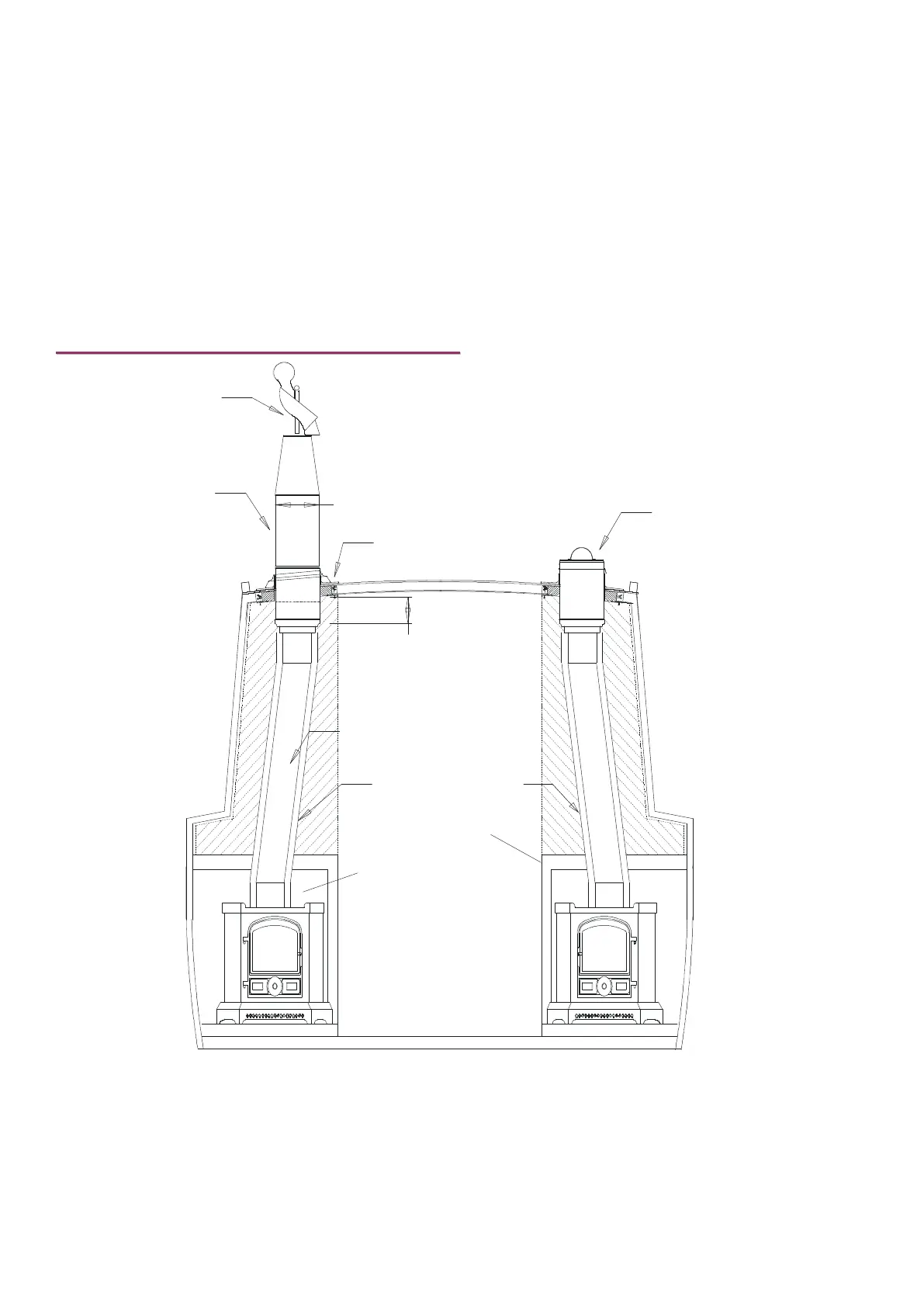

Bubble CORNER - General Layout of Typical Flue

14
DECK FLANGE ASSEMBLY
TERMINAL ITEM 9
SECONDARY FLUE
WEATHER CAP
150 MINIMUM
100mm PRIMARY FLUE
FIREPROOF BOARD
DIA 175
FIREPROOF FRAME
HEAT SHIELD
The primary flue pipe is fabricated from 4” O.D. tube with a minimum wall thickness of
3mm.
It must be fitted with a flue guard to cover the possibility of anyone touching it and to
comply with the distance from combustibles requirement.
The flue pipe will normally run at a slight angle to allow it to terminate through the ceiling,
in a suitable position.
(Max 8 deg from vertical.)
It is important to make sure that the flue pipe fits concentrically at both the stove end
and as it connects to the twin wall adaptor.
Always fit a rotary swinging cowl to the chimney terminal as illustrated in fig 4.
