Bucher C-LRV 175 - Travel Curve and Control Parameters Overview

C−LRV lift control valve Operation
66/92
300−I−9010212−E−10/08.08

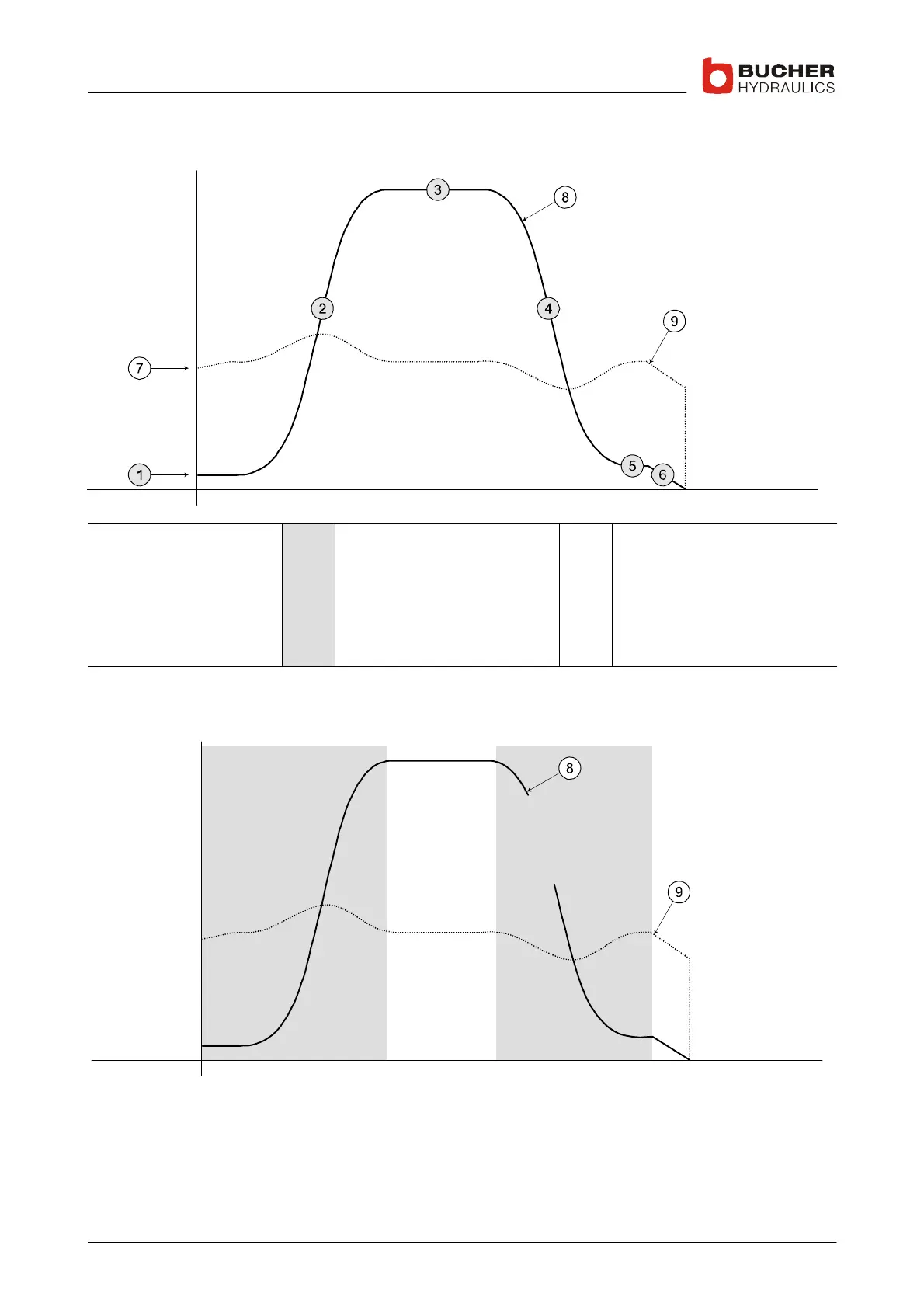

5.1.2 Overview of travel curve
Legend 1
2
3
4
5
6
7
Start speed
Acceleration
Fast speed
Deceleration
Slow speed
Soft−Stop (steepness)
Minimum pressure / offset sol.
8
9
Demand signal
Control voltage (prop. sol.)
5.1.3 Overview of control parameters (PID)
Dynamic
P sol. dynamic
I sol. dynamic
D sol
Static
P sol. static
I sol. static
D sol
Dynamic
P sol. dynamic
I sol. dynamic
D sol
