C−LRV lift control valve Operating controls and indicators
37/92
300−I−9010212−E−10/08.08

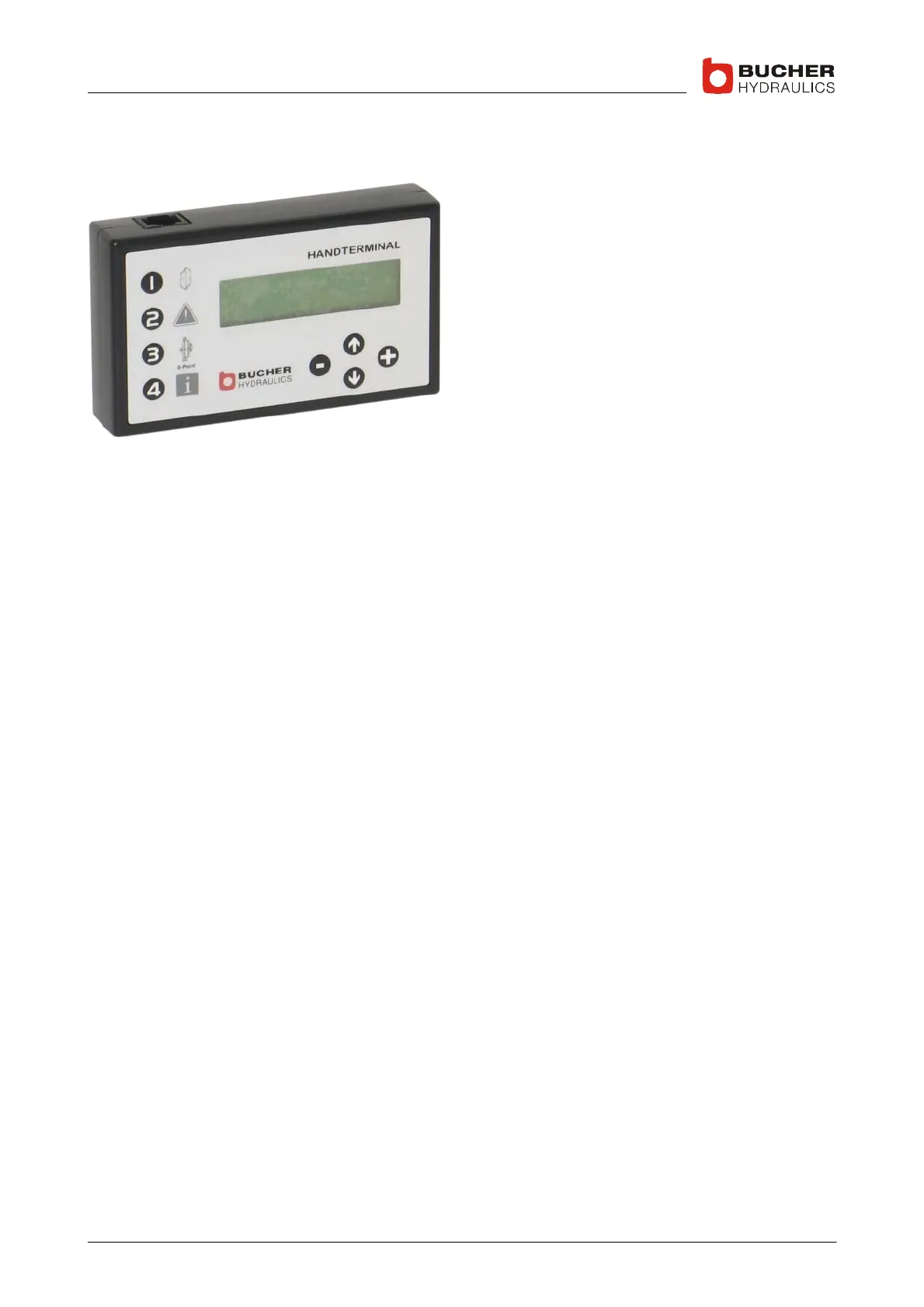

3.3 Handterminal
Keys
1 Demand values menu
2 Options menu
3 Null point display
4 Menu − Information
↑ Steps to previous parameter
↓ Steps to next parameter
+ Increases the value of the
current parameter
− Decreases the value of the
current parameter
General description
S Easy set−up of the travel curve
S Command, feedback value and control voltage are displayed during
travel
S Null−point adjustment
S Fault memory can be called up
Connection
S Connect the Handterminal to the C−DELCON using the cable
provided
S Connecting cable is standard Ethernet network cable
