Buchi B-295 SE - Installing the Exhaust Gas Hose; Installing the Solvent Receiving Vessel

BÜCHI Labortechnik AG Installation | 5
Operation Manual Inert Loop B-295 SE 21/38

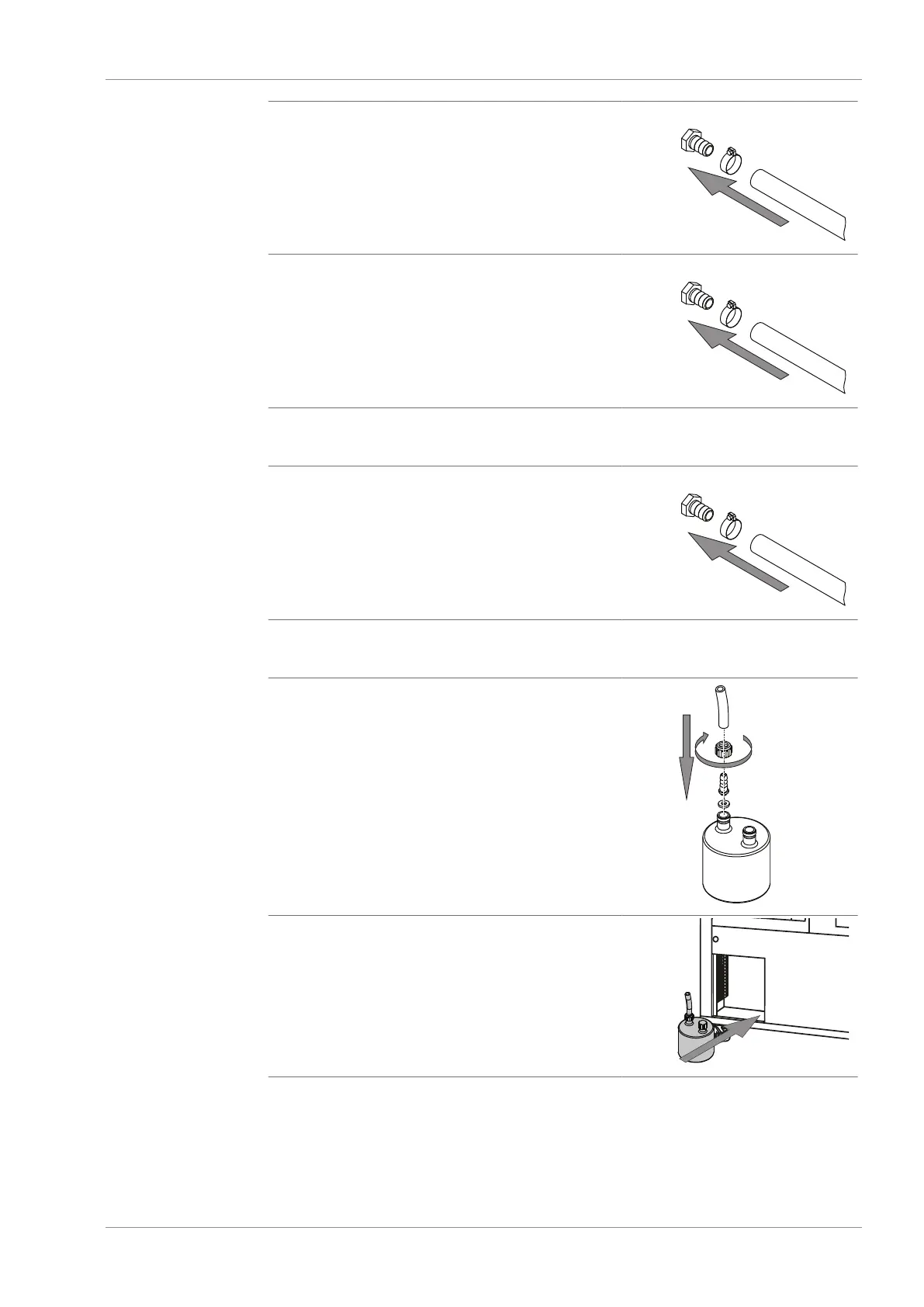

u Install the process gas tube with gas from
BUCHI instrument onto the connection
marked IN.
u Attach the tube in place with a hose clamp.
u Install the process gas tube with direction to
the BUCHI instrument onto the connection
marked OUT.
u Attach the tube in place with a hose clamp.
5.6 Installing the exhaust gas hose
u Install the exhaust tube onto the exhaust con-
nection.
u Attach the tube in place with a hose clamp.
u Place the other end of the tubing to a fume
hood.
5.7 Installing the solvent receiving vessel
u Put the PTFE hose connection on the bottle.
u Put the solvent receiving vessel in place.
