Glass Oven B-585

5.4 Operation of the B-585 Kugelrohr

Please ensure that the device has been correctly put into opera-

tion according to Chapter 4, Putting into operation

5.4.1 Operational and display elements

Unit sockets with main fuses

b Main power switch

c Digital display showing the current temperature

d Multifunction botton for setting the desired oven tem-

perature and the rotation speed

e Pilot display for heating

f Lever used to open the iris diaphragm

g Glass ball cooling apparatus

h Glass cook for aeration

i Drive unit for rotating the glass ball

j Lever for setting the angle of the oven

k Holder for the save contact of the furnace

l Lever for adjusting the vapour duct

m Start

n Stop

5.4.2 Kugelrohr / Distillation

The glass oven can be used for two types of distillation: single

distillation and fractional distillation. The fractional distillation

is a bulb to bulb distillation that uses three of four bulbs and

bulb cooling. The single distillation may be done either as a

bulb to bulb distillation using two bulbs and bulb cooling, or

with a condenser with a cooling coil and a collection ﬂask,

In this latter application, the glass oven may be viewed as a

small rotary evaporator. Common to all three types of distil-

lation is the fact that they all work using the bulb-tube drive.

Bulb to bulb distillation uses a tube that consists of as many

bulbs as there are components in the mixture.

5 Operation

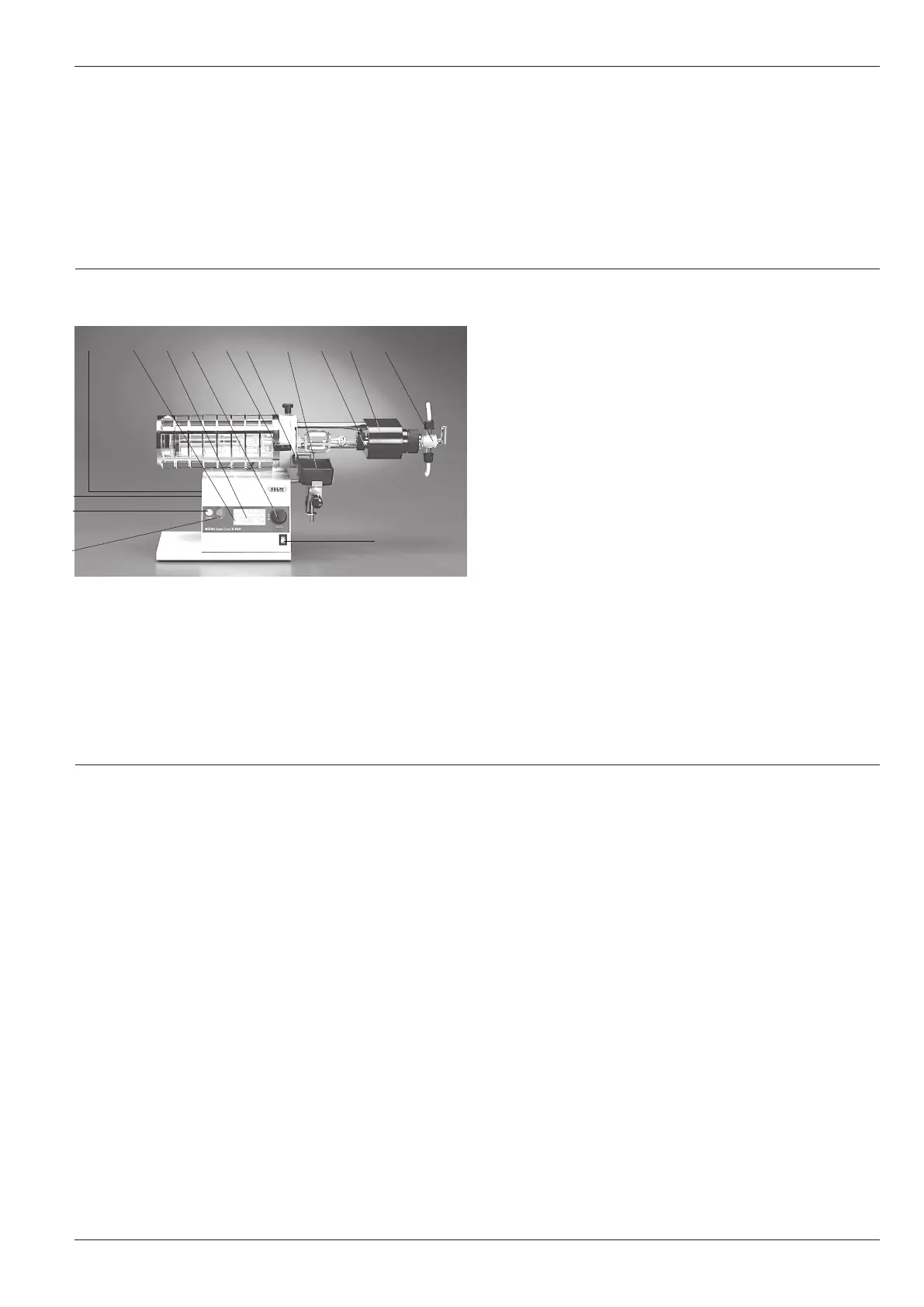

Fig. 17: B-585 Kugelrohr
